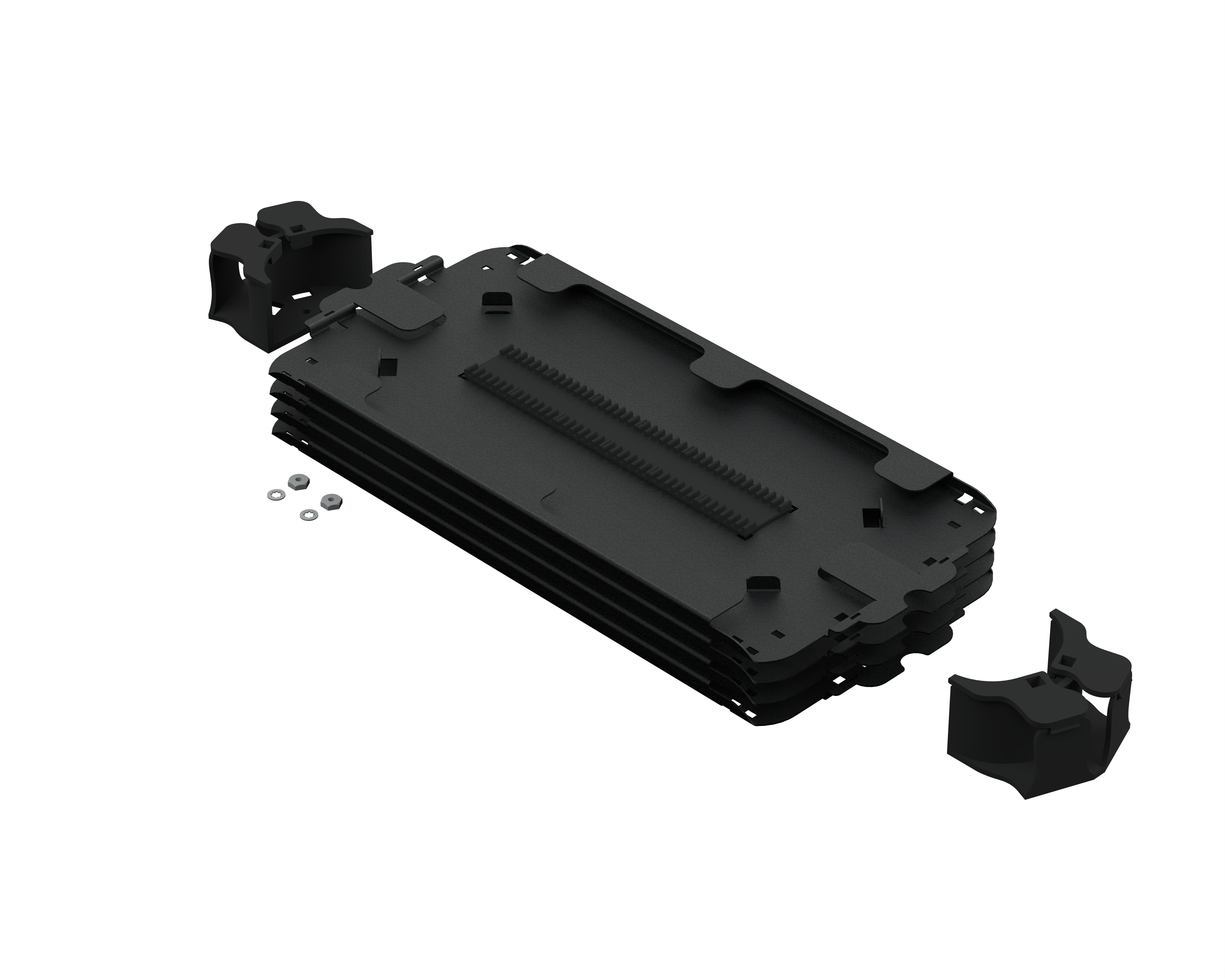

XHD SPLICE TRAY KIT FOR 144F
XHD SPLICE TRAY KIT FOR SINGLE FIBER SPLICING, 144F, BLACK FINISH, 4 x 36F SPLICE TRAYS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.4 lbs |
|---|---|
| Overall Height | 1.47 in |
| Overall Width | 15.92 in |
| Overall Length | 5.5 in |
Physical Specifications
| Max Capacity | 144 F |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -10°C To +60°C |
Product Material
Materials
| Description | Material |
|---|---|
| Splice Tray | Aluminum |
| Spool | Polypropylene |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | 2 x Nut, 2 x Lock Washer, 2 x Spool, 4 x Splice Tray |
|---|
Product Notes
| Packaging | Individually packaged in a cardboard box. |
|---|---|
| Notes | For more information, please refer to our web site at http://www.belden.com . |
History
| Update and Revision | Revision Number: 0.10 Revision Date: 03-11-2026 |
|---|
