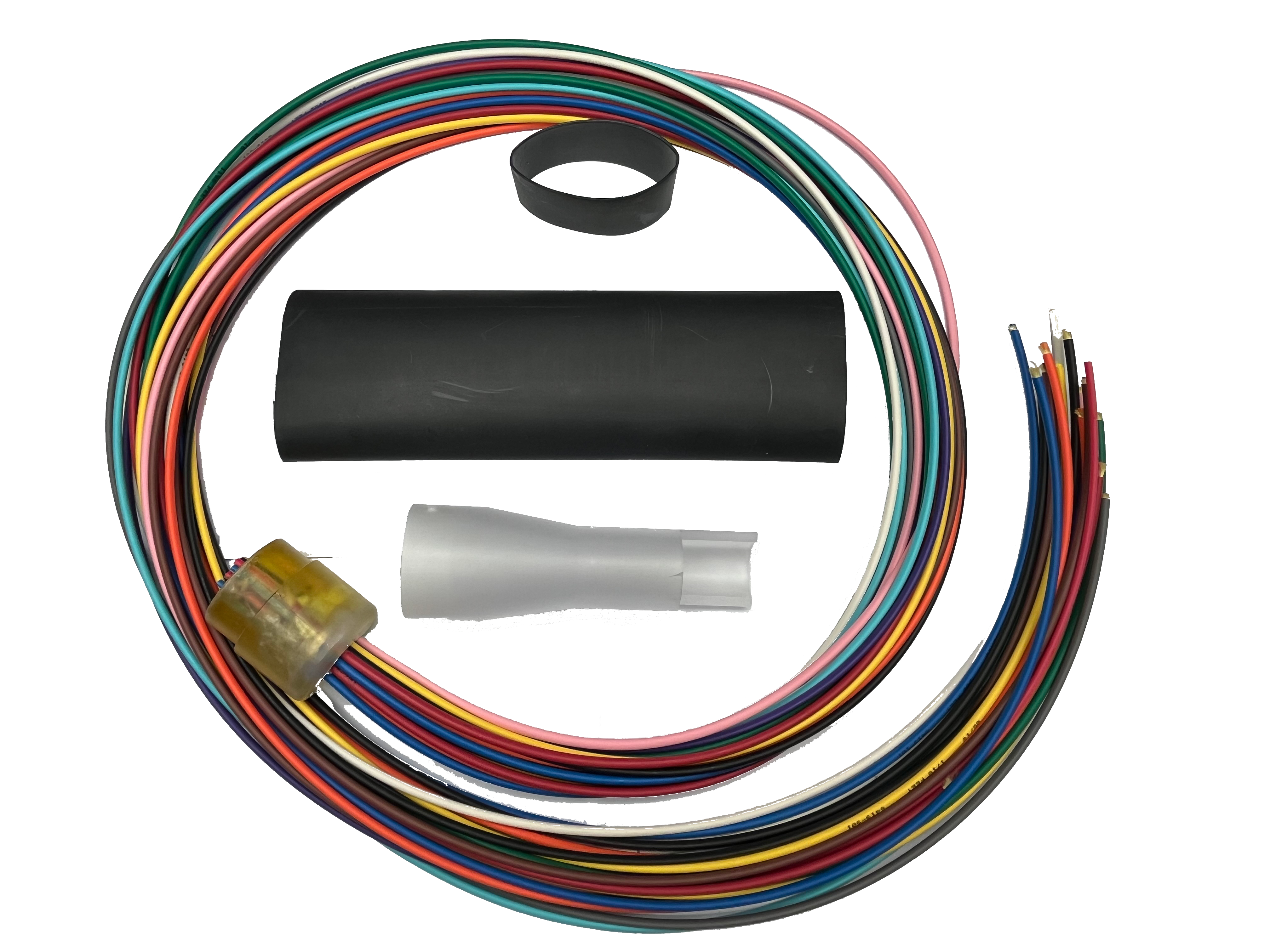

Breakout Kit, Up to 288 Fibers Flex Ribbon Cable
Breakout Kit, up to 288 Fibers, 24 tubes, 12 x 250um fibers per tube. For cables with max OD up to19 mm.
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
AX110247 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| AX110247 | Black | 611589310260 | Order online |
Specifications
Construction
| Weight | 0.522 lbs |
|---|
Assembly Cable
| Cable Nominal OD | 1.1 m x 3.0 mm |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -10°C To +60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Breakout Kit | Black | Up to 288 Fiber bundle unitube cable breakout kit with 12 color coded tubes | |
| Body Break Out Kit | Onyx | White | Maximum 108 mm X 34.9 mm |
| Heat shrink | Plastic | Black |
Related Part Numbers
| Included Parts | Cable body, breakout body, and adhesive shrink tubing |
|---|
Product Notes
| Packaging | Product Individually packaged in a transparent polybag. |
|---|
History
| Update and Revision | Revision Number: 0.37 Revision Date: 10-23-2025 |
|---|
