Breakout Kit, Up to 144 Fibers Flex Ribbon Cable
Breakout Kit, up to 144 Fibers, 12 tubes, 12 x 250um fibers per tube. For cables with max OD up to 18.5 mm.
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
AX108775 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| AX108775 | Black | 611589258708 | Order online |
Specifications
Construction
| Weight | 0.278 lbs |
|---|
Assembly Cable
| Cable Nominal OD | 1.3 m x 3.0 mm |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -10°C To +60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Breakout Kit | Black | Up to 144 Fiber bundle unitube cable breakout kit with 12 color coded tubes | |
| Body Break Out Kit | Onyx | Black | Maximum 115 mm X 29.0 mm |
| Body Break Out Kit | Plastic | Black | Maximum 114 mm X 29.2 mm |
| Heat shrink | Plastic | Black |
Related Part Numbers

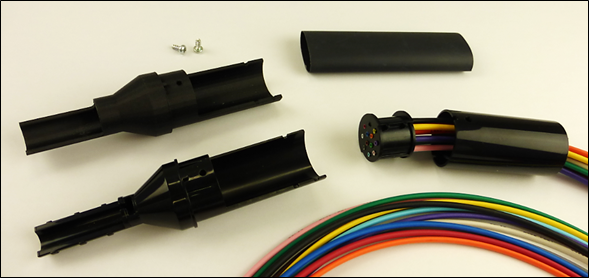

| Included Parts | Cable body, 2 x breakout body, cable cover, screws and adhesive shrink tubing |
|---|
Product Notes
| Packaging | Product Individually packaged in a transparent polybag. |
|---|
History
| Update and Revision | Revision Number: 0.43 Revision Date: 03-30-2026 |
|---|
