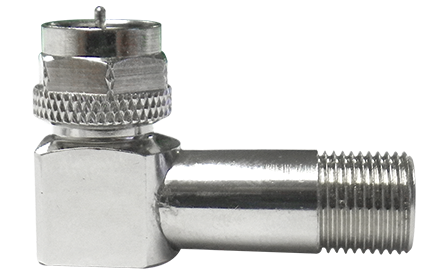

RIGHT ANGLE F81 ADAPTER, SIGNALTIGHT, FITS ANY EX SERIES F CONNECTOR
RIGHT ANGLE ADAPTER, SIGNALTIGHT, FITS ANY EX SERIES F CONNECTOR Fits Any F Connector, Sold as Packages of 1
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Adapter, Drop, Premises, CCTV, Security Cameras, Video |
|---|
Electrical Characteristics
Impedance
| Nominal Characteristic Impedance | 75 Ohm |
|---|
Temperature Range
| Operating Temperature Range | -40C to 60C |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | No |
Related Part Numbers
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
|---|
Product Notes
| Notes | Meets SCTE IPS-TP-013 when paired with PPC approved products (Red-dye moisture migration test) |
|---|
History
| Update and Revision | Revision Number: 0.44 Revision Date: 10-28-2025 |
|---|
