ProSNS RG11 Universal F Male Plenum Compression Connector
ProSNS RG11 Universal F Male, plenum compression connector, polymer compression sleeve for easy insertion & lowest possible tool compression force. Features a patented internal O-Ring at the base for a free-spinning nut. 25 per Pack. This product is discontinued. Please contact Belden Customer Service to check for existing saleable inventory. It has been replaced by one of Belden's PPC Brand EX Series connectors - EX11N716PLPLUS. For product information please visit: https://products.ppc-online.com/product/signaltight-ex11n716plplus/
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
716SNS1P11PL-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 716SNS1P11PL-25 | Gray | 612825399810 | Order online |
Specifications
Product Overview
| Suitable Applications | CATV, Video Distribution, RF Applications |
|---|
Physical Characteristics (Overall)
| Packaging | 25 Pack |
|---|---|
| Number of Pieces | 1 |
Connectors
Materials
| Description | Material |
|---|---|
| Nut | Nickel/Tin Plated Brass |
| O-Ring | Ethylene Propylene |
| Body | Nickel/Tin Plated Brass |
| Contact | Gold Plated |
Electrical Characteristics
| Electrical Characteristics Notes | Meets or exceeds SCTE specifications. |
|---|
Impedance
| Nominal Characteristic Impedance | 75 Ohm |
|---|
Return Loss
| Frequency [MHz] | ≥-30 dB up to 1 GHz typical |
|---|
Temperature Range
| Operating Temperature Range | -40°F (-40°C) to 140°F (60°C) |
|---|
Mechanical Characteristics
| Connector System Compatibility | Coax |
|---|---|
| Connector Interface Type | F |
| Gender | Male - plug |
| Connector Series Name | ProSNS |
| Color Band | Gray |
| Locking | No |
| Tool Compatibility | CPLCCT-LS59/11 or SNSUNI (compression), PS11 (strip) |
| Termination Type | Compression |
| Cable Center Conductor Diameter Limits | .0634 - .0647 inch |
| Cable Dielectric Diameter Limits | .274 - .294 inch |
| Cable Outer Jacket Diameter Limits | .339 - .355 inch |
| Cable Insertion Force | 20 lbf |
| Cable Retention Force | 40 lbf |
Standards
| RG Type | 11 |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor/Outdoor |
|---|---|
| EU CE Mark | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | Yes |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Related Part Numbers
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
|---|
Product Notes
| Notes | Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007, RFI Shielding: -85 dB (60% bonded foil) |
|---|
History
| Update and Revision | Revision Number: 0.138 Revision Date: 02-20-2026 |
|---|
Resources
Related f connectors
716SNS1P11H-25
ProSNS RG-11 Universal "F" Coax Compression Connector 7/16" Hex Head
716SNS1P11HQ-25
ProSNS RG-11 Universal "F" Coax Compression Connector 7/16" Hex Head
90SNS1P11H
ProSNS RG-11 Universal "F" Right Angle Coax Compression Connector

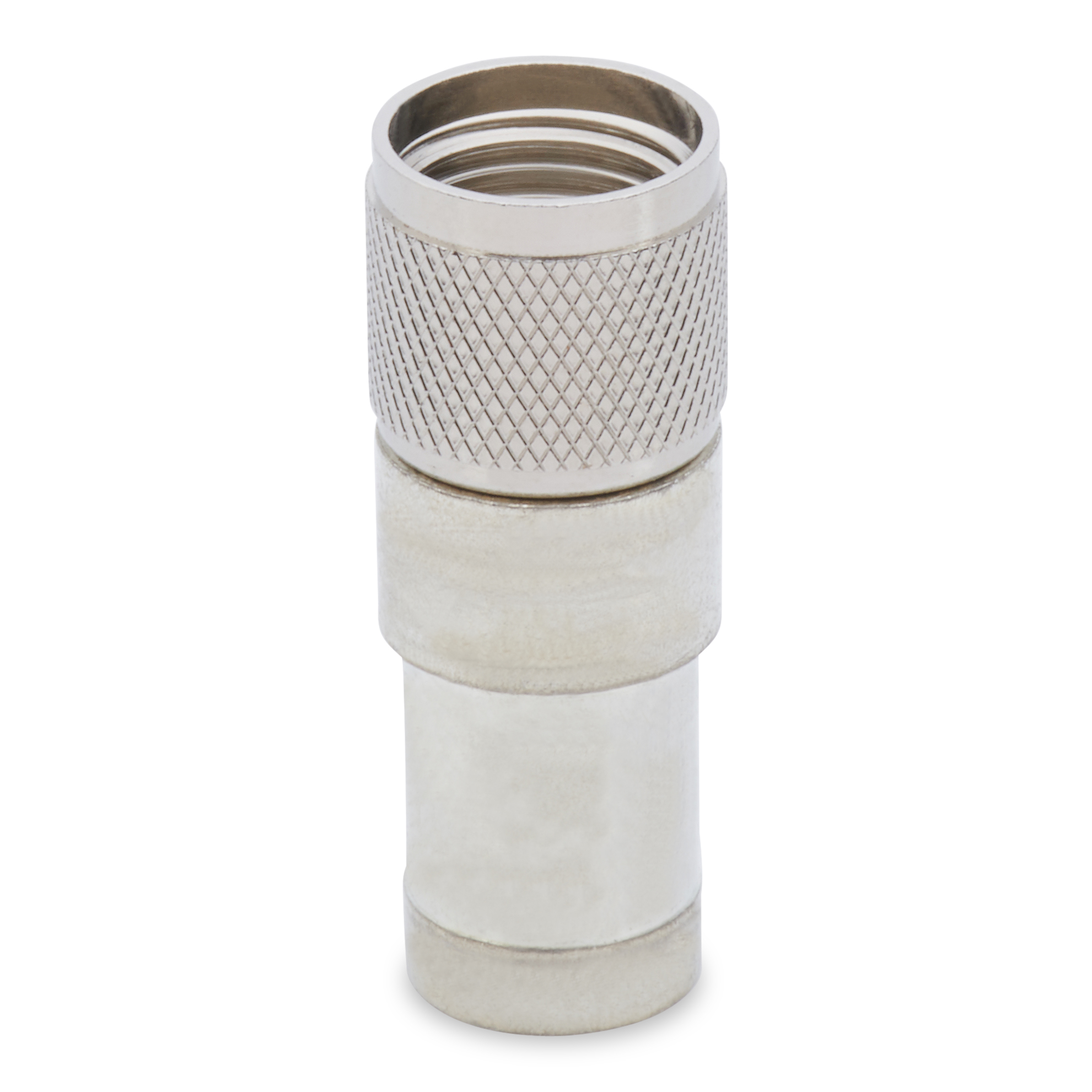

DB58UHF
