Product Number: FS11V-25

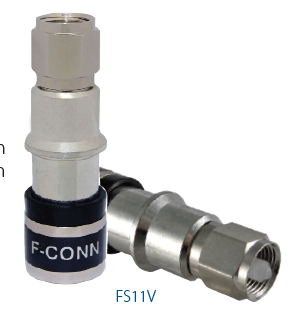

ProSNS RG-11 Universal "F" Coax Compression Connector

ProSNS RG11 Universal "F" male connector, non-blind entry with polymer compression sleeve for easy insertion & lowest possible tool compression force. This will fit most standard or quad-shield RG11 cables. 25 per Pack

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

FS11V-25 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
FS11V-25	No Color	845671000740	Order online

Specifications

Product Overview

Suitable Applications	CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging	25 Pack
Number of Pieces	1

Connectors

Materials

Material
Nickel/Tin Plated Brass
Tin Plated Brass
Ethylene Propylene
Nickel/Tin Plated Brass
Gold Plated

Electrical Characteristics

Electrical Characteristics Notes	Salt Fog: Passes 1,000 hours ANSI/SCTE 143 2007, Moisture Migration: Passes ANSI/SCTE 60 2010, RFI Shielding: -85 dB typical (60% bonded foil), Insertion Loss: < -0.2 dB up to 1 GHz typical

Impedance

Nominal Characteristic Impedance	75 Ohm

Return Loss

Frequency [MHz]	-30 dB up to 1 GHz typical

Temperature Range

Operating Temperature Range	-40 oF (-40 oC) to 140 oF (60 oC)

Mechanical Characteristics

Connector System Compatibility	Coax
Connector Interface Type	F
Gender	Male - plug
Connector Series Name	ProSNS
Color Band	Black
Locking	No
Tool Compatibility	CPLCCT-SS59/11 (compression), PS11 (strip)
Termination Type	Compression
Cable Center Conductor Diameter Limits	.0634 - .0647 inch
Cable Dielectric Diameter Limits	.280 - .294 inch
Cable Outer Jacket Diameter Limits	.390 - .417 inch
