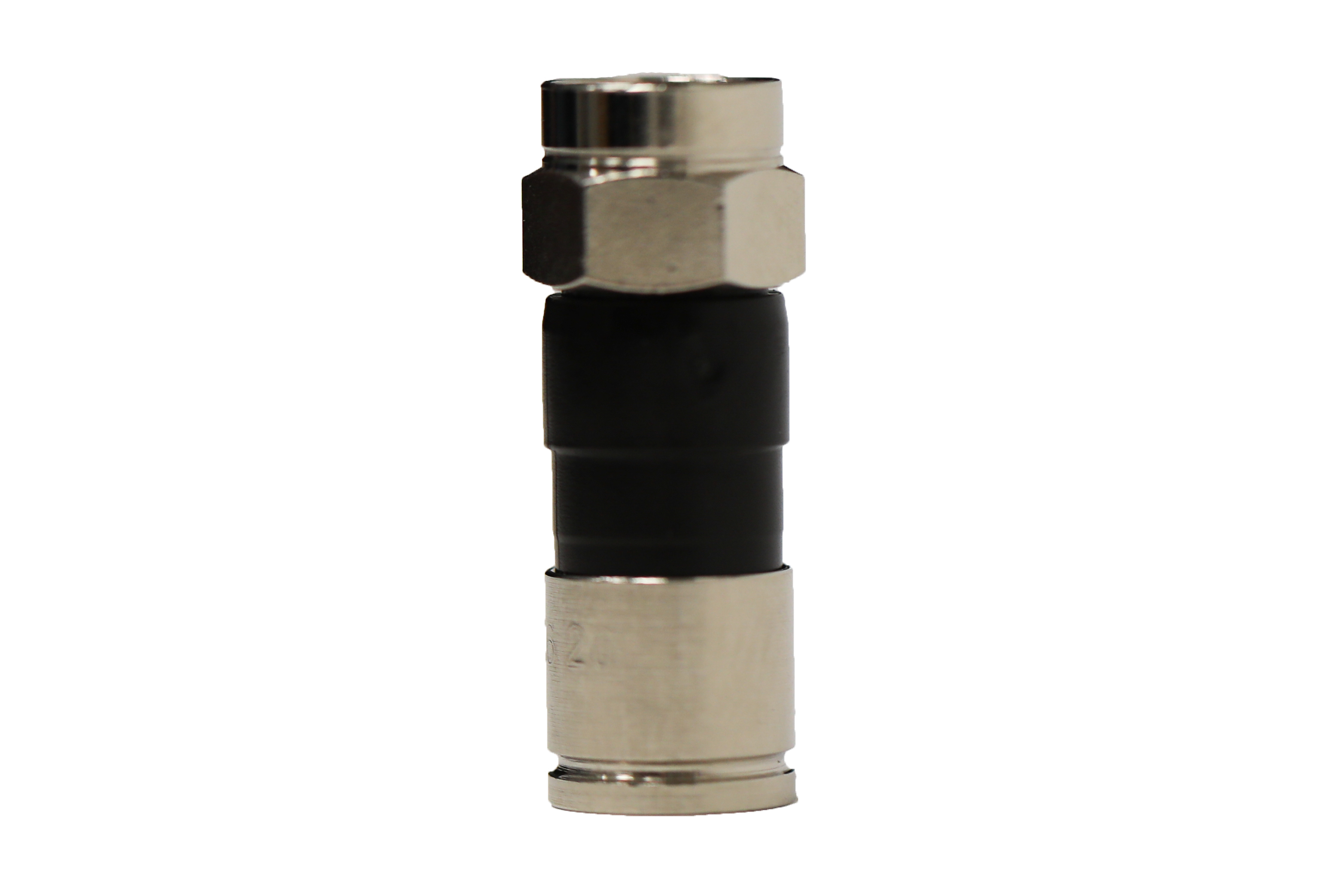

EX SERIES RG6 UNVERSAL F COAX UNIVERSAL COMPRESSION CONNECTOR
EX SERIES RG6 UNVERSAL F COAX UNIVERSAL COMPRESSION CONNECTOR, Fits 60% through Quad Shield Coax, Connectors sold as Packages of 50
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Drop, Series 6, Indoor, Premises, CATV, Video Distribution, RF Applications |
|---|
Electrical Characteristics
| Return Loss Table Notes | Rated Frequency: 0 - 3000 MHz |
|---|---|
| High Frequency Table (Nominal/Typical) Notes | Rated Frequency: 0 - 3000 MHz |
| High Frequency Table Notes | Rated Frequency: 0 - 3000 MHz |
| Voltage Rating Table Notes | Rated Frequency: 0 - 3000 MHz |
Impedance
| Nominal Characteristic Impedance | 75 Ohm |
|---|
Standards
| RG Type | 6 |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | No |
Related Part Numbers
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
|---|
Product Notes
| Notes | Rated Frequency: 0 - 3000 MHz, Waterproofing - per ANSI/SCTE 60 2015 |
|---|
History
| Update and Revision | Revision Number: 0.202 Revision Date: 02-11-2026 |
|---|
Resources
Related f connectors

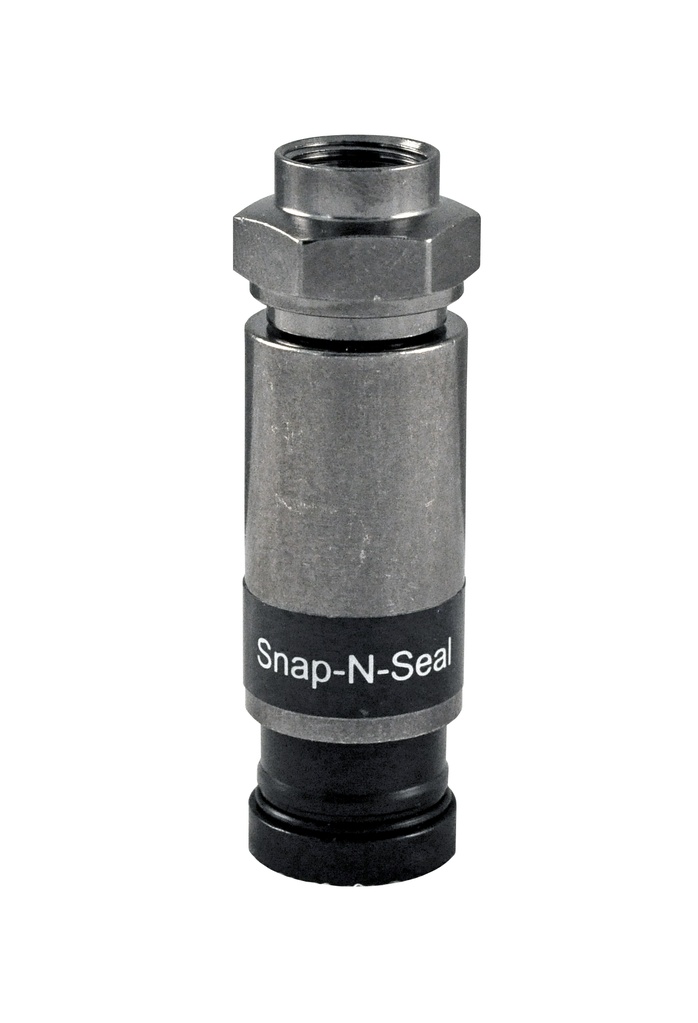

716SNS1P11H-25
ProSNS RG-11 Universal "F" Coax Compression Connector 7/16" Hex Head
1 item

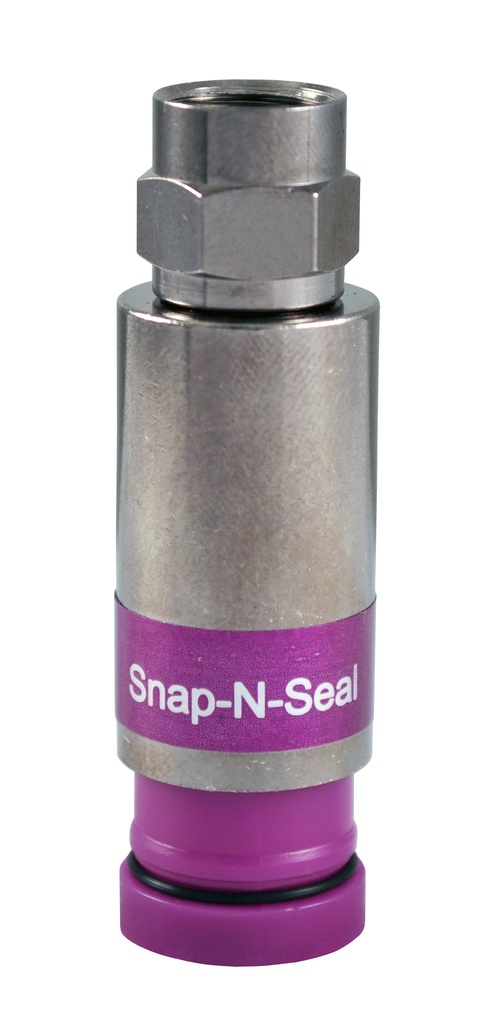

716SNS1P11HQ-25
ProSNS RG-11 Universal "F" Coax Compression Connector 7/16" Hex Head
1 item

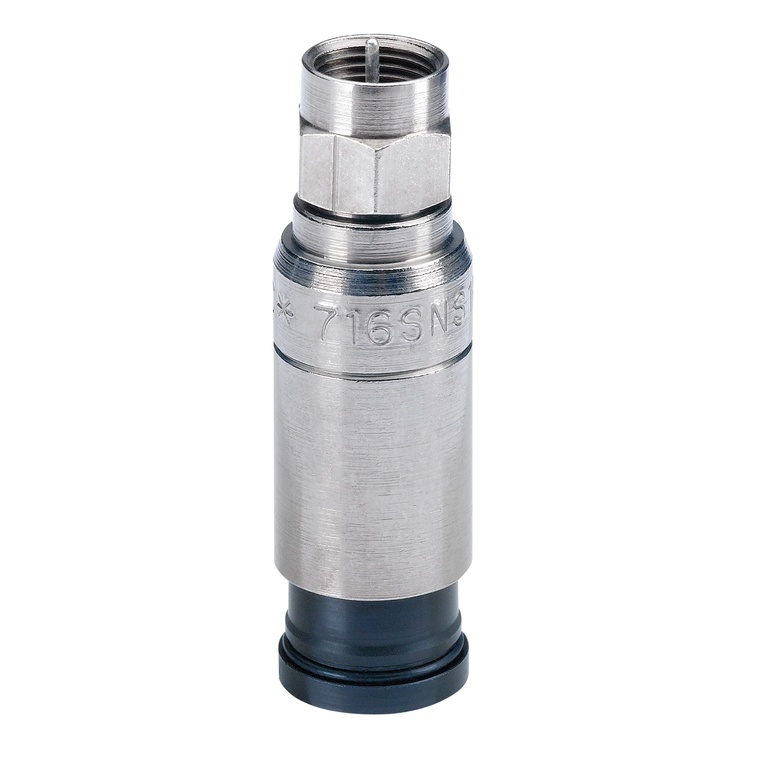

716SNS1P11PL-25
