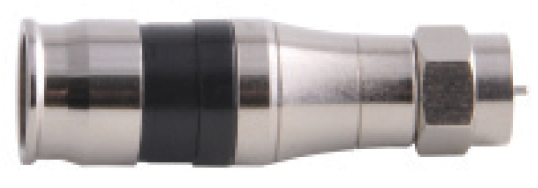

EX11N716 B25

Product Number: EX11N716 B25

EX SERIES RG11 F COAX UNIVERSAL COMPRESSION CONNECTOR 7/16'' NUT

EX SERIES RG11 F COAX UNIVERSAL COMPRESSION CONNECTOR 7/16'' NUT, Fits 60% through Quad Shield Coax, Connectors sold as Packages of 25

Availability
Global
Status
Active
Request a quote

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable ApplicationsDrop, Series 11, Indoor, Premises, CCTV, Security Cameras, Video Transmission

Electrical Characteristics

Impedance

Nominal Characteristic Impedance75 Ohm

Standards

RG Type11

Applicable Environmental and Other Programs

Environmental SpaceIndoor
EU Directive 2011/65/EU (RoHS 2)Yes
EU Directive 2012/19/EU (WEEE)Yes
EU Directive 2015/863/EU (RoHS 2 amendment)Yes

Suitability

Suitability - IndoorYes
Suitability - OutdoorNo

Related Part Numbers

PatentThis product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Product Notes

NotesBandwidth: 0 MHz to 3 GHz

History

Update and RevisionRevision Number: 0.54 Revision Date: 10-28-2025

Resources

Belden EX11N716 B25 technical datasheetSnap-N-Seal 'F' Series Male Two-Piece Compression ConnectorsVideo Distance Chart
