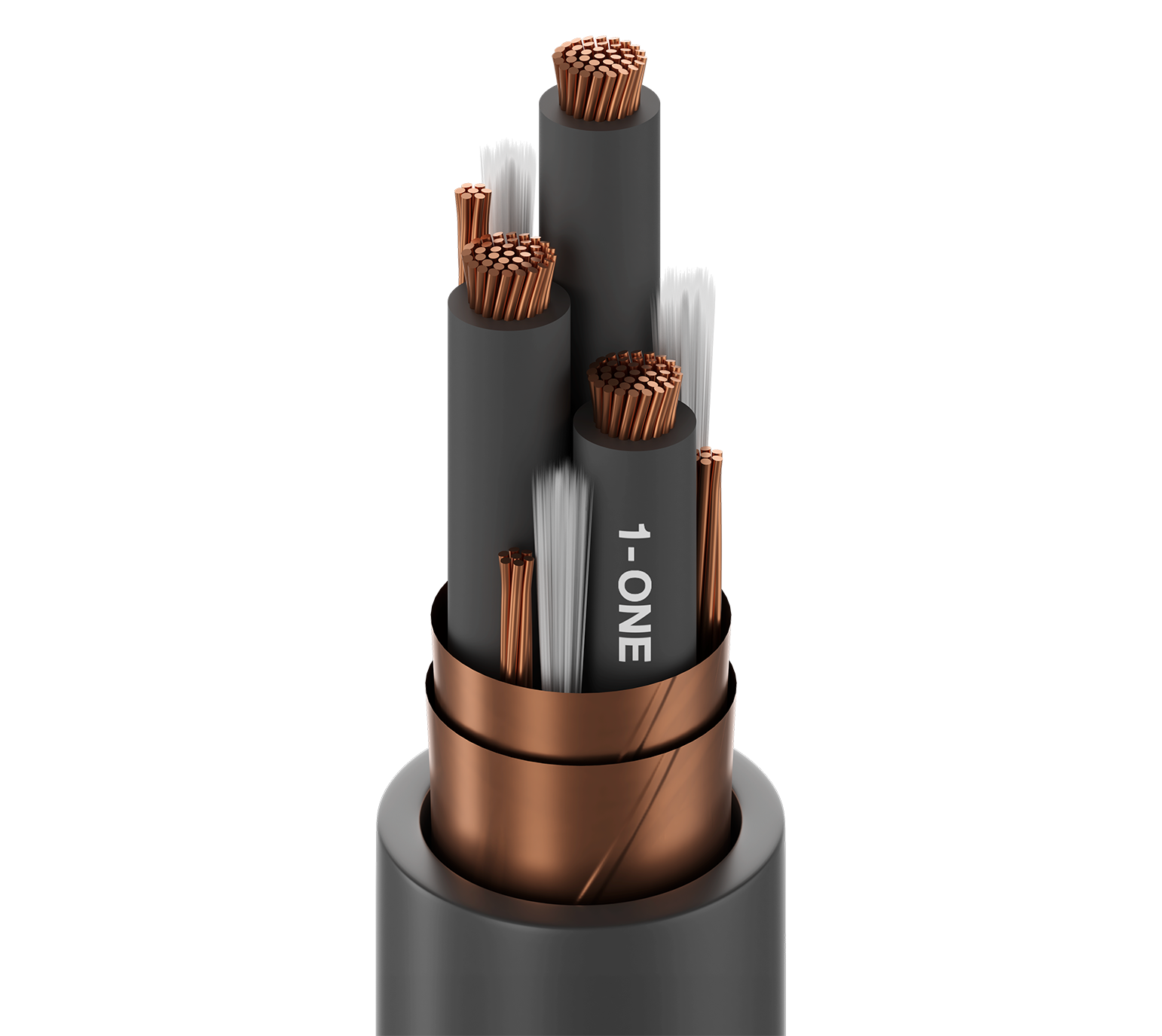

VFD, 3C 500MCM Str BC XLPE Ins + #2 Symm. Seg. Gnd (3 of #6) Str BC, CTS, Blk PVC Jkt, 2000V TC-ER 90C Dry/Wet 1000V CSA 22.2 No. 230 TC
Belden Basics VFD, 3 Conductor 500MCM (37x.1162") Bare Copper XLPE Insulation M4 Color Code + 2AWG Symmetrical Segmented Ground (3 of 6AWG) Bare Copper Stranded in Continuous Contact with Overall Copper Tape Helically Applied Shield, Black PVC Outer Jacket, 2000V TC-ER 90C Dry/Wet 1000V CSA 22.2 No. 230 TC SUN RES DIR BUR Oil Resistant
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
29535 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 29535 0101300 | Black | Reel | 1,300 ft | 612825138389 | Order online |
Specifications
Information
| Put-Up Type | Reel |
|---|---|
| Update and Revision | Revision Number: 0.698 Revision Date: 04-01-2026 |
Product Overview
| Suitable Applications | Variable Frequency Drives (VFD); AC Motor and Drive Systems |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 2.41 in (61.2 mm) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material | Notes |
|---|---|---|---|---|---|
| Conductor(s) | 3 | 500 MCM | 37x0.1162 in. | BC - Bare Copper | |
| Ground Wire | 3 | 6 AWG | 7x14 | BC - Bare Copper | Segmented Grounds |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | XLPE - Cross-Linked Polyethylene (Thermoset) | 0.105 in (2.67 mm) | 0.999 in (25.4 mm) | ICEA Method 4 |
| Ground Wire | No Insulation |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Helical Tape | Bare Copper (BC) | 100% |
| Bare Copper (BC) | 100% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.110 in (2.79 mm) |
| Nom. Diameter | 2.41 in (61.2 mm) |
| Ripcord | Yes |
Electrical Characteristics
| Nom Outer Shield DCR | 1.35 Ohm/1000ft (4.43 Ohm/km) |
|---|
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|---|
| Conductor(s) | 0.02 Ohm/1000ft (0.066 Ohm/km) | 30 pF/ft (98 pF/m) | 54 pF/ft (180 pF/m) | 62 Ohm | 0.136 μH/ft (0.446 μH/m) | 55% | 430 Amps per Conductor at 30oC (per NEC) |
| 0.43 Ohm/1000ft (1.4 Ohm/km) |
Voltage
| UL Voltage Rating | 2000 V (TC, UL44) |
|---|---|
| Voltage Rating | 1000 V (CSA TC) |
Mechanical Characteristics
| Max. Pull Tension | 1610 lbs (730 kg) |
|---|---|
| Bulk Cable Weight | 6749 lbs/1000ft (10040 kg/km) |
Temperature
| UL Temperature | 90°C Dry, 90°C Wet |
|---|---|
| Operating | -40°C To +90°C |
Bend Radius
| Stationary Min. | 28.9 in (734 mm) |
|---|---|
| Installation Min. | 28.9 in (734 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 UL Loading, IEEE 1202 FT4, FT4 |
| NEC / UL Compliance | Article 336, TC-ER, RHW-2 |
| CEC / C(UL) Compliance | CSA TC. |
| ICEA Compliance | S-95-658 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.698 Revision Date: 04-01-2026 |
|---|
