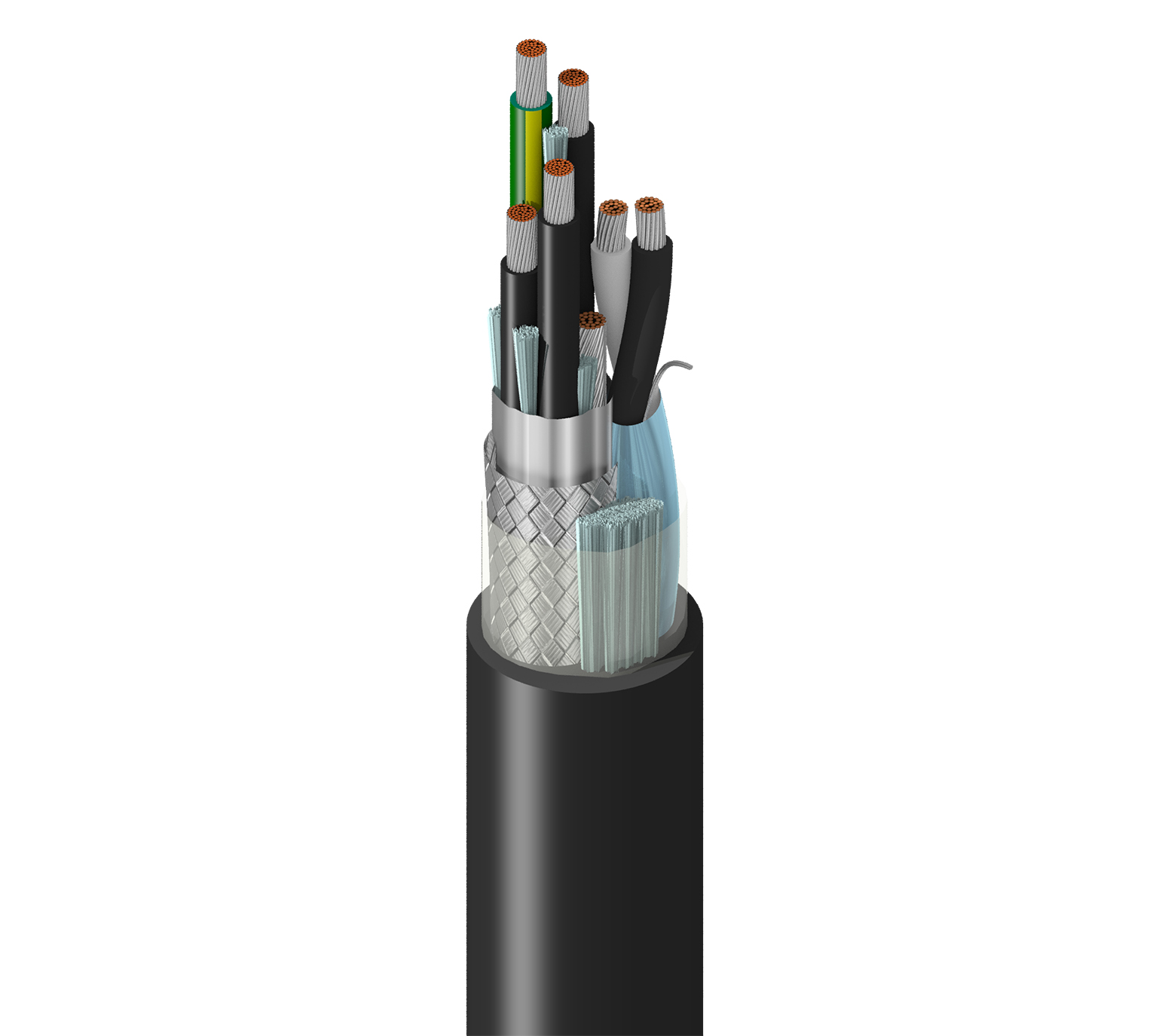

VFD 300% Gnd, 3C+G #14 Str TC, XLPE Ins+PVC Gnd, OS+TC Brd, 1 Pr #16 Str TC XLPE IS, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable
Belden 300% Ground Flexible VFD, 3 Conductor 14AWG (41x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, 1 Pair 16AWG (26x30) Tinned Copper XLPE Beldfoil, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant -- Shielded Pair is Outside the Power Group Braid Shield for Isolation
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
29511 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 29511 010100 | Black | Reel | 100 ft | 612825137481 | C | Order online |
| 29511 010500 | Black | Reel | 500 ft | 612825137504 | C | Order online |
| 29511 0101000 | Black | Reel | 1,000 ft | 612825137498 | C | Order online |
| 29511 0105000 | Black | Reel | 5,000 ft | 612825137511 | C | Order online |
Specifications
Information
| Put-Up Type | Reel |
|---|---|
| Update and Revision | Revision Number: 0.722 Revision Date: 04-01-2026 |
| Footnote | C - CRATE REEL PUT-UP. |
Product Overview
| Suitable Applications | Variable Frequency Drives (VFD); AC Motor and Drive Systems; Class 1 Division 2 Hazardous Locations |
|---|
Construction Details
| Outer Shield Table Notes | Foil+braid shield on power conductors & Ground only; extra pair has own foil shield. |
|---|---|
| Overall Cable Diameter (Nominal) | 0.820 in (20.8 mm) |
Conductor
| Element | No. of Elements | Size | Stranding | Material | Notes |
|---|---|---|---|---|---|
| Conductor(s) | 3 | 14 AWG | 41x30 | TC - Tinned Copper | |
| Pair(s) | 1 | 16 AWG | 26x30 | TC - Tinned Copper | Used as control or brake pair |
| Ground Wire | 1 | 14 AWG | 41x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | XLPO - Crosslink Polyolefin | 0.046 in (1.2 mm) | 0.173 in (4.39 mm) | ICEA Chart M4 |
| Pair(s) | XLPO - Crosslink Polyolefin | 0.032 in (0.81 mm) | 0.123 in (3.12 mm) | Black & White |
| Ground Wire | PVC - Polyvinyl Chloride | 0.047 in (1.2 mm) | 0.169 in (4.29 mm) | Green/Yellow Stripe |
Inner Shield
| Element | Pair(s) |
|---|---|
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 18 AWG (19x30) TC |
| Notes | Foil-In, Shorting fold |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Tri-Laminate (Alum+Poly+Alum) | 100% | 14 AWG (41x30) TC |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.075 in (1.9 mm) |
| Nom. Diameter | 0.820 in (20.8 mm) |
| Ripcord | Yes |
Electrical Characteristics
| Nom Outer Shield DCR | 1.08 Ohm/1000ft (3.54 Ohm/km) |
|---|
Electricals
| Element | Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|---|---|---|
| Conductor(s) | 2.482 Ohm/1000ft (8.143 Ohm/km) | 48 pF/ft (160 pF/m) | 42 pF/ft (140 pF/m) | 86 pF/ft (280 pF/m) | 37 Ohm | 0.213 μH/ft (0.699 μH/m) | 55% | 25 Amps per Conductor at 30oC (3 Current Carrying Conductors) | |
| Pair(s) | 4.0 Ohm/1000ft (13 Ohm/km) | 4.99 Ohm/1000ft (16.4 Ohm/km) | 34 pF/ft (110 pF/m) | 18 Amps per Conductor at 30oC (per NEC) | |||||
| Ground | 2.52 Ohm/1000ft (8.27 Ohm/km) | 23 pF/ft (75 pF/m) | 42 pF/ft (140 pF/m) | 0.213 μH/ft (0.699 μH/m) |
Voltage
| UL Voltage Rating | 1000 V (UL Flexible Motor Supply Cable), 600 V (TC, C(UL) TC) |
|---|---|
| Voltage Rating | 1000 V (AWM I/II A/B) |
Mechanical Characteristics
| Max. Pull Tension | 441 lbs (200 kg) |
|---|---|
| Bulk Cable Weight | 275 lbs/1000ft (409 kg/km) |
Temperature
| UL Temperature | 90°C Dry, 90°C Wet |
|---|---|
| Operating | -40°C To +90°C |
Bend Radius
| Stationary Min. | 9.8 in (250 mm) |
|---|---|
| Installation Min. | 9.8 in (250 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 UL Loading, FT4, IEEE 1202 FT4 |
| NEC / UL Compliance | Article 336, Article 310, TC-ER, RHW-2, UL Flexible Motor Supply Cable |
| AWM Compliance | AWM I/II A/B |
| CEC / C(UL) Compliance | CIC, TC. |
| ICEA Compliance | S-95-658 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | P-07-KA070003-MSHA |
History
| Update and Revision | Revision Number: 0.722 Revision Date: 04-01-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
