Product Number: 7500A

MachFlexTM, Vision Coax 75Ω, #30 Str Tinned Alloy, FPE Ins, OA TC Brd, PVC Jkt, High Flex, AWM 1354

Name: Belden 7500A
Brand: Belden
SKU: 7500A

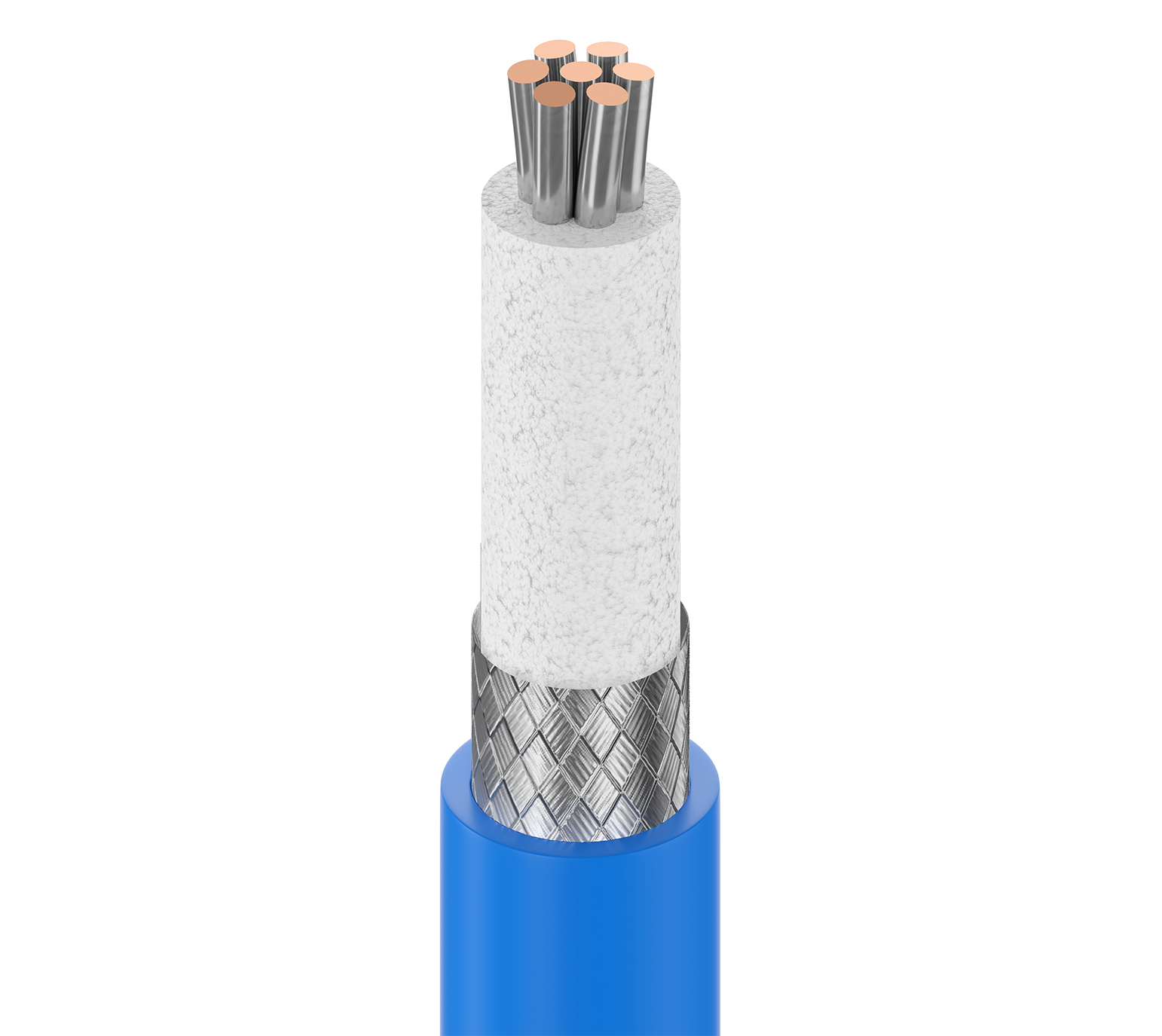

30AWG (7x38) Tinned Alloy, Foam PE Insulation, Overall Tinned Copper Braid(95%) Shield, PVC Outer Jacket, High Flex, AWM 1354

Ships from and sold by A5 IT.

Part numbers

7500A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7500A G7X1000	Blue, Matte	Reel	1,000 ft	612825187202	Z	Order online

Suitable Applications	Automation, Robotics, Vision Control

Overall Cable Diameter (Nominal)	0.110 in (2.79 mm)

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.110 in (2.79 mm)

Nom. Conductor DCR	108 Ohm/1000ft
Nom. Outer Shield DCR	13.3 Ohm/1000ft (43.6 Ohm/km)
Nom. Capacitance Cond-to-Shield	17.3 pF/ft (56.8 pF/m)
Nom. Characteristic Impedance	75 Ohm
Nom. Velocity of Prop.	78%

UL Voltage Rating	30 V (UL AWM 1354)

Max. Pull Tension	14 lbs (6.4 kg)
Bulk Cable Weight	8 lbs/1000ft

UL Temperature	80°C
Operating	-35°C to +80°C

Installation Min.	1.1 in (28 mm)
Flexing Min.	2.2 in (56 mm)

Environmental Suitability	Indoor (Not Riser or Plenum), Indoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL 1581 Horizontal Wire, FT1
AWM Compliance	AWM 1354, AWM I/II A/B
CEC / C(UL) Compliance	LL7874.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.542 Revision Date: 02-20-2026
Footnote	Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
