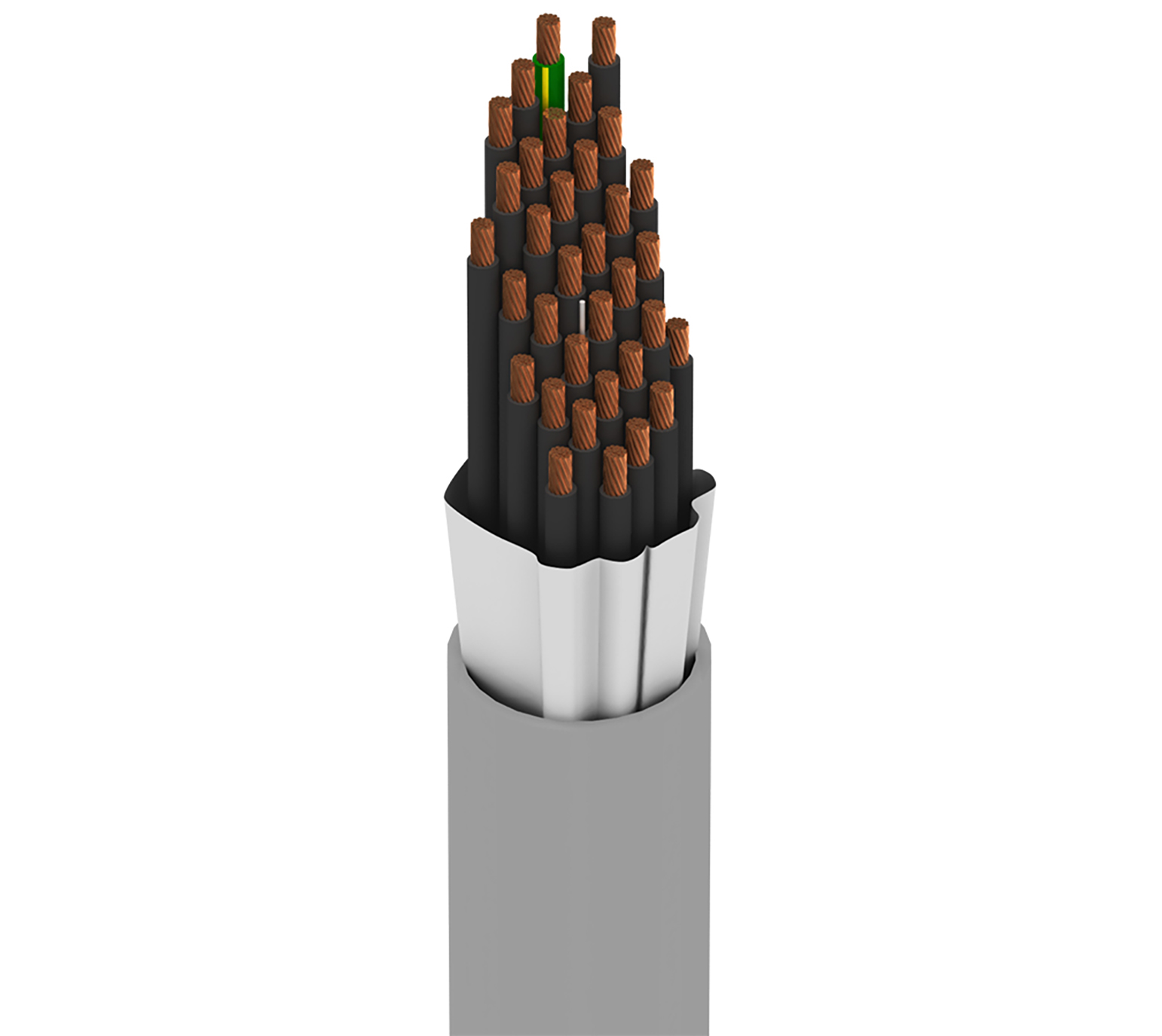

MachFlexTM, 33+1G C #16 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER
MachFlexTM for High Flex, 33+1G Conductor 16AWG (26x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
7430W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 7430W 060250 | Chrome | Reel | 250 ft | 612825186540 | C | Order online |
| 7430W 0601000 | Chrome | Reel | 1,000 ft | 612825186533 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Robotics, Robot, Continuous Flex |
|---|
Construction Details
Conductor
| Element | Size | Stranding | Material |
|---|---|---|---|
| 16 | 26x30 | BC - Bare Copper | |
| Ground Wire | 16 | 26x30 | BC - Bare Copper |
Insulation
| Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
|---|---|
| Nom. Insulation Diameter | 0.101 in (2.57 mm) |
| Color Code | Black and Numbered 1, Black and Numbered 2, Black and Numbered 3, Black and Numbered 4, Black and Numbered 5, Black and Numbered 6, Black and Numbered 7, Black and Numbered 8, Black and Numbered 9, Black and Numbered 10, Black and Numbered 11, Black and Numbered 12, Black and Numbered 13, Black and Numbered 14, Black and Numbered 15, Black and Numbered 16, Black and Numbered 17, Black and Numbered 18, Black and Numbered 19, Black and Numbered 20, Black and Numbered 21, Black and Numbered 22, Black and Numbered 23, Black and Numbered 24, Black and Numbered 25, Black and Numbered 26, Black and Numbered 27, Black and Numbered 28, Black and Numbered 29, Black and Numbered 30, Black and Numbered 31, Black and Numbered 32, Black and Numbered 33, Green/Yellow |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | TPE - Thermoplastic Elastomer |
|---|---|
| Nom. Thickness | 0.085 in (2.2 mm) |
| Nom. Diameter | 0.882 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 4 Ohm/1000ft (13 Ohm/km) |
|---|
Voltage
| UL Voltage Rating | 1000 V RMS, 600 V RMS |
|---|
Mechanical Characteristics
| Max. Pull Tension | 1190 lbs (540 kg) |
|---|---|
| Bulk Cable Weight | 522 lbs/1000ft (777 kg/km) |
Temperature
| UL Temperature | 90°C (UL AWM Style 2587) |
|---|---|
| Operating | -40°C To +90°C |
Bend Radius
| Flexing Min. | 8.8 in |
|---|
Standards and Compliance
| Environmental Suitability | Sunlight Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading, 1202 |
| NEC / UL Compliance | TC-ER, WTTC |
| AWM Compliance | AWM 20328, AWM I/II A/B |
| CEC / C(UL) Compliance | CIC, TC. |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.364 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
