Product Number: 7416W

MachFlexTM, 17C+1G #18 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER

Name: Belden 7416W
Brand: Belden
SKU: 7416W

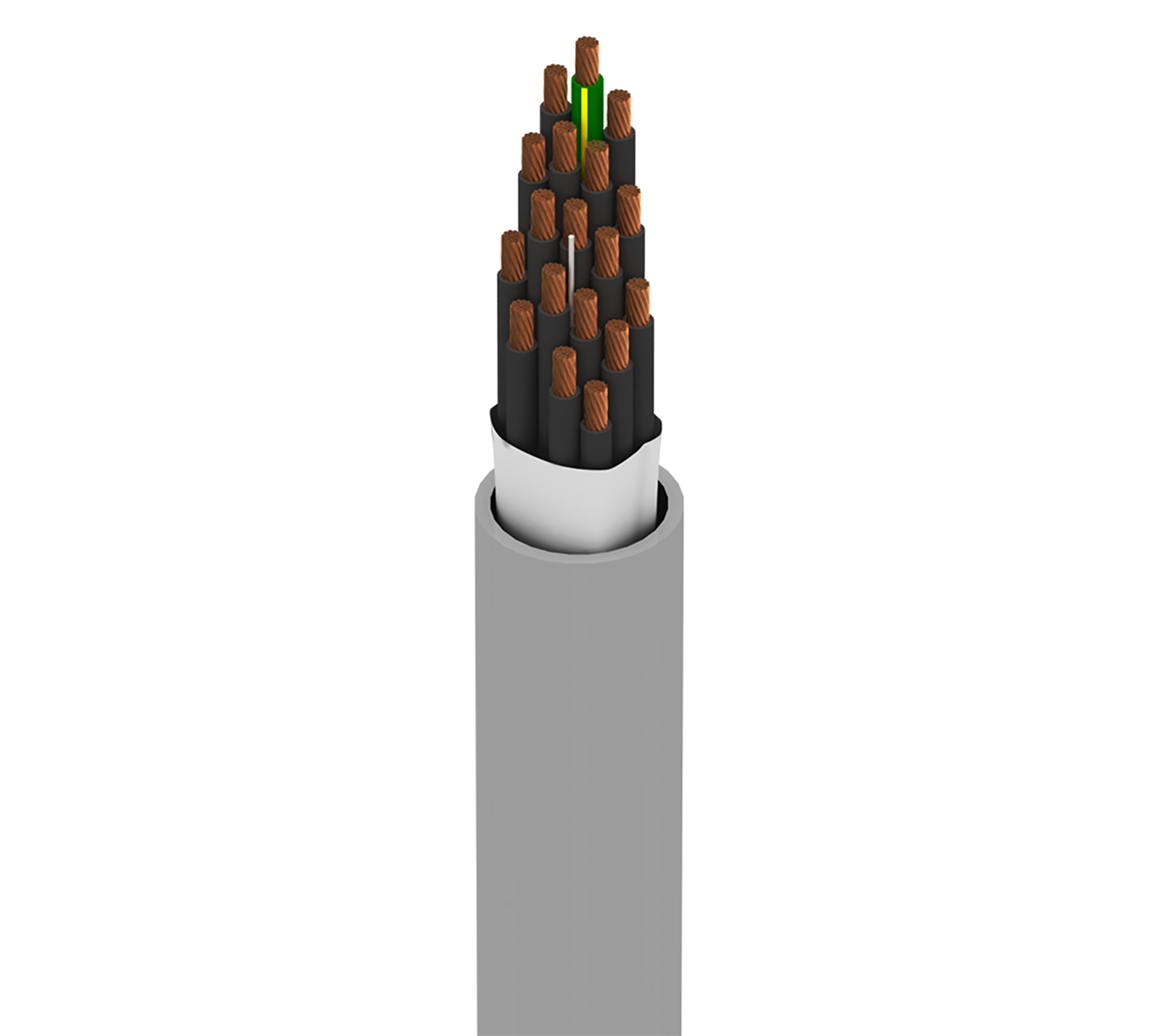

MachFlexTM for High Flex, 17+1G Conductor 18AWG (16x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Ships from and sold by A5 IT.

Part numbers

7416W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7416W 060250	Chrome	Reel	250 ft	612825186007	C	Order online
7416W 0601000	Chrome	Reel	1,000 ft	612825185994	C	Order online

Suitable Applications	Robotics, Robot, Continuous Flex

Overall Cable Diameter (Nominal)	0.576 in (14.6 mm)

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	17	18 AWG	16x30	BC - Bare Copper
Ground	1	18 AWG	16x30	BC - Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC/Nylon - Polyvinyl Chloride + Nylon	0.021 in (0.53 mm)	0.089 in (2.3 mm)	Black and Numbered
Ground	PVC/Nylon - Polyvinyl Chloride + Nylon	0.021 in (0.53 mm)		Green / Yellow Stripe

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.576 in (14.6 mm)

Element	Nom. Conductor DCR
Conductor(s)	6.5 Ohm/1000ft (21 Ohm/km)
Ground	6.5 Ohm/1000ft (21 Ohm/km)

UL Voltage Rating	1000 V RMS (WTTC), 600 V (TC-ER, UL AWM 20328)

Max. Pull Tension	414 lbs (188 kg)
Bulk Cable Weight	195 lbs/1000ft (290 kg/km)

UL Temperature	90°C Dry, 75°C Wet
Operating	-40°C to +90°C

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	UL1685 (UL Loading), 1202
NEC / UL Compliance	Article 336, Article 760, TC-ER, WTTC
AWM Compliance	AWM 20328, I/II A/B
CEC / C(UL) Compliance	CIC, TC.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
