Product Number: 7408WS

MachFlexTM, 24+1G C #20 Str BC, PVC Ins, OA TC Brd, TPE Jkt, PLTC

Name: Belden 7408WS
Brand: Belden
SKU: 7408WS

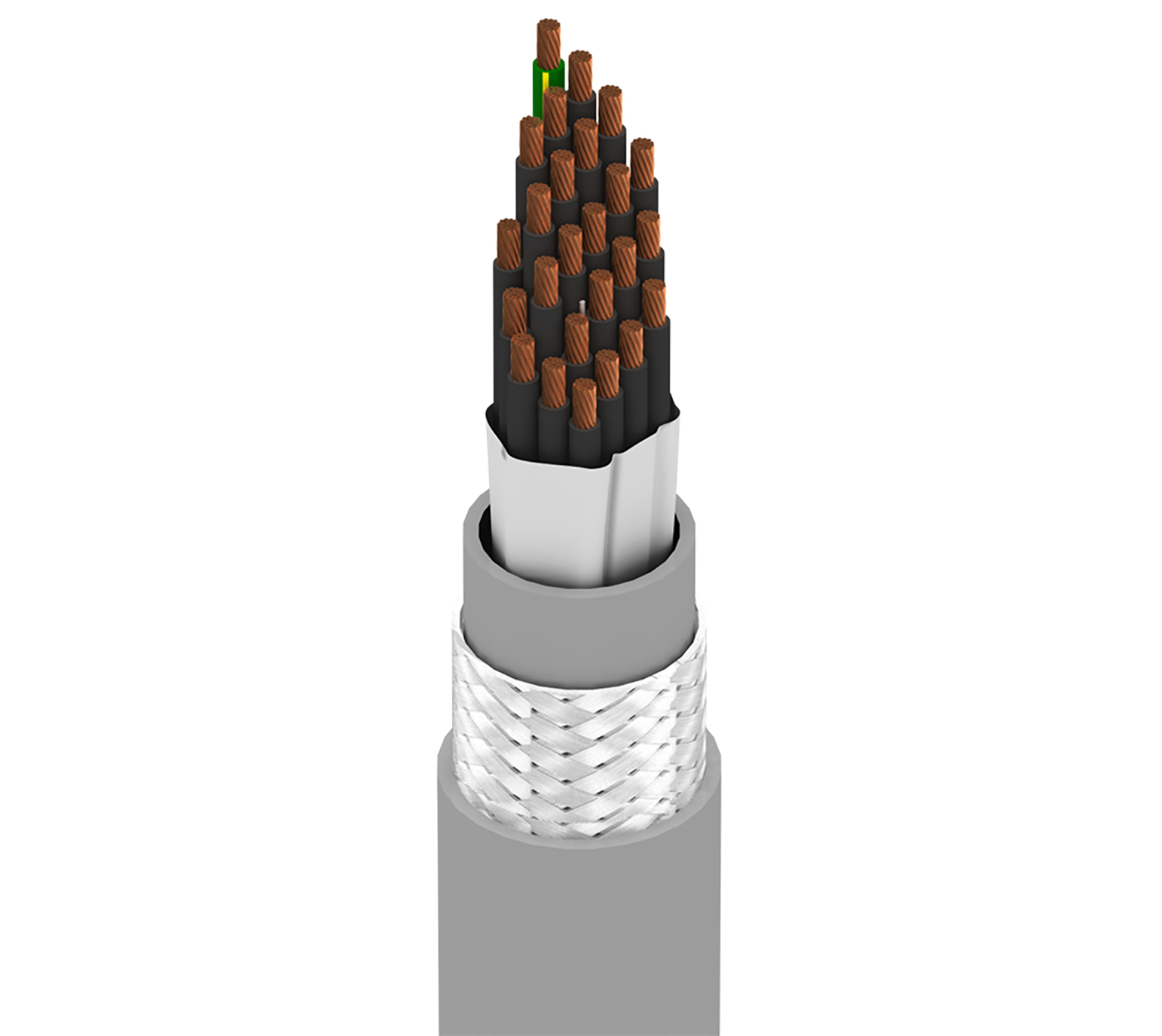

MachFlexTM for High Flex, 24+1G Conductor 20AWG (19x32) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Outer Jacket, PLTC

Ships from and sold by A5 IT.

Part numbers

7408WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7408WS 060250	Chrome	Reel	250 ft	612825185659	C	Order online
7408WS 0601000	Chrome	Reel	1,000 ft	612825185642	C	Order online

Suitable Applications	Robotics, Robot, Continuous Flex

Overall Cable Diameter (Nominal)	0.595 in

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	24	20 AWG	19x32	BC - Bare Copper
Ground Wire	1	20 AWG	19x32	BC - Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.015 in (0.38 mm)	0.066 in (1.7 mm)	Black and Numbered
Ground Wire	PVC - Polyvinyl Chloride	0.015 in (0.38 mm)	0.066 in (1.7 mm)	Green/Yellow

Separator	non-Woven Tape
Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.25 in (6.4 mm)
Nom. Diameter	0.461 in (11.7 mm)
Color	Chrome

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.053 in (1.3 mm)
Nom. Diameter	0.595 in

Nom Outer Shield DCR	2.15 Ohm/1000ft (7.05 Ohm/km)

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	10.8 Ohm/1000ft	5.4 Amps per Conductor at 30oC
Ground Wire	10.7 Ohm/1000ft (35.1 Ohm/km)	14.4 Amps per Conductor at 30oC

UL Voltage Rating	300 V
Voltage Rating	600 V

Max. Pull Tension	375 lbs (170 kg)
Bulk Cable Weight	159 lbs/1000ft

UL Temperature	UL : 90°C, AWM 20327 : 105°C
Operating	-40°C To 105°C

Stationary Min.	5.95 in (151 mm)
Installation Min.	5.95 in

Environmental Suitability	Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance	Article 725, PLTC
AWM Compliance	AWM 20327, AWM I/II A/B
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
