Product Number: 7129WS

MachFlexTM, 24+1G C #16 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, TPE Jkt, 1000V WTTC, 600V TC-ER

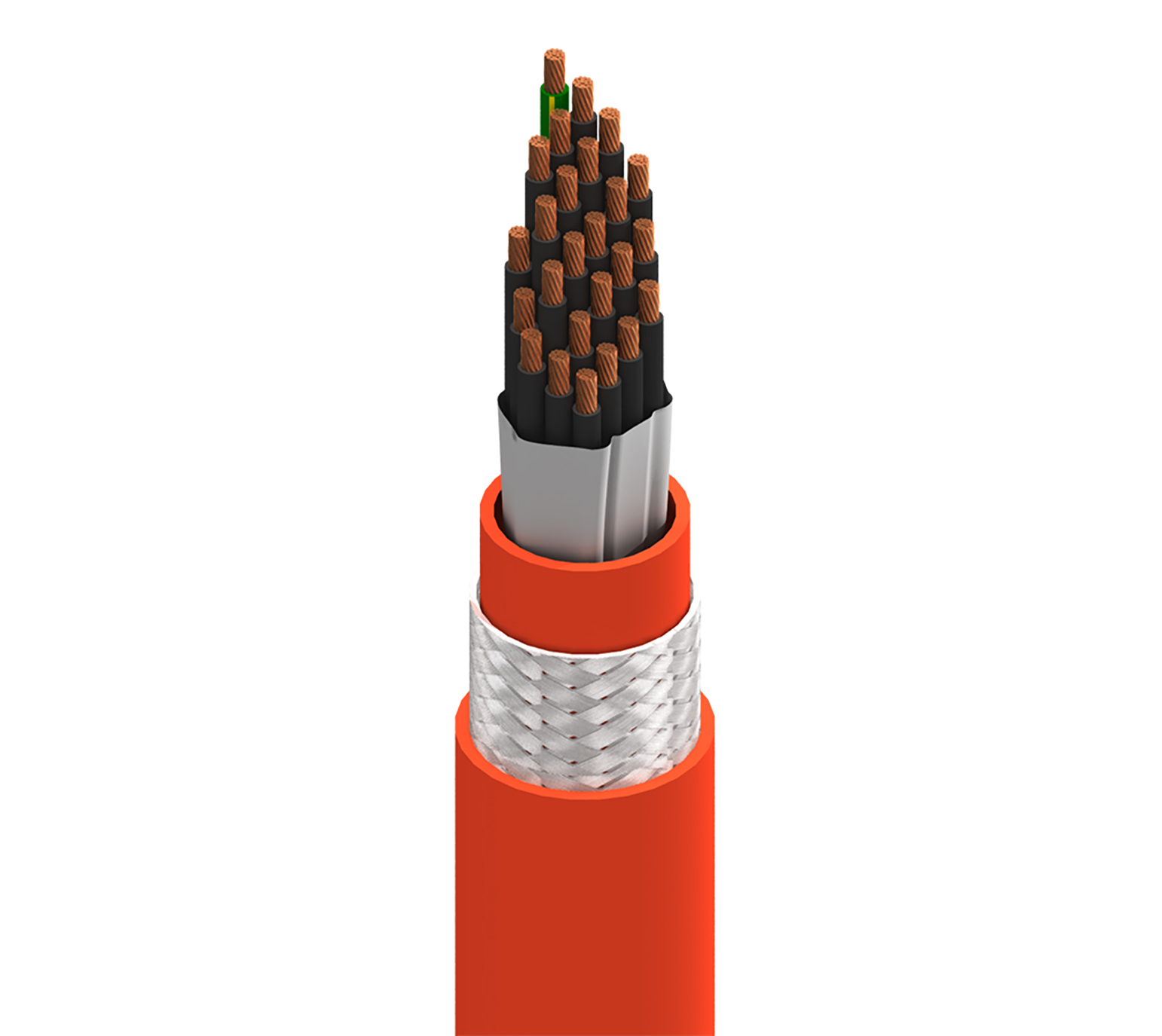

MachFlexTM for High Flex, 24+1G Conductor 16AWG (168(7x24) x38) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

7129WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7129WS 003250	Orange	Reel	250 ft	612825182481	C	Order online
7129WS 0031000	Orange	Reel	1,000 ft	612825182474	C	Order online
7129WS 0035000	Orange	Reel	5,000 ft	612825182498	—	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Conductor

Element	Size	Stranding	Material
	16	168x38	BC - Bare Copper
Ground Wire	16	168x38	BC - Bare Copper

Insulation

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Insulation Diameter	0.109 in (2.77 mm)
Color Code	Black and Numbered 1, Black and Numbered 2, Black and Numbered 3, Black and Numbered 4, Black and Numbered 5, Black and Numbered 6, Black and Numbered 7, Black and Numbered 8, Black and Numbered 9, Black and Numbered 10, Black and Numbered 11, Black and Numbered 12, Black and Numbered 13, Black and Numbered 14, Black and Numbered 15, Black and Numbered 16, Black and Numbered 17, Black and Numbered 18, Black and Numbered 19, Black and Numbered 20, Black and Numbered 21, Black and Numbered 22, Black and Numbered 23, Black and Numbered 24, Green/Yellow

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	85%

Inner Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.025 in (0.64 mm)

Outer Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.083 in (2.1 mm)
Nom. Diameter	0.918 in

Electrical Characteristics

Electricals

Nom. Conductor DCR	5.7 Ohm/1000ft (19 Ohm/km)

Voltage

UL Voltage Rating	1000 V RMS, 600 V RMS

Mechanical Characteristics

Max. Pull Tension	950 lbs (430 kg)
Bulk Cable Weight	513 lbs/1000ft (763 kg/km)

Temperature

UL Temperature	75°C Dry, 90°C Wet

Bend Radius

Flexing Min.	9.2 in

Standards and Compliance

Environmental Suitability	Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, IEEE 1202
NEC / UL Compliance	TC-ER, WTTC
AWM Compliance	AWM 20328, AWM I/II A/B
CEC / C(UL) Compliance	CIC, TC.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
