Product Number: 7102W

MachFlexTM, 3+1G C #20 Str BC, PVC Ins, TPE Jkt, PLTC

Name: Belden 7102W
Brand: Belden
SKU: 7102W

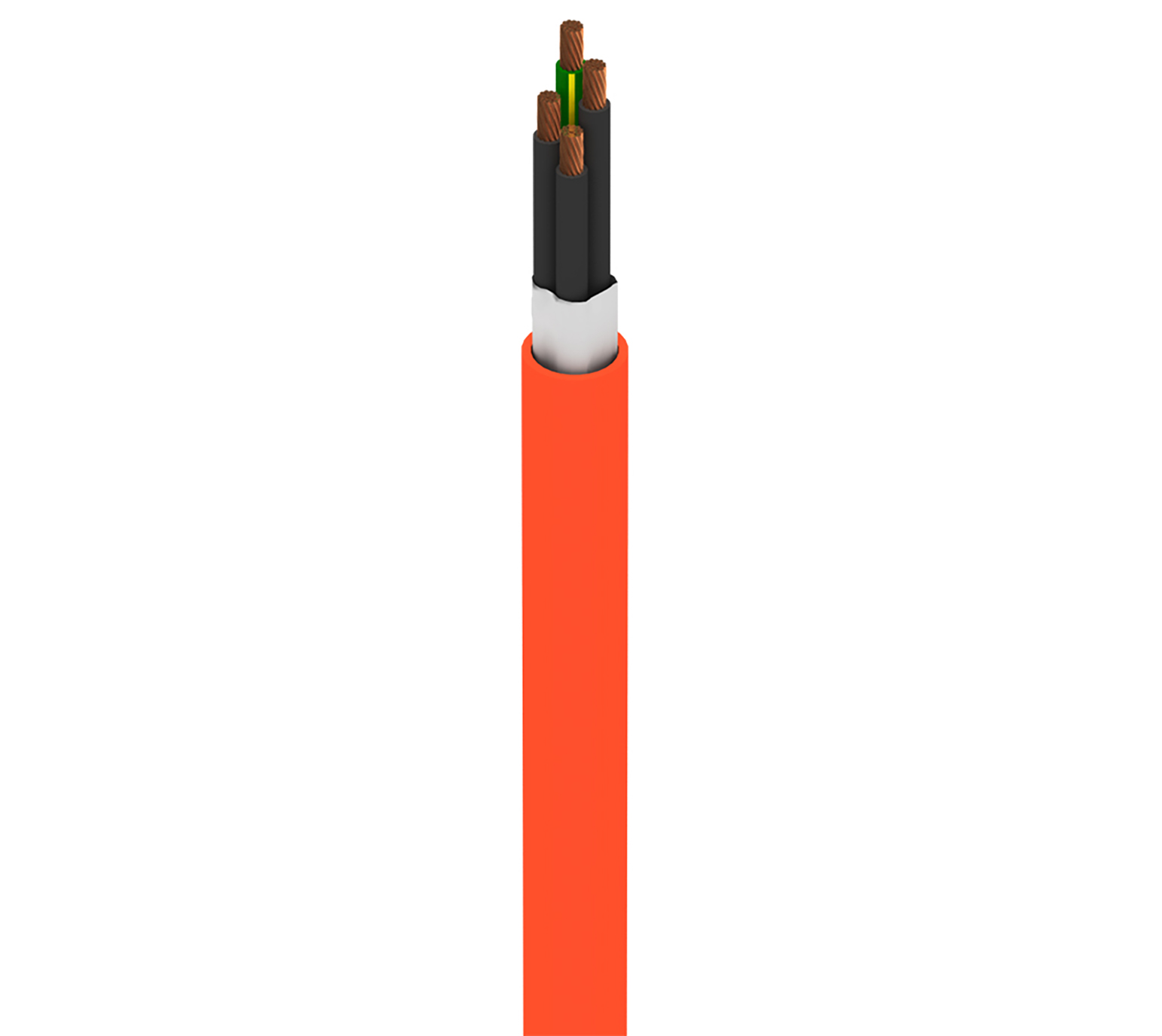

MachFlexTM for High Flex, 3+1G Conductor 20AWG (74x38) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC

Ships from and sold by A5 IT.

Part numbers

7102W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7102W 003250	Orange	Reel	250 ft	612825181941	C	Order online
7102W 0031000	Orange	Reel	1,000 ft	612825181934	C	Order online
7102W 0035000	Orange	Reel	5,000 ft	612825181958	—	Order online

Suitable Applications	Robotics, Robot, Continuous Flex to 10M Flex Cycles

Overall Cable Diameter (Nominal)	0.256 in (6.50 mm)

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	20 AWG	74x38	BC - Bare Copper
Ground Wire	1	20 AWG	74x38	BC - Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.015 in (0.38 mm)	0.074 in (1.9 mm)	Black and Numbered
Ground Wire	PVC - Polyvinyl Chloride	0.015 in (0.38 mm)	0.074 in (1.9 mm)	Green/Yellow

Material	No Shield

Separator	non-Woven Tape
Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.037 in (0.94 mm)
Nom. Diameter	0.256 in (6.50 mm)

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	10.7 Ohm/1000ft (35.1 Ohm/km)	9 Amps per Conductor at 30oC
Ground Wire	10.7 Ohm/1000ft (35.1 Ohm/km)	14.4 Amps per Conductor at 30oC

UL Voltage Rating	300 V
Voltage Rating	600 V

Max. Pull Tension	50.4 lbs (22.9 kg)
Bulk Cable Weight	40 lbs/1000ft (60 kg/km)

UL Temperature	UL : 90°C, AWM 20327 : 105°C
Operating	-40°C To 105°C

Stationary Min.	2.56 in (65.0 mm)
Installation Min.	2.56 in (65.0 mm)

Environmental Suitability	Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance	Article 725, PLTC
AWM Compliance	AWM 20327, AWM I/II A/B
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
