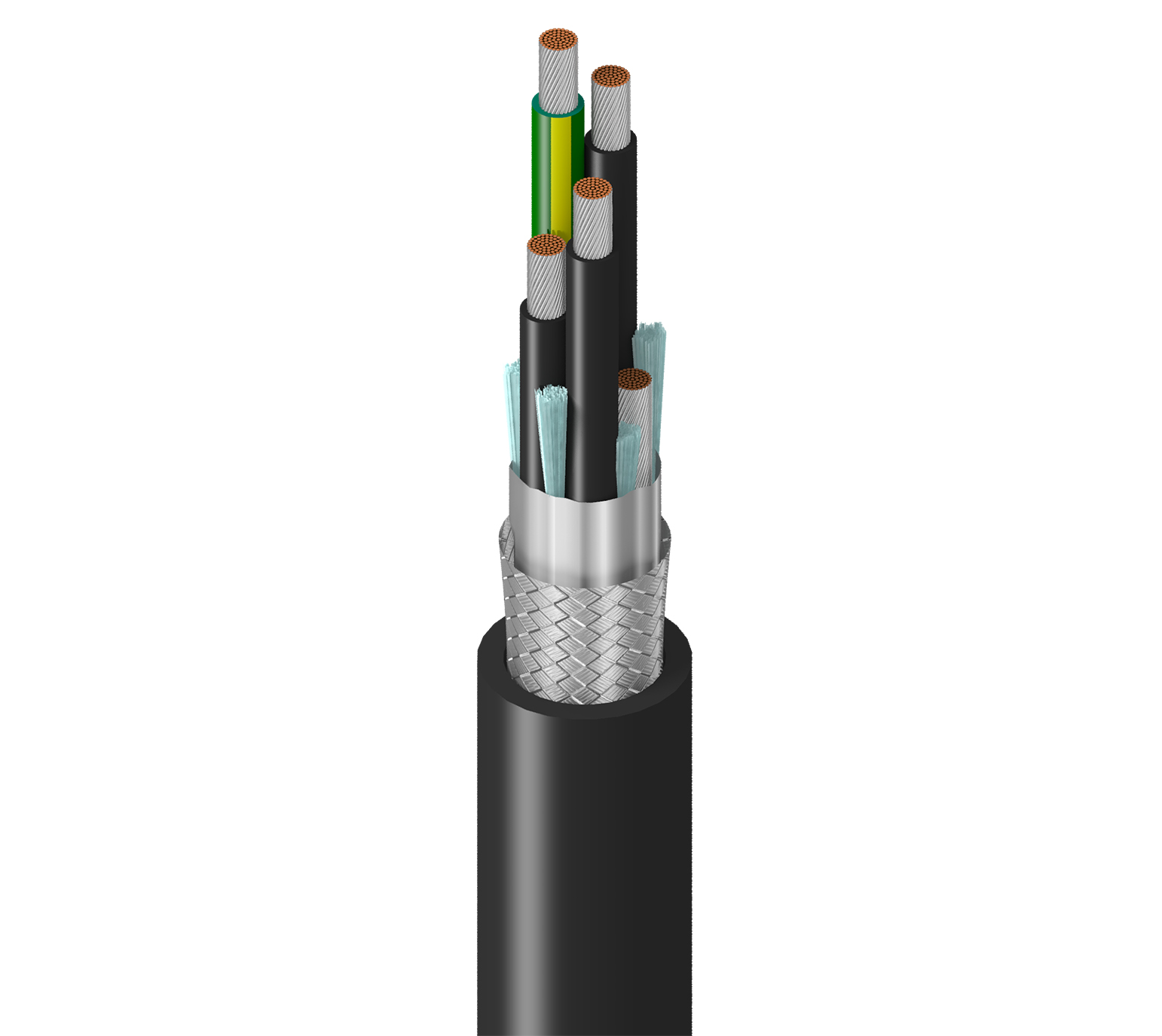

Product Number: 29500F

VFD 300% Gnd, 3C+G #16 Str TC, XLPE Ins+PVC Gnd, OS+TC Brd w/#16 TC Drain, Blk TPE Jkt, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC

Belden 300% Ground Extra Flexible VFD, 3 Conductor 16AWG (65x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield w/16AWG Tinned Copper Drain, Black TPE Outer Jacket, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

29500F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
29500F 0101000	Black	Reel	1,000 ft	612825367239	Order online
29500F 0106000	Black	Reel	6,000 ft	612825367246	Order online

Specifications

Product Overview

Suitable Applications	Variable Frequency Drives (VFD); AC Motor and Drive Systems, Exposure to high flex, motion, and abrasion, Hard to reach installation areas

Construction Details

Overall Cable Diameter (Nominal)	0.528 in (13.4 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	16 AWG	65x34	TC - Tinned Copper
Ground Wire	1	16 AWG	65x34	TC - Tinned Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLPO - Crosslink Polyolefin	0.046 in (1.2 mm)	0.151 in (3.84 mm)	ICEA Chart M4
Ground Wire	PVC - Polyvinyl Chloride	0.046 in (1.2 mm)	0.151 in (3.84 mm)	Green/Yellow Stripe

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Tri-Laminate (Alum+Poly+Alum)	100%	16 AWG (65x34) TC
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.528 in (13.4 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence	Nom. Velocity of Prop.	Max. Current
Conductor(s)	3.941 Ohm/1000ft (12.93 Ohm/km)	54 pF/ft (180 pF/m)	97 pF/ft (320 pF/m)	44 Ohm	55%	18 Amps per Conductor at 30oC
	4.45 Ohm/1000ft (14.6 Ohm/km)

Voltage

UL Voltage Rating	1000 V (TC-ER, WTTC, UL Flexible Motor Supply Cable), 600 V (C(UL) CIC TC)

Mechanical Characteristics

Max. Pull Tension	243 lbs (110 kg)
Bulk Cable Weight	171 lbs/1000ft (254 kg/km)

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-40°C To +90°C

Bend Radius

Stationary Min.	6.3 in (160 mm)
Installation Min.	6.3 in (160 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL 1685 UL Loading, FT4, IEEE 1202 FT4
NEC / UL Compliance	Article 336, TC-ER, WTTC, UL Flexible Motor Supply Cable
CEC / C(UL) Compliance	CIC, TC.
ICEA Compliance	S-95-658
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
