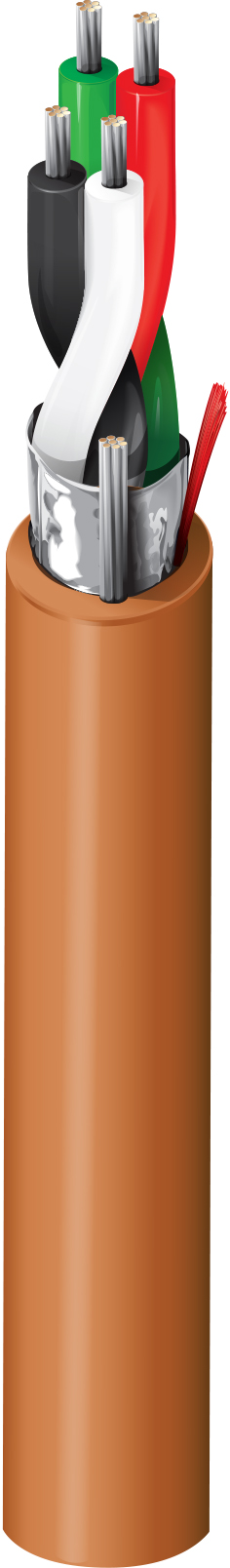

Product Number: 6661PT

Thermostat & Control, #24-2pr, TC, Indiv. Foil, CMP

Thermostat & Control Cable, Plenum-CMP, 2-24 AWG solid tinned copper pairs with foam FEP insulation, Individually Beldfoil® shielded and Flamarrest® jacket

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

6661PT is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
6661PT 0011000	Brown	612825178828	C	Order online

Specifications

Product Overview

Suitable Applications	Thermostat, Control, Noisy Environment

Construction Details

Overall Cable Diameter (Nominal)	0.155 in

Conductor

Element	Pair(s)
No. of Elements	2
Size	24 AWG
Stranding	Solid
Material	TC - Tinned Copper

Insulation

Element	Pair(s)
Material	FEP - Fluorinated Ethylene Propylene (Foam)
Nom. Thickness	0.013 in (0.33 mm)
Nom. Insulation Diameter	0.047 in (1.2 mm)
Color Code	Black & White, Green & Red

Inner Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (Solid) TC

Outer Shield

Material	No Shield

Outer Jacket

Material	PVDF - Polyvinylidene Fluoride
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.155 in

Electrical Characteristics

Electricals

Nom. Conductor DCR	32.8 Ohm/1000ft
Nom. Inner Shield DCR	20.8 Ohm/1000ft (68.2 Ohm/km)
Nom. Capacitance Cond-to-Cond	34.9 pF/ft (115 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	62.8 pF/ft (206 pF/m)
Nom. Characteristic Impedence	60 Ohm
Nom. Inductance	0.21 μH/ft (0.69 μH/m)
Nom. Velocity of Prop.	53%
Max. Current	1.68 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	27.1 lbs (12.3 kg)
Bulk Cable Weight	16 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	-20°C to +75°C

Bend Radius

Stationary Min.	1.55 in (39.4 mm)
Installation Min.	1.55 in

Standards and Compliance

Environmental Suitability	Indoor - Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262 (UL 910), FT6
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
