Thermostat & Control, #22-2c, TC, O/A Foil, CMR
Thermostat & Control Cable, Riser-CMR, 1-22 AWG stranded tinned copper pair with foam polyolefin insulation, Beldfoil® shield, PVC jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
5540FT is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 5540FT 0011000 | Brown | 612825164234 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Thermostat, Control, Noisy Environment |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.172 in |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.018 in (0.46 mm) |
| Nom. Insulation Diameter | 0.064 in (1.6 mm) |
| Color Code | Black & White |
| Notes | HDPE |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 22 AWG (7x30) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.020 in (0.51 mm) |
| Nom. Diameter | 0.172 in |
Electrical Characteristics
| Nom Outer Shield DCR | 11.8 Ohm/1000ft (38.7 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 17.9 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 16.9 pF/ft (55.4 pF/m) |
| Nom. Inductance | 0.21 μH/ft (0.69 μH/m) |
| Nom. Velocity of Prop. | 78% |
| Max. Current | 2.8 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 27 lbs (12 kg) |
|---|---|
| Bulk Cable Weight | 13 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 1.72 in (43.7 mm) |
|---|---|
| Installation Min. | 1.72 in |
Standards and Compliance
| Environmental Suitability | Indoor - Riser, Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1666 Riser, FT4 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6540FT |
History
| Update and Revision | Revision Number: 0.341 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
Resources
Related rs-422 cables
5340FT
Thermostat & Control, #18-2c, TC, O/A Foil, CMR
TC - Tinned Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride · 300 V RMS
5660FT
Thermostat & Control, #24-2c, TC, O/A Foil, CMR
1 · 24 AWG · TC - Tinned Copper · PE - Polyethylene (Foam)
6340FT
Thermostat & Control, #18-2c, TC, O/A Foil, CMP
1 · 18 · TC - Tinned Copper · FEP - Fluorinated Ethylene Propylene (Foam)

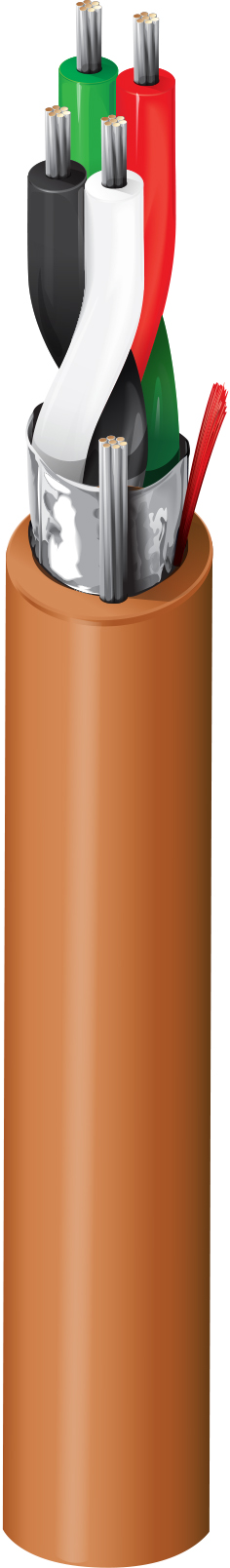

6341PT
