Thermostat & Control, #22-2c, TC, O/A Foil, CMP
Thermostat & Control Cable, Plenum-CMP, 1-22 AWG stranded tinned copper pair with foam FEP insulation, Beldfoil® shield, Flamarrest® jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
6540FT is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 6540FT 0011000 | Brown | 612825178217 | Order online |
Specifications
Product Overview
| Suitable Applications | Thermostat, Control, Noisy Environment |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.162 in |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | FEP - Fluorinated Ethylene Propylene (Foam) |
| Nom. Thickness | 0.0175 in (0.445 mm) |
| Nom. Insulation Diameter | 0.064 in mm |
| Color Code | Black & White |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 22 AWG (7x30) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Diameter | 0.162 in |
Electrical Characteristics
| Nom Outer Shield DCR | 11.8 Ohm/1000ft (38.7 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 17.85 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 16.9 pF/ft (55.4 pF/m) |
| Nom. Inductance | 0.21 μH/ft (0.69 μH/m) |
| Nom. Velocity of Prop. | 78% |
| Max. Current | 2.8 Amps per Conductor at 20oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 27 lbs (12 kg) |
|---|---|
| Bulk Cable Weight | 14 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 1.62 in (41.1 mm) |
|---|---|
| Installation Min. | 1.62 in |
Standards and Compliance
| Flammability / Reaction to Fire | NFPA 262 (UL 910), FT6 |
|---|---|
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.336 Revision Date: 09-07-2025 |
|---|
Resources
Related rs-422 cables

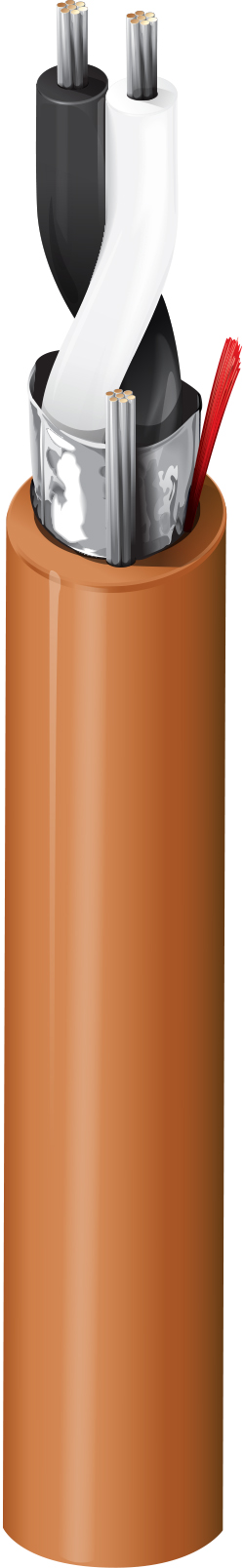

5340FT
