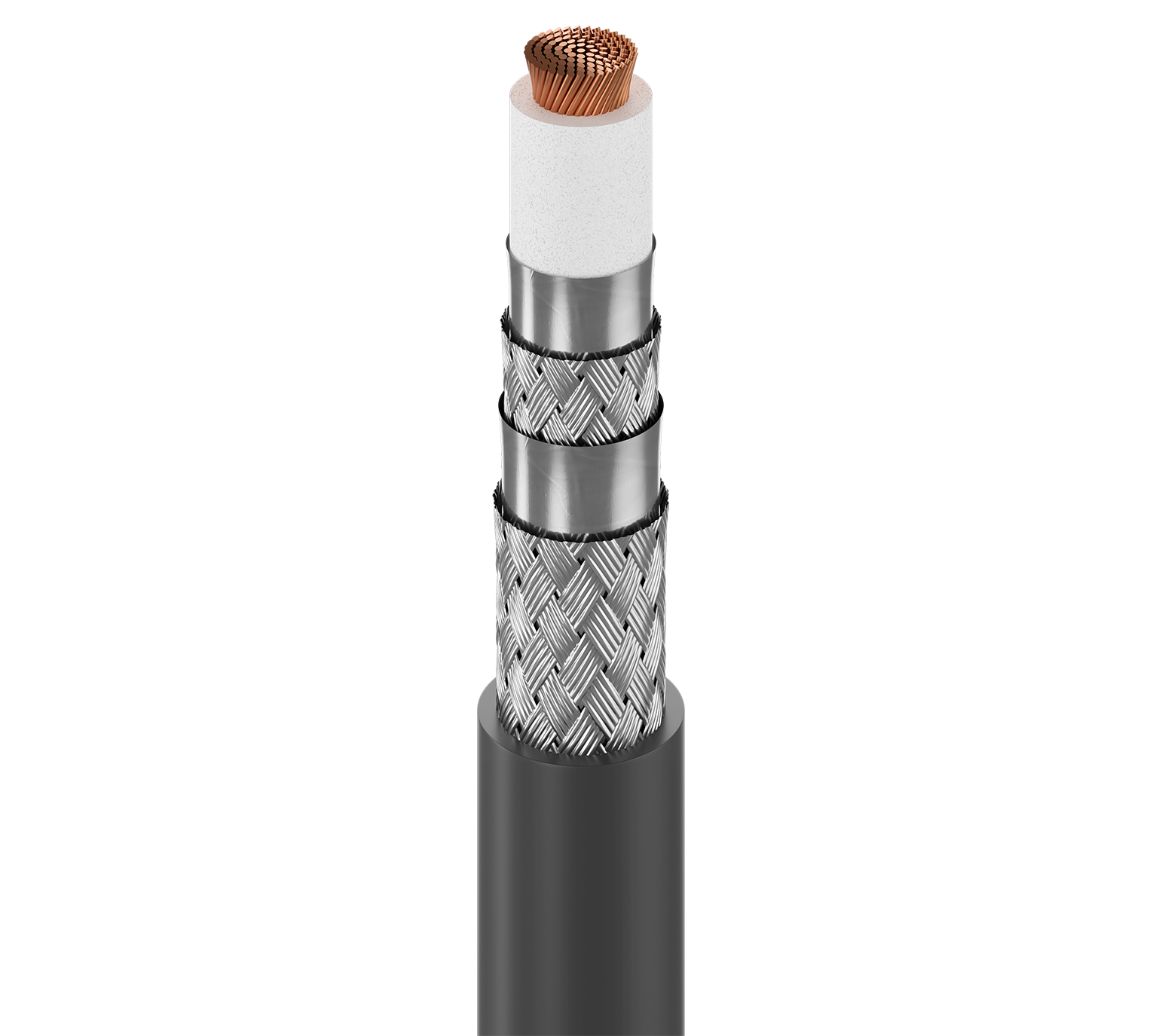

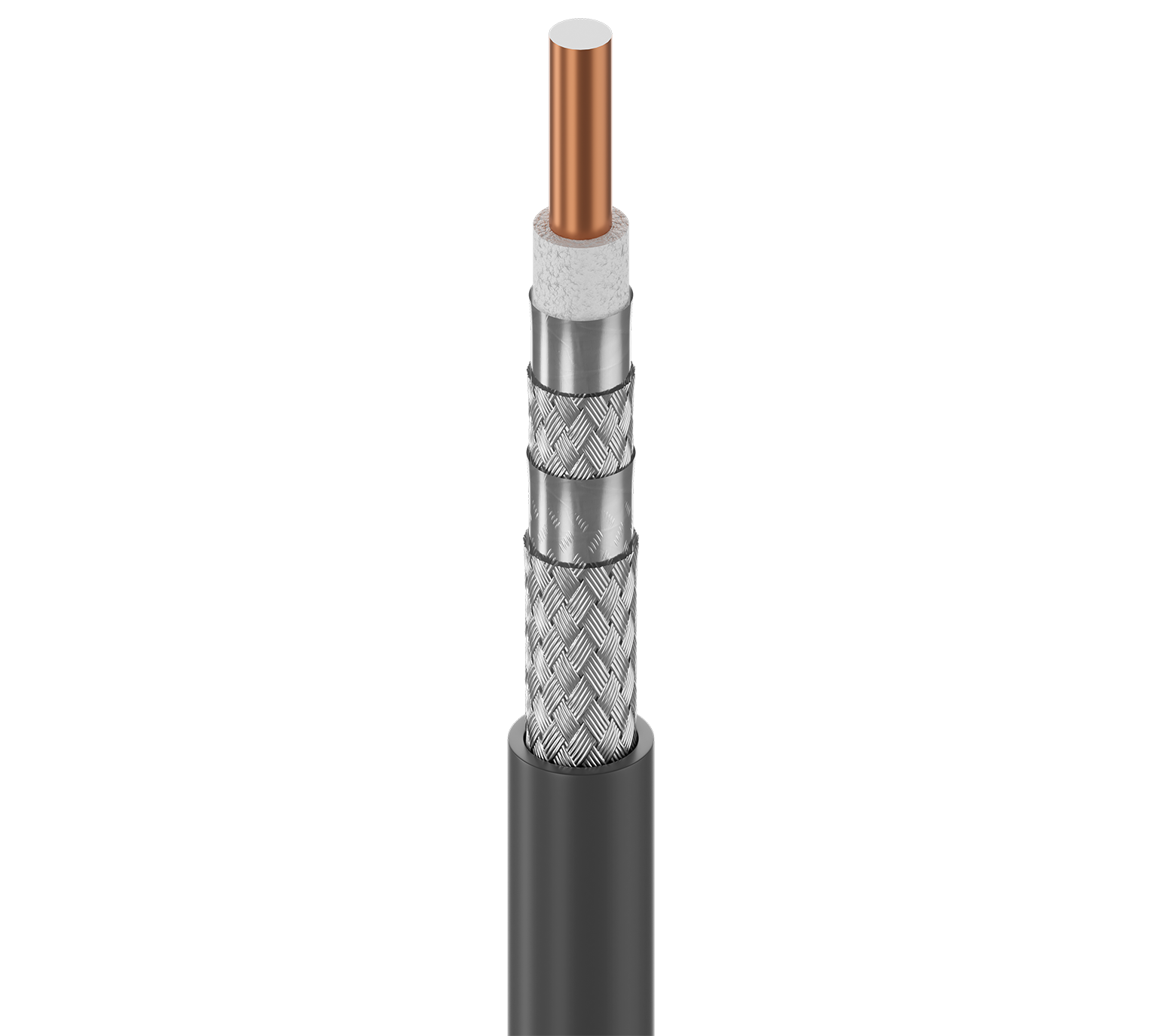

Product Number: 3092F

ControlBusTM, Coax RG-6, #20 Str BC, FPE Ins, QUAD AL Shld, PVC Jkt, High Flex, CMR

Coax RG-6 20 AWG (105x40) Bare Copper, Foam PE Insulation, Overall Duobond® II+Aluminum Braid(60%)+Duofoil®+Aluminum Braid(40%) Shield, PVC Outer Jacket, High Flex, CMR

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

3092F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
3092F 0101000	Black	Reel	1,000 ft	612825141396	Order online
3092F 0105000	Black	Reel	5,000 ft	612825141402	Order online

Specifications

Product Overview

Suitable Applications	Harsh environment, factory automation, ControlNetTM, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications

Construction Details

RG Type	6
Overall Cable Diameter (Nominal)	0.303 in (7.70 mm)

Conductor

Size	20 AWG
Stranding	105x40
Nom. Diameter	0.040 in
Material	BC - Bare Copper

Insulation

Material	PE - Polyethylene (Foam)
Nom. Insulation Diameter	0.183 in (4.65 mm)
Color Code	White

Outer Shield

Layer	Outer Shield Type	Material	Material Trade Name	Coverage
1	Tape	Tri-Laminate (Alum+Poly+Alum)	Duobond® II	100%
2	Braid	Aluminum		60%
3	Tape	Tri-Laminate (Alum+Poly+Alum)	Duofoil®	100%
4	Braid	Aluminum		40%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.303 in (7.70 mm)

Electrical Characteristics

Electrical Characteristics Notes	IEEE 802.4 MAP/IEEE 802.7 Mini-Map

Return Loss

Frequency	5 - 400 MHz
Min. Structural Return Loss	23 dB

Attenuation

Frequency	Nom. Attenuation
1 MHz	0.36 dB/100ft
2 MHz	0.47 dB/100ft
5 MHz	0.8 dB/100ft
10 MHz	1.2 dB/100ft
20 MHz	2.0 dB/100ft
50 MHz	3.2 dB/100ft
100 MHz	4.6 dB/100ft
200 MHz	6.5 dB/100ft
300 MHz	8 dB/100ft
400 MHz	9.3 dB/100ft

Electricals

Nom. Conductor DCR	10.5 Ohm/1000ft
Nom. Outer Shield DCR	2.6 Ohm/1000ft (8.5 Ohm/km)
Nom. Capacitance Cond-to-Shield	16.3 pF/ft (53.5 pF/m)
Nom. Characteristic Impedance	75 Ohm
Nom. Velocity of Prop.	82%

Voltage

UL Voltage Rating	300 V (CMR, CMG)

Mechanical Characteristics

Max. Pull Tension	35 lbs (16 kg)
Bulk Cable Weight	29 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	-40°C to +75°C

Bend Radius

Installation Min.	3 in (76 mm)

Standards and Compliance

Environmental Suitability	Indoor - Riser, Indoor, Aerial - When supported by messenger wire
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL 1666 Riser
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	CMR, CL2R
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	Flex Life: 1.5 Million cycles @ 6.0"" minimum bend radius. For Rockwell authorized Flexible ControlNet order YR28890 (Tinned Copper Braid Version).
