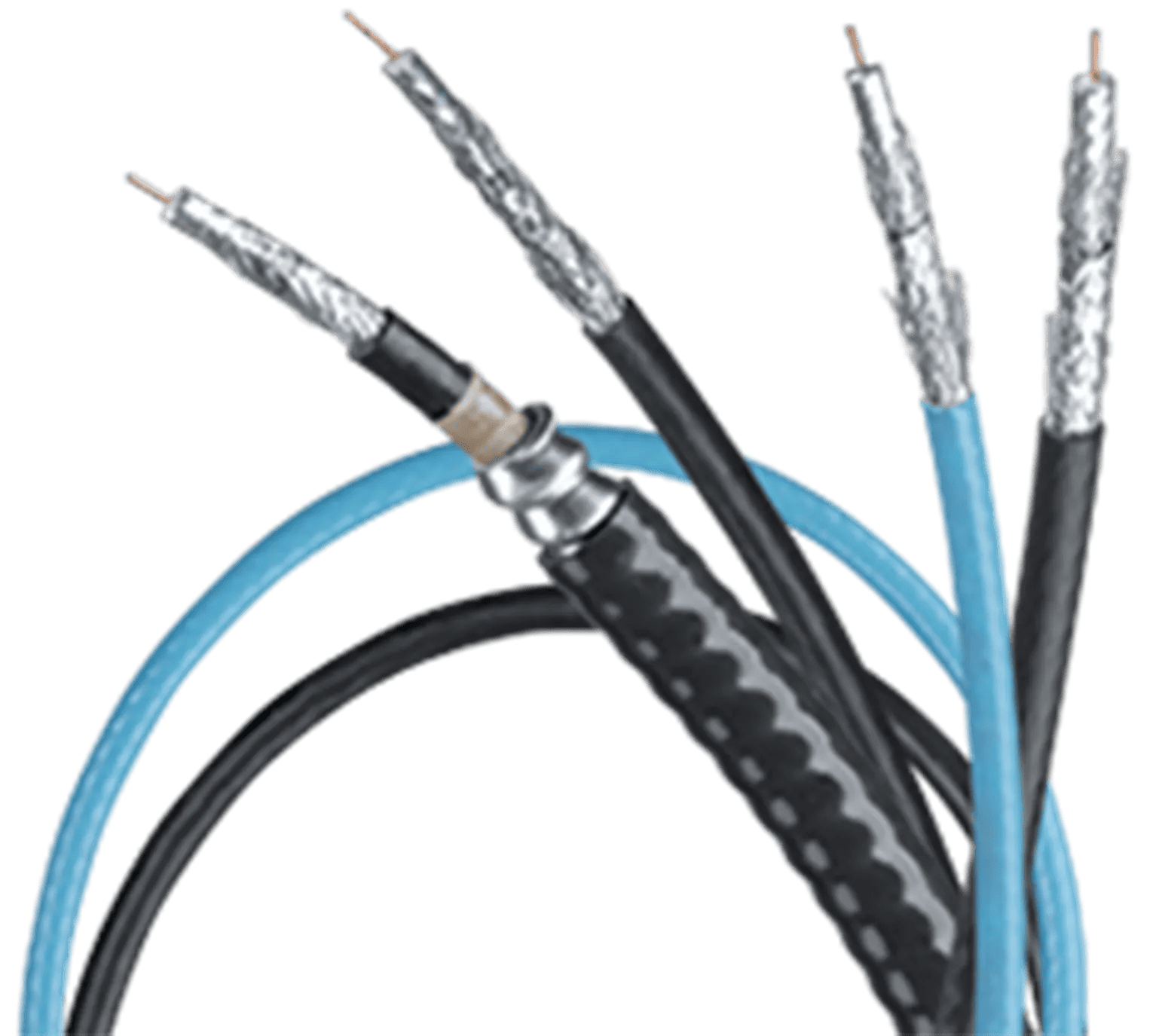

ControlNet Cable
Belden ControlNet Cables provide maximum signal integrity and run lengths that exceed the high-speed, time-critical requirements necessary for ControlNet factory floor applications. The standard construction for this application is RG6, quad-shield coaxial cable designed for compliance with the ControlNet specification.
Features & Benefits
- Support Time-Critical Applications: Converge real-time controls traffic with regular best-effort traffic on an Ethernet network
- Maximum Signal Integrity: A Duobond IV Quad Shield maintains signal strength and run lengths
- Excellent Return Loss: Sweep tested to ensure that critical performance features meet ControlNet requirements
5 product families

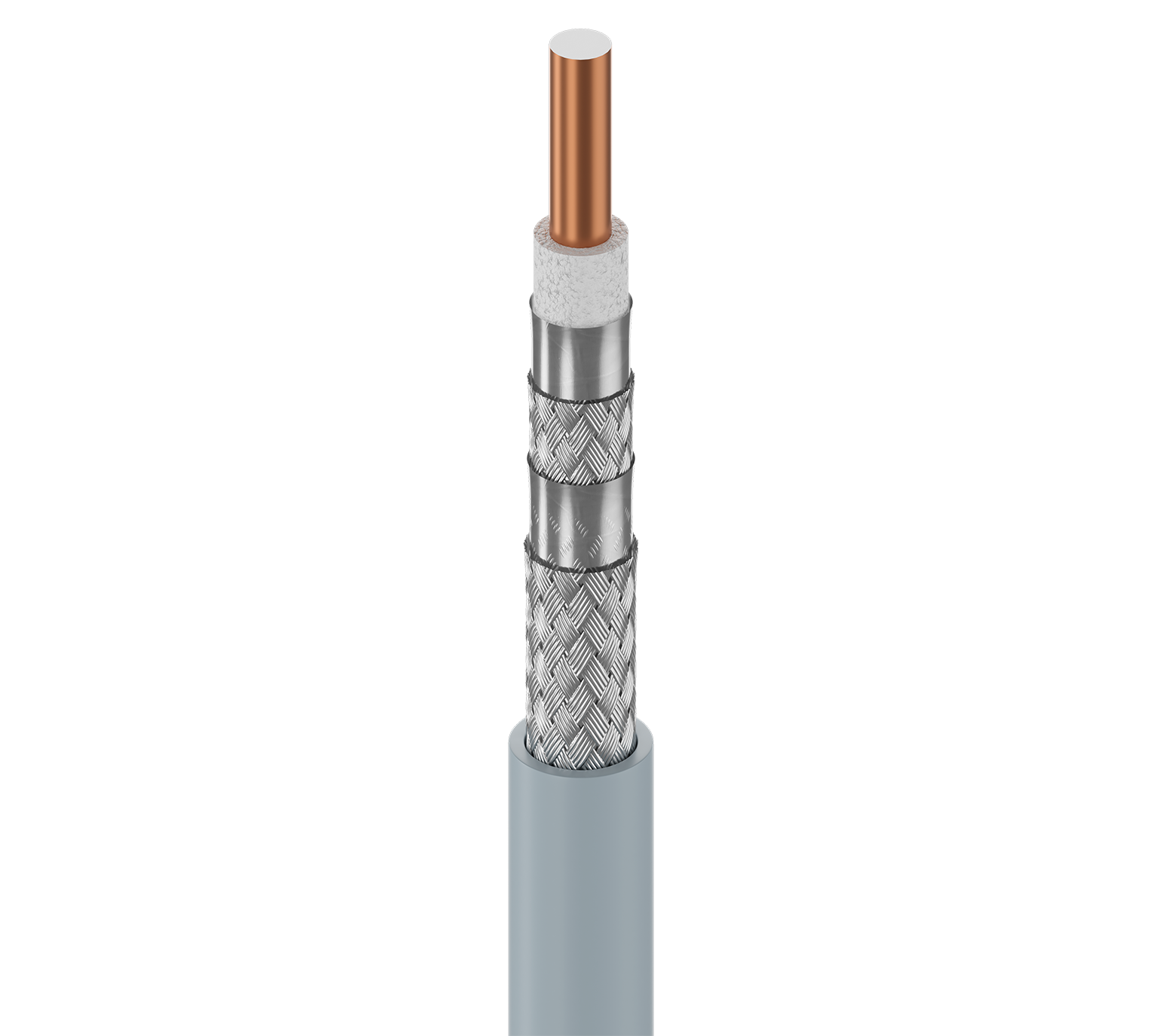

3094A
ControlBusTM, Coax RG-11, #14 Sol BCCS, FPE Ins, QUAD AL Shld, PVC Jkt, CMR
14 AWG · BCCS - Bare Copper Covered Steel · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
3 items

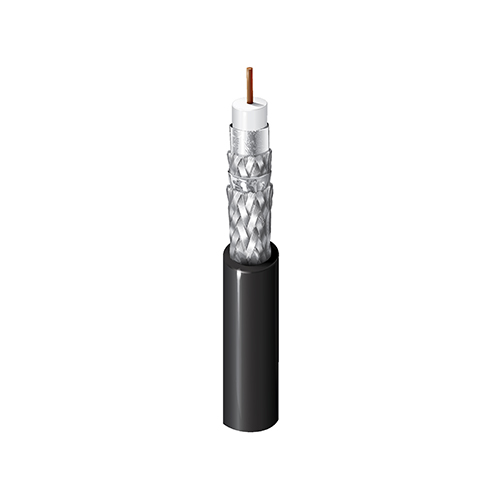

3092T
ControlBusTM, Coax RG6, #18 Sol BCCS, PO Ins, QUAD AL Shld, LSZH Jkt, CMG
18 · BCCS - Bare Copper Covered Steel · PE - Polyethylene (Foam) · PE - Polyethylene
1 item

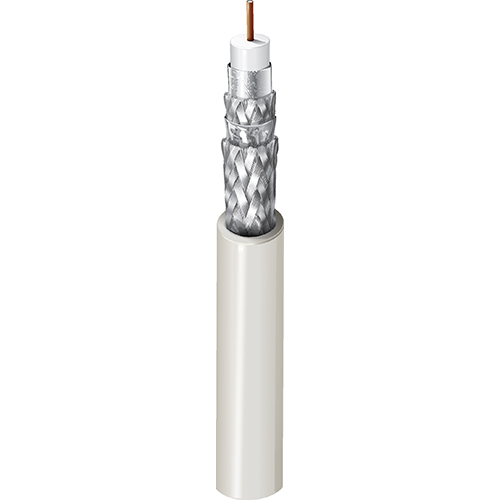

3131A
ControlBusTM, Coax RG6, #18 Sol BCCS, PO Ins, QUAD AL Shld, PVC Jkt, CMR
BCCS - Bare Copper Covered Steel · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
1 item

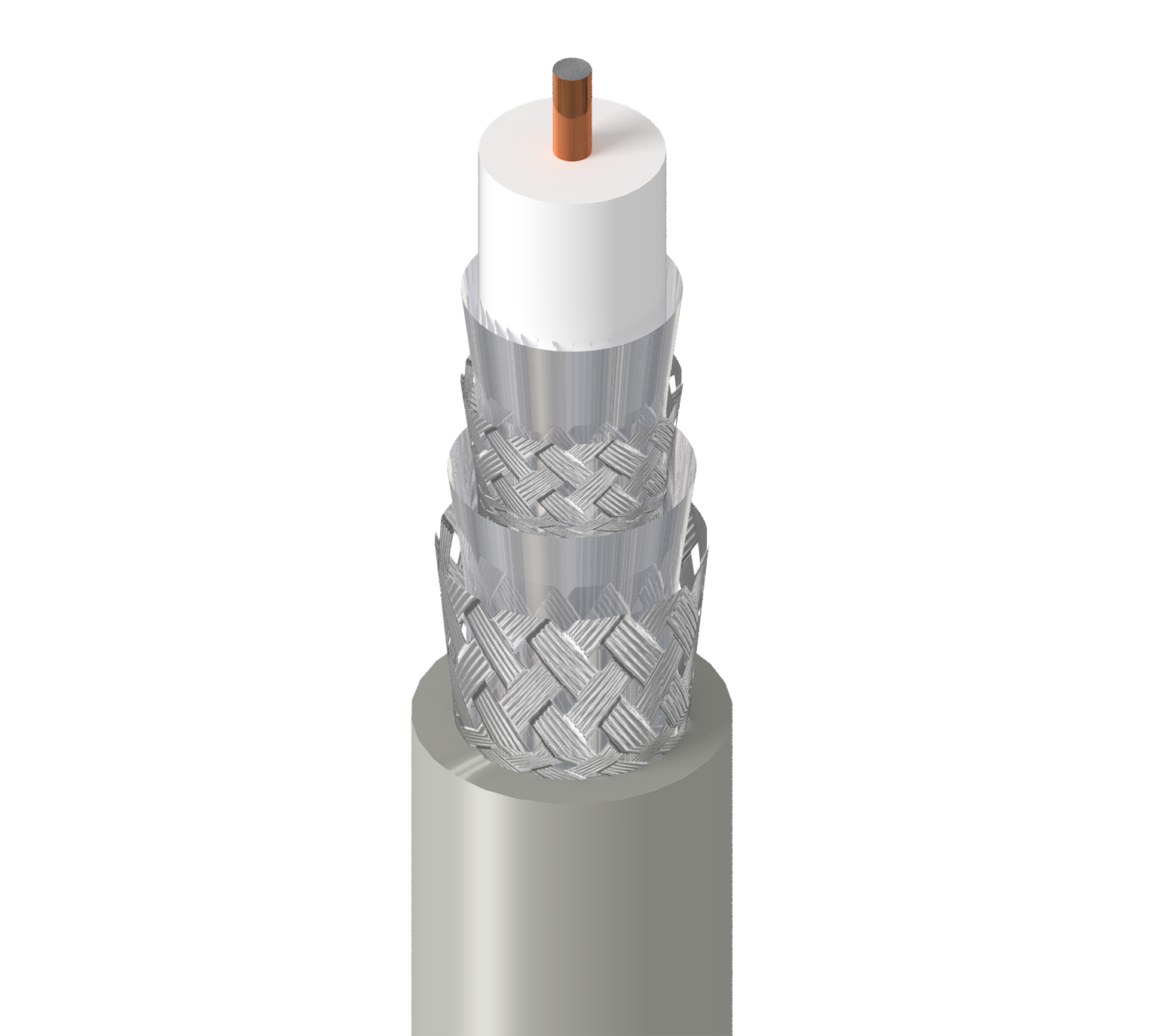

3095A
ControlBusTM, Coax RG11, #14 Sol BCCS, FEP Ins, QUAD AL Shld, PVDF Jkt, CMP
BCCS - Bare Copper Covered Steel · FEP - Fluorinated Ethylene Propylene (Foam) · PVDF - Polyvinylidene Fluoride · 300 V RMS

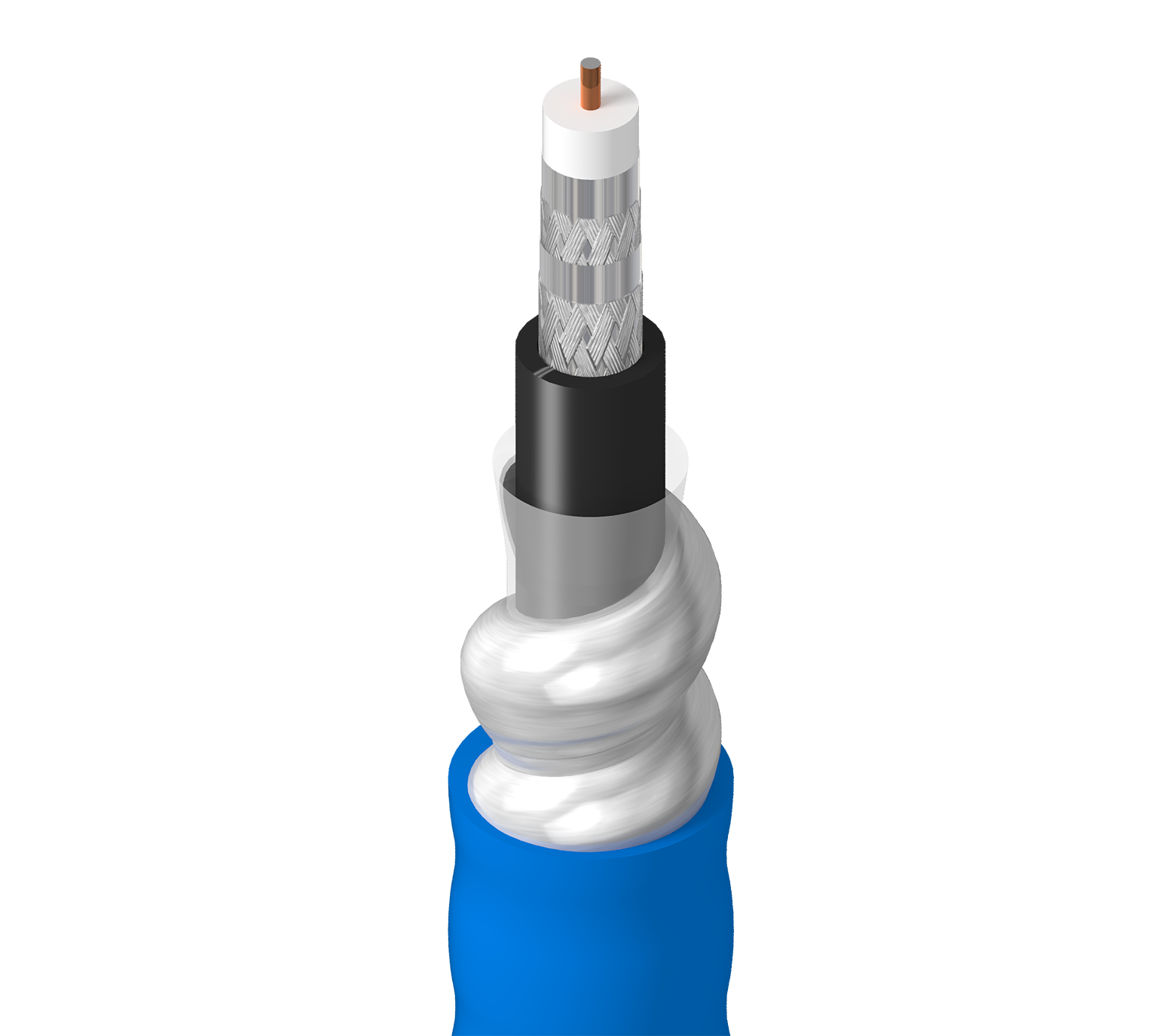

123092A
ControlBusTM, Coax RG6, #18 Sol BCCS, PO Ins, QUAD AL Shld, PVC Jkt, AIA Armor, PVC Jkt, CM
18 AWG · BCCS - Bare Copper Covered Steel · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
