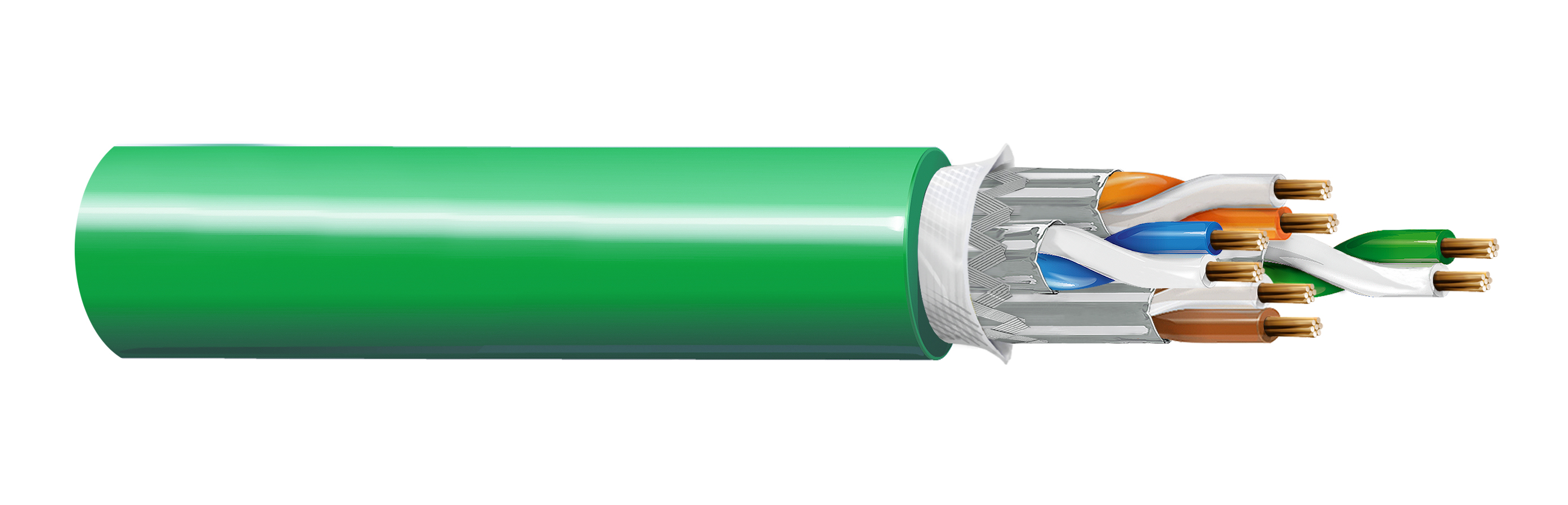

BELDEN INDUSTRIAL ETHERNET CAT6A SHIELDED S/FTP 4PR 24AWG/7 FLEXIBLE CABLE ROHS
BELDEN INDUSTRIAL ETHERNET CAT6A SHIELDED S/FTP 4PR 24AWG/7 FLEXIBLE CABLE ROHS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Ethernet: 10Base-T, 100Base-TX, 1000Base-T, 10GBase-T |
|---|
Construction Details
Conductor
| Size | 24 AWG |
|---|---|
| Stranding | 7x32 |
| Material | BC - Bare Copper |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 1.40 mm (0.0551 in) |
| Color Code | White & Blue, White & Orange, White & Green, White & Brown |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 60% |
| Tapes (Each Pair) | Bi-Laminate (Alum+Poly) | 100% |
Outer Jacket
| Material | TPE - Thermoplastic Elastomer |
|---|---|
| Nom. Diameter | 8.4 mm (0.33 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 95 Ohm/km (29 Ohm/1000ft) |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|
| 4 | 5.7 dB/100m | 66.3 | 56.0 | 23.0 |
| 10 | 9.5 db/100m | 59.5 | 46.4 | 25.0 |
| 16 | 11.5 dB/100m | 57.1 | 44.1 | 25.0 |
| 31.25 | 15.8 dB/100m | 53.1 | 38.0 | 23.3 |
| 62.5 | 22.4 dB/100m | 48.4 | 32.2 | 20.8 |
| 100 | 29.0 dB/100m | 45.2 | 27.8 | 19.0 |
| 200 | 41.1 dB/100m | 40.8 | 22.0 | 17.3 |
| 250 | 46.6 dB/100m | 39.3 | 20.1 | 17.3 |
| 300 | 51.4 dB/100m | 38.2 | 18.5 | 17.3 |
| 350 | 55.8 dB/100m | 37.1 | 17.1 | 17.3 |
| 500 | 67.9 dB/100m | 34.8 | 14.0 | 17.3 |
Mechanical Characteristics
Temperature
| Operating | -40°C To +80°C |
|---|
Bend Radius
| Installation Min. | 150 mm (5.9 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, UV Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | FT2, IEC 60332-1-2 |
| Data Category | Category 6A |
| ISO/IEC Compliance | IEC 11801 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = Zero |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
Product Notes
| Notes | Min No. of Drag Chain Cycles: ≥ 500000, Bending Radius:150mm, Speed: 30cycles/min, Chain length : 1 m. The flexibility testing is conducted at -40°C temperature. |
|---|
History
| Update and Revision | Revision Number: 0.5 Revision Date: 07-22-2026 |
|---|
