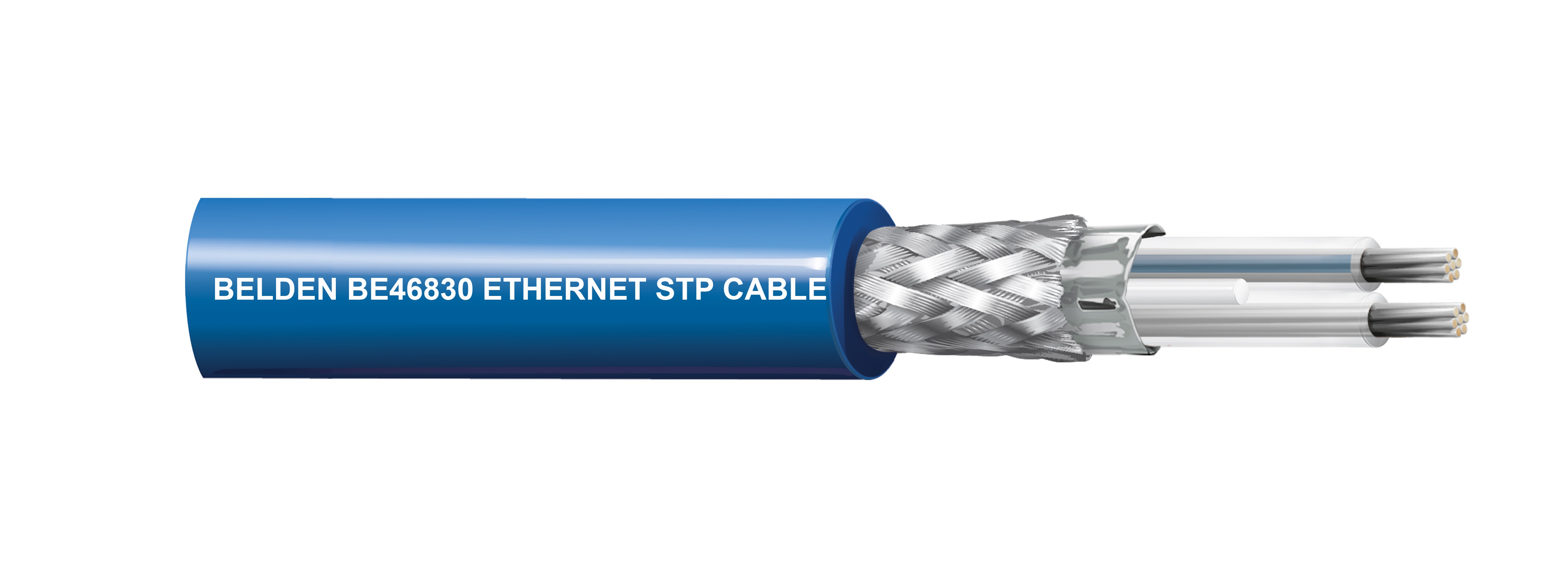

Marine Type SPE 40mGb 22AWG STR SF/UTP SHF1, UV resistant, Outdoor
Marine Type SPE 40mGb 22AWG STR SF/UTP SHF1, UV resistant, Outdoor
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | 1 single pair Ethernet up to 600 MHz |
|---|
Construction Details
Conductor
| Size | 22 AWG |
|---|---|
| Stranding | 7x0.25 mm |
| Material | TC - Tinned Copper |
| No. of Pairs | 1 |
Insulation
| Material | XLP, XLPO, XLPE |
|---|---|
| Nom. Insulation Diameter | 2.10 mm (0.0827 in) |
| Color Code | Nature, Nature & Blue |
Outer Shield
| Shield Type | Material |
|---|---|
| Tape | Bi-Laminate (Alum+Poly) |
| Braid | Tinned Copper (TC) |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (SHF1) |
|---|---|
| Nom. Diameter | 6.20 mm (0.244 in) |
Electrical Characteristics
| Transfer Impedance Class | Grade 1 |
|---|
Electricals
| Max. Conductor DCR | 59.4 Ohm/km (18.1 Ohm/1000ft) |
|---|---|
| Max. Capacitance Unbalance | 160 pF/100m |
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Frequency | 4 MHz |
|---|---|
| Max. Delay | 552 ns/100m |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|
| 1 | 3.0 | 20 | 40 | 40 |
| 10 | 8.7 | 25 | 35 | 20 |
| 20 | 12.3 | 25 | 30.5 | 13.9 |
| 600 | 70.6 | 15.6 | 8.3 | 5 |
Mechanical Characteristics
Temperature
| Operating | -20°C to + 80°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | FT 2, IEC 60332-1-2, IEC 60332-3-22 |
|---|---|
| AWM Compliance | AWM 21307 |
| Data Category | SPE 1000 Mbps |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = 0.5 %, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 70% |
| Other Standard Compliance(s) | IEC 61156-12 NP, UL 758, IEC 60092-376 |
History
| Update and Revision | Revision Number: 0.95 Revision Date: 02-26-2026 |
|---|
