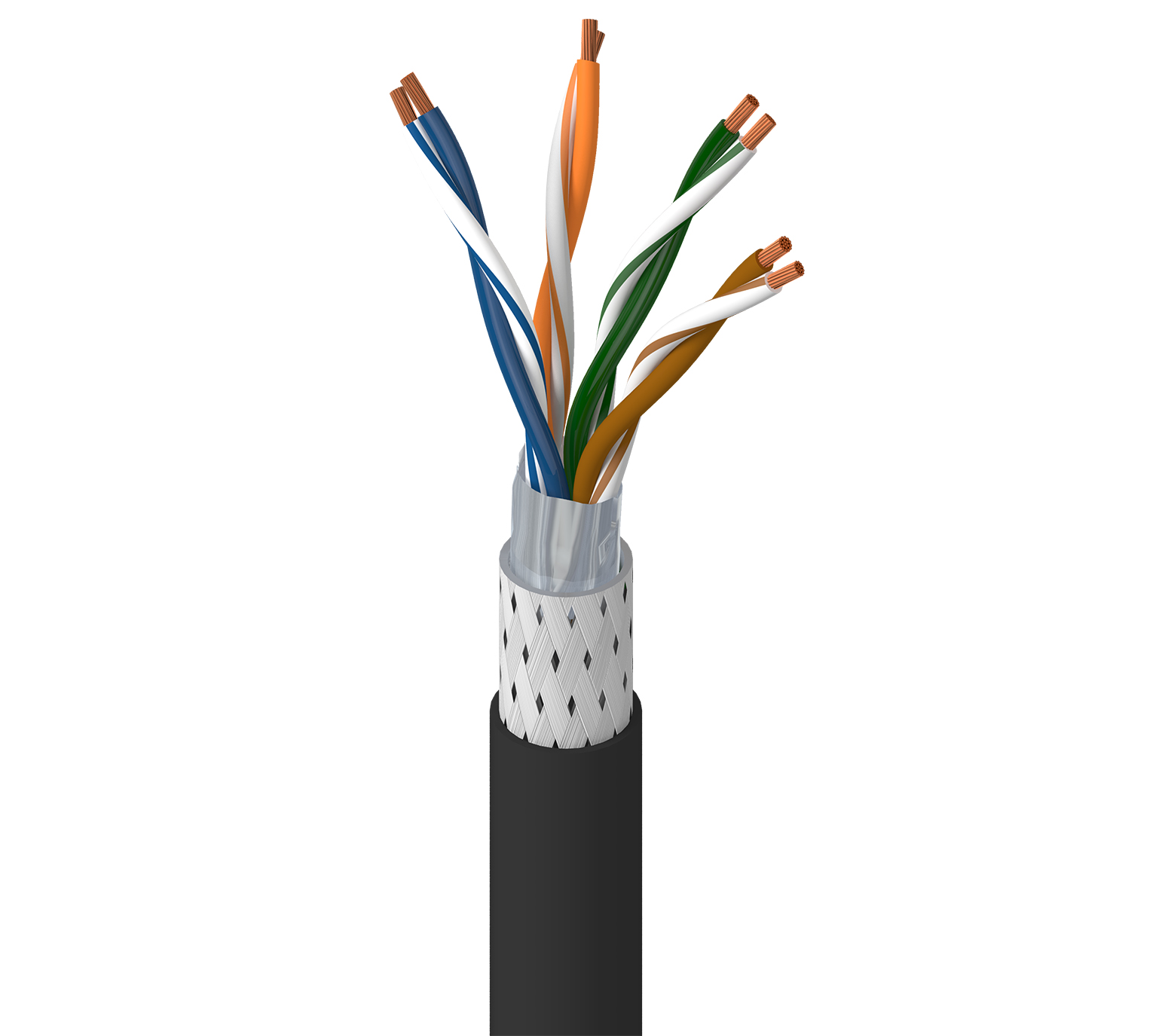

Railtuff ® 5E, 4PR #26 Str BC, PO ins, SF/UTP, LSZH Jkt, EN 45545-2
Railtuff ® 5E, 4 Pair AWG 26 Bare Copper - Stranded, Polyolefin (PO, PE, PP) insulation, SF/UTP - Overall Braid + Foil shielding, Crosslinked e-beam LSZH / FRNC jacket , EN 45545-2 HL1 - 3
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
BE43800 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE43800.00100 | Black | Reel | 100 m | 8719605206381 | Order online |
| BE43800.00305 | Black | Reel | 305 m | 8719605026552 | Order online |
| BE43800.00500 | Black | Reel | 500 m | 8719605026569 | Order online |
| BE43800.001000 | Black | Reel | 1,000 m | 8719605026545 | Order online |
Specifications
Product Overview
| Suitable Applications | For use in railway applications such as rolling stock, buses or other vehicles, cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305 and EN 45545-2 |
|---|
Construction Details
| Outer Jacket1 Table Notes | e-Beamed to Cross-link, Jacket OD +/- 0.3mm |
|---|---|
| Overall Cable Diameter (Nominal) | 6.7 mm (0.26 in) |
Conductor
| Size | 26 AWG |
|---|---|
| Stranding | 19x0.10 mm |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
Insulation
| Material | PO - Polyolefin |
|---|---|
| Nom. Insulation Diameter | 1 mm (0.039 in) |
| Color Code | White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown |
Cable Core
| Description | 4 pairs twisted to cable core |
|---|
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
|---|---|
| Nom. Diameter | 6.7 mm (0.26 in) |
Electrical Characteristics
| High Frequency Table Notes | According ISO/IEC 11801 Cat. 5e and ISO/IEC 61156-5 |
|---|---|
| Transfer Impedance Class | Grade 1 |
| Screening Class | Type I |
| Screening Table Notes | Coupling Attenuation |
Electricals
| Max. Conductor DCR | 145 Ohm/km (44.2 Ohm/1000ft) |
|---|---|
| Max. Mutual Capacitance | 56 pF/m (17 pF/ft) |
| Max. Capacitance Unbalance | 160 pF/100m |
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Max. Delay Skew | 40 ns/100m |
|---|---|
| Nom. Velocity of Prop. | 60% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 3.1 dB/100m | 65.3 | 62.3 | 62.1 | 59.1 | 64 | 61 | 20 | 40 | 35 |
| 4 | 6 dB/100m | 56.3 | 53.3 | 50.3 | 47.3 | 52 | 49 | 23 | 34 | 23 |
| 10 | 9.5 dB/100m | 50.3 | 47.3 | 40.8 | 37.8 | 44 | 41 | 25 | 30 | 15 |
| 16 | 12.1 dB/100m | 47.2 | 44.2 | 35.2 | 32.2 | 39.9 | 36.9 | 25 | 28 | 10.9 |
| 20 | 13.5 dB/100m | 45.8 | 42.8 | 32.2 | 29.2 | 38 | 35 | 25 | 27 | 9 |
| 31.25 | 17.1 dB/100m | 42.9 | 39.9 | 25.8 | 22.8 | 34.1 | 31.5 | 23.6 | 25.1 | 5.5 |
| 62.5 | 24.8 dB/100m | 38.4 | 35.4 | 13.6 | 10.6 | 28.1 | 25.1 | 21.5 | 22 | |
| 100 | 32 dB/100m | 35.3 | 32.3 | 3.3 | 0.3 | 24 | 21 | 20.1 | 20 |
Transfer Impedance
| Frequency | Max. Transfer Impedance |
|---|---|
| 1 Mhz | Max. 10 mOhm/m |
| 10 Mhz | Max. 10 mOhm/m |
| 30 Mhz | Max. 30 mOhm/m |
| 100 Mhz | 100 mOhm/m |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| Operating | -40°C to +90°C |
|---|---|
| Installation | -25°C To +50°C |
| Storage | -40°C to +90°C |
Bend Radius
| Stationary Min. | 33.5 mm (1.32 in) |
|---|---|
| Installation Min. | 67 mm |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-2-25, EN 50305 (9.1.1), DIN 5510-2 protection level 1 to 4 |
| Data Category | Category 5e |
| CENELEC Compliance | EN 45545-2, Segregation class according EN50174-2 = d |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 70% |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.375 Revision Date: 02-20-2026 |
|---|
