RailTuff Cat 5e, PROFINET, AWG 22 (19),EN 45545 HL 1-3, ECE R118.03
RailTuff Railway Approved Cat 5e, PROFINET, AWG 22(19), HiFlex, Premium Cross-linked LSZH Insulation and Jacket, Heavy Shielded, DIN 5510-2 level 1 to 4, EN 50155 Flame Resistance acc EN 45545-2, IEC 60332-1-2, EN 50305 & IEC 60332-3-25 cat D, EN 45545-2 (Class R15 and R16 HL3), Oil Resistance,, ECE R118.03
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
BE43769 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE43769.00305 | Black | Reel | 305 m | 8719605026507 | Order online |
| BE43769.00500 | Black | Reel | 500 m | 8719605026514 | Order online |
Specifications
Product Overview
| Suitable Applications | PROFINET Cat5e, For use in railway applications such as rolling stock, buses or other vehicles, cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305 and EN 45545-2, ECE R118.03 |
|---|
Construction Details
| Conductor Table Notes | IEC 60228 class 5 |
|---|---|
| Inner Jacket Table Notes | Bedding |
| Outer Jacket1 Table Notes | e-Beamed to Cross-link |
| Overall Cable Diameter (Nominal) | 6.7 mm (0.26 in) |
Conductor
| Size | 22 AWG |
|---|---|
| Stranding | 19x0.15 mm |
| Material | TC - Tinned Copper |
| No. of Pairs | 2 |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PO - Polyolefin | 1.57 mm (0.0618 in) | White & Blue & Yellow & Orange |
| 1 Quad |
Cable Core

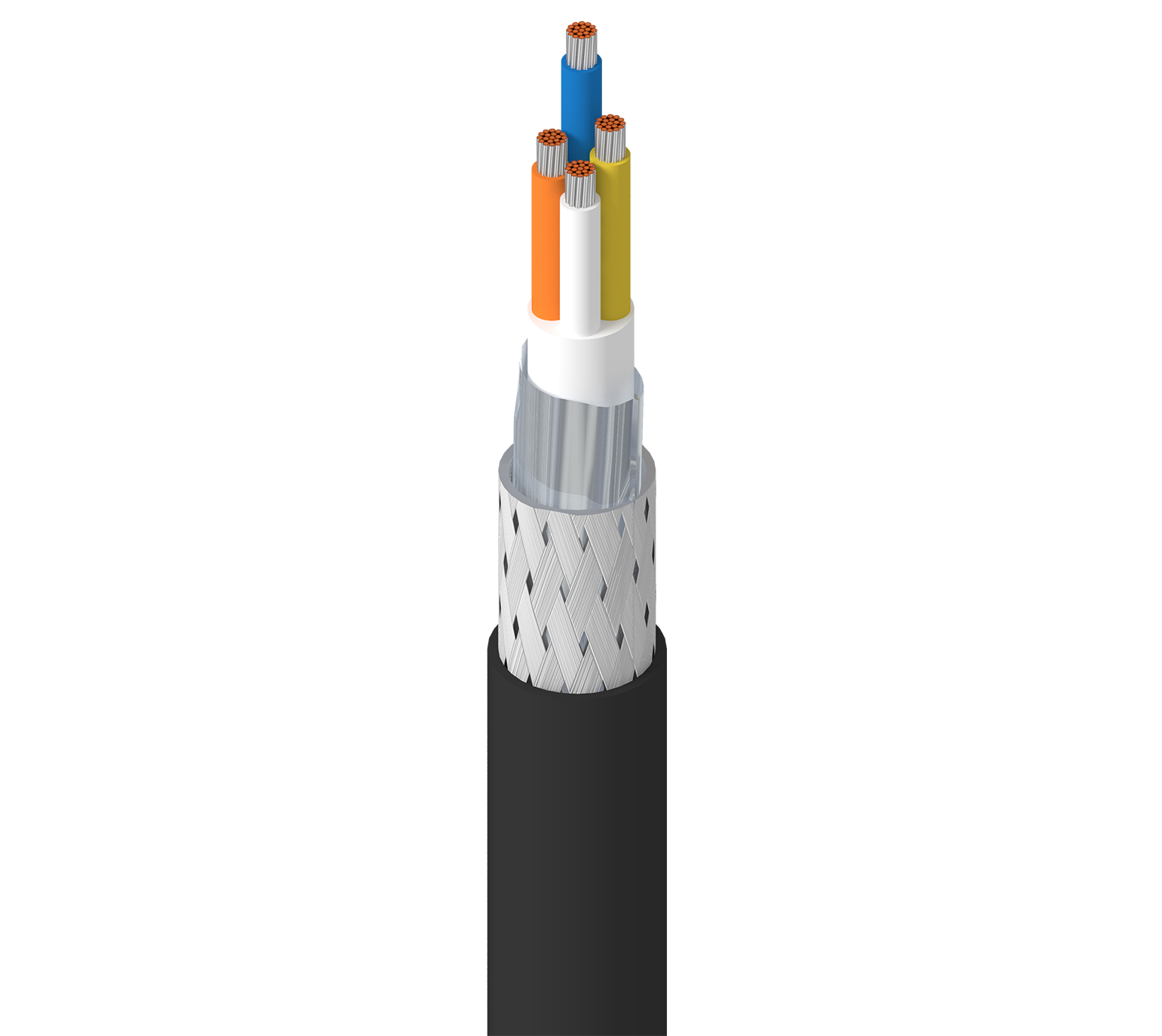

| Description | 1 quad with center filler |
|---|
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
|---|---|
| Nom. Diameter | 4.3 mm (0.17 in) |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
|---|---|
| Nom. Diameter | 6.7 mm (0.26 in) |
Electrical Characteristics
| High Frequency Table Notes | EN 50288-2-2 and ISO/IEC 11801 ed. 2.0, Cat. 5e |
|---|
Electricals
| Max. Conductor DCR | 57.1 Ohm/km (17.4 Ohm/1000ft) |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Max. Delay | 530 ns/100m |
|---|---|
| Nom. Velocity of Prop. | 66% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. FEXT [dB] |
|---|---|---|---|
| 1 | 2.1 | 65.3 | 64 |
| 4 | 4.1 | 56.3 | 52 |
| 10 | 6.5 | 50 | 43.8 |
| 16 | 8.3 | 47 | 40 |
| 31.25 | 11.7 | 42.9 | 33.9 |
| 62.5 | 17 | 38.4 | 28 |
| 100 | 22 | 35.3 | 24 |
Transfer Impedance
| Frequency | 10 Mhz |
|---|---|
| Max. Transfer Impedance | Max. 10 mOhm/m |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Bend Radius Table Notes | Setting (fixed) radius:5*D mm, Reference standard: EN50288-2-2 and ISO/IEC11801 ed. 2.0Cat5e as a minimum |
|---|---|
| Bulk Cable Weight | 68 kg/km (46 lbs/1000ft) |
Temperature
| Operating | -40°C to +90°C |
|---|---|
| Installation | -25°C To +50°C |
| Storage | -40°C to +90°C |
Bend Radius
| Stationary Min. | 33.5 mm (1.32 in) |
|---|---|
| Installation Min. | 67 mm (2.6 in) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-3-25, UN ECE R118.03 |
| IEEE Compliance | POE per 802.3af & POE+ 802.3at-2009 |
| Data Category | Category 5e |
| CENELEC Compliance | EN 45545-2 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 70% |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.300 Revision Date: 02-20-2026 |
|---|
