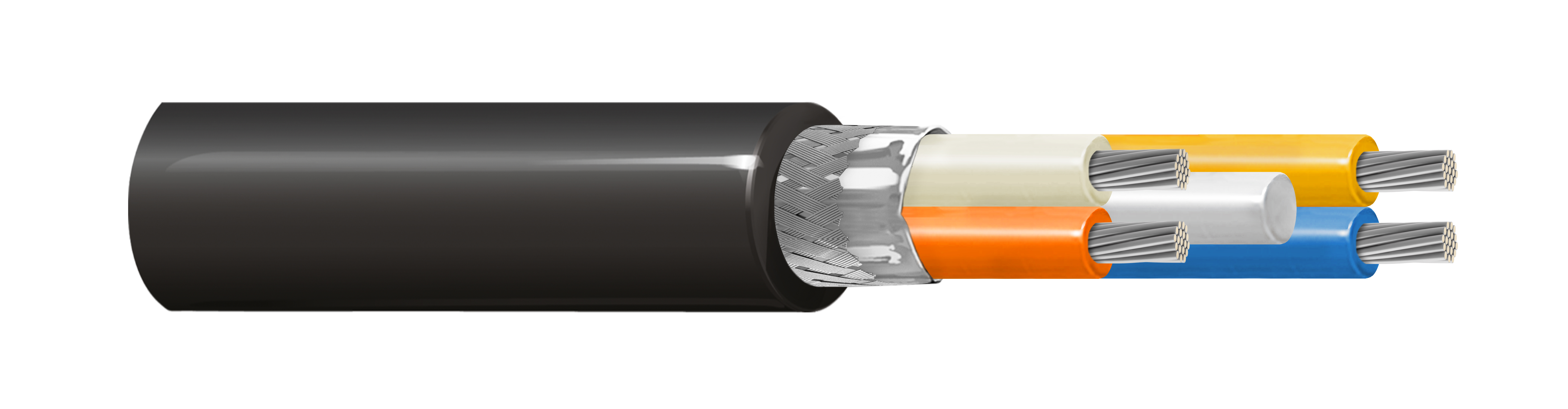

RailTuffTM Cat 5e SF/UTP 100Ω 4x0.5mm2 (QUAD)
4C (QUAD), 0.5mm2 stranded tinned copper conductors, Polyolefin insulation, shielded, E-beam X-FRNC/LSNH outer jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
BA43992 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| BA43992 010500M | Black | 500 m | Order online |
Specifications
Product Overview
| Suitable Applications | PROFINET Cat 5e, For use in railway applications such as rolling stock, buses or other vehicles, cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305, EN 45545-2, and TJ/CL-313 |
|---|
Construction Details
| Outer Jacket1 Table Notes | e-Beamed to Cross-link |
|---|---|
| Overall Cable Diameter (Nominal) | 8.0 mm (0.31 in) |
Conductor
| Size | 0.5 mm2 |
|---|---|
| Stranding | 19x0.18 mm |
| No. of Pairs | 2 |
Insulation
| Material | PO - Polyolefin |
|---|---|
| Nom. Insulation Diameter | 2.2 mm (0.087 in) |
| Color Code | White & Blue & Yellow & Orange |
Cable Core
| Description | 1 quad with center filler |
|---|
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|
Electrical Characteristics
| High Frequency Table Notes | High frequency (at 20°), reference standard: ISO/IEC61156-5 |
|---|
Electricals
| Max. Conductor DCR | 40.1 Ohm/km (12.2 Ohm/1000ft) |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Max. Delay Skew | 570 ns/100m |
|---|
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. FEXT [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|
| 1 | 2.1 | 65.3 | 64.0 | 20.0 |
| 4 | 4.1 | 56.3 | 52.0 | 23.0 |
| 10 | 6.5 | 50.3 | 44.0 | 25.0 |
| 16 | 8.3 | 47.2 | 39.9 | 25.0 |
| 20 | 9.4 | 45.8 | 38.0 | 25.0 |
| 31.25 | 11.7 | 42.9 | 34.1 | 23.6 |
| 62.5 | 17 | 38.4 | 28.1 | 21.5 |
| 100 | 22 | 35.3 | 24.0 | 20.1 |
Transfer Impedance
| Frequency | 10MHz |
|---|---|
| Max. Transfer Impedance | Max. 200 mOhm/m |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Table Notes | 86 kg/km |
|---|---|
| Bend Radius Table Notes | Setting (fixed) radius:5*D mm, Reference standard: IEC60288-2-2 and ISO/IEC11801 ed. 2.0Cat5e as a minimum |
| Bulk Cable Weight | 86 kg/km (58 lbs/1000ft) |
Temperature
| Operating | -40°C to +90°C |
|---|---|
| Installation | -5°C To +50°C |
| Storage | -40°C to +90°C |
Bend Radius
| Installation Min. | 10*D mm |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-3-25, UN ECE R118.03 |
| IEEE Compliance | POE per 802.3af & POE+ 802.3at-2009 |
| Data Category | Category 5e |
| CENELEC Compliance | EN 45545-2 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.25 Revision Date: 02-26-2026 |
|---|
