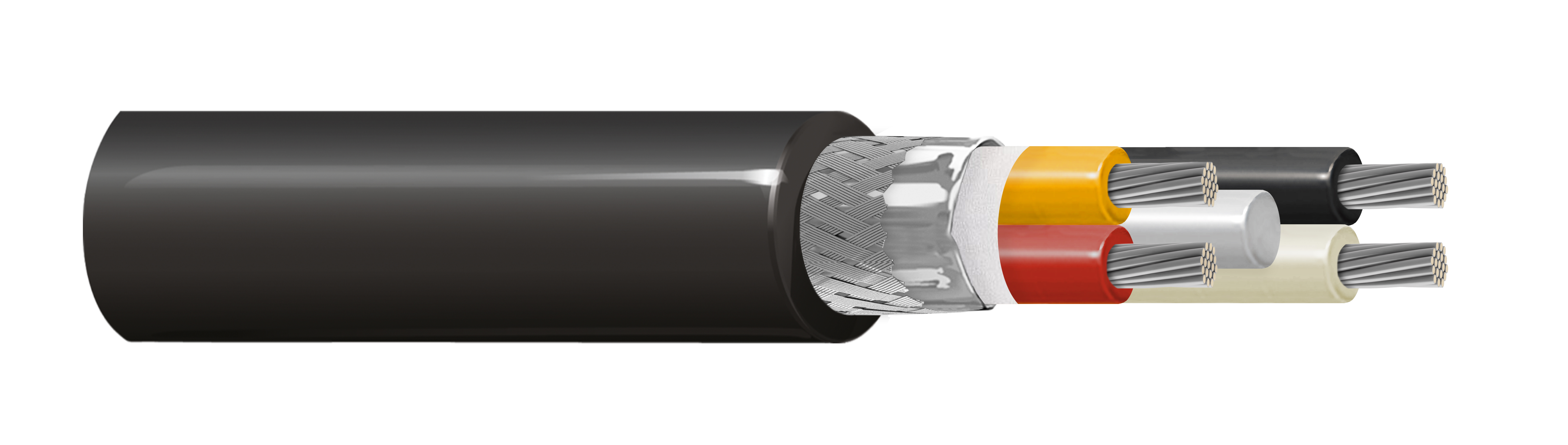

RailTuffTM MVB Type Railway CAN BUS Cable with X-LSZH Material
4C (QUAD), 20AWG stranded tinned copper conductors, XL-Foam PE insulation, shielded, XL-LSZH outer jacket
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | MVB (multi functional vehicle bus) data cable for fixed and protected installations inside and outside of rail vehicles. This cable is applied for digital signal transmission with good transmission rate at the high frequencies. It is suitable for wiring of the components in the train communication network (TCN) inside the car and coach. This cable can also be used for CAN-Bus applications. This cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305, EN 45545-2, and TJ/CL-313. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 7.9 mm (0.31 in) |
|---|
Conductor
| Size | 20 AWG |
|---|---|
| Stranding | Stranded |
| Material | TC - Tinned Copper |
| No. of Pairs | 2 |
| Notes | Nom. Conductor Stranding 19/0.20 mm |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 2.20 mm (0.0866 in) |
| Color Code | 1.Red 2.Yellow 3.Black 4. White |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
|---|
Electrical Characteristics
| Electricals Table Notes | Core to Shield: 80 nF/km (Max.), NEXT: >55 dB @ 0.75-3.0 MHz |
|---|
Electricals
| Max. Conductor DCR | Max. 33.1 Ohm/km |
|---|---|
| Max. Mutual Capacitance | 46 pF/m (14 pF/ft) |
| Nom. Characteristic Impedance | 120 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] |
|---|---|
| 1.5 | 1.5 |
| 3.0 | 2 |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 80 kg/km (54 lbs/1000ft) |
|---|
Temperature
| Operating | -40°C to +85°C |
|---|
Bend Radius
| Installation Min. | 10D |
|---|
Standards and Compliance
| Environmental Suitability | Indoor, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-3-25 |
| CENELEC Compliance | EN 45545-2 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.22 Revision Date: 02-26-2026 |
|---|
