BA43769

Product Number: BA43769

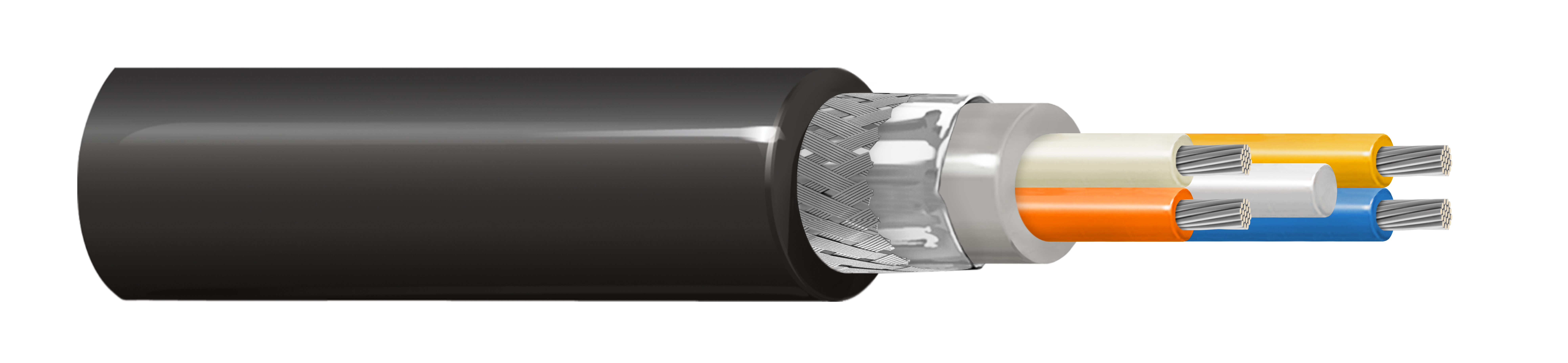

RailTuffTM Cat 5e SF/UTP 100Ω 4x22AWG (QUAD)

4C (QUAD), 22AWG stranded tinned copper conductors, Polyolefin insulation, shielded, E-beam X-FRNC/LSNH outer jacket

Availability
Global
Status
Active
Orderable items
1
Request a quoteOrder options (1)

Ships from and sold by A5 IT.

Part numbers

BA43769 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorLengthOrder
BA43769 010500MBlack500 mOrder online

Specifications

Product Overview

Suitable ApplicationsPROFINET Cat 5e, For use in railway applications such as rolling stock, buses or other vehicles, cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305, EN 45545-2, and TJ/CL-313

Construction Details

Inner Jacket Table NotesBedding
Outer Jacket1 Table Notese-Beamed to Cross-link
Overall Cable Diameter (Nominal)6.7 mm (0.26 in)

Conductor

Size22 AWG
Stranding19x0.15 mm
No. of Pairs2

Insulation

MaterialPO - Polyolefin
Nom. Insulation Diameter1.57 mm (0.0618 in)
Color CodeWhite & Blue & Yellow & Orange

Cable Core

Description1 quad with center filler

Inner Jacket

MaterialLSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset)
Nom. Diameter4.3 mm (0.17 in)

Outer Shield

Shield TypeMaterialCoverage
TapeBi-Laminate (Alum+Poly)
BraidTinned Copper (TC)80%

Outer Jacket

MaterialLSZH - Low Smoke Zero Halogen (Flame Retardant)

Electrical Characteristics

High Frequency Table NotesHigh frequency (at 20°), reference standard: ISO/IEC61156-5
Voltage Rating Table NotesLow frequency and D.C. (at 20°C)

Electricals

Max. Conductor DCR57.1 Ohm/km (17.4 Ohm/1000ft)
Nom. Characteristic Impedance100 Ohm

High Frequency

Frequency [MHz]Max. Insertion Loss (Attenuation) [dB/100m]Min. NEXT [dB]Min. ACR [dB]Min. FEXT [dB]Min. RL (Return Loss) [dB]
12.165.363.264.020.0
44.156.352.3252.023.0
106.550.344.044.025.0
168.347.239.239.925.0
209.445.836.838.025.0
31.2511.742.931.534.123.6
62.51738.421.928.121.5
1002235.314.024.020.1

Transfer Impedance

Max. Transfer ImpedanceMax. 10 mOhm/m

Voltage

UL Voltage Rating300 V

Mechanical Characteristics

Bend Radius Table NotesSetting (fixed) radius:5*D mm, Reference standard: IEC60288-2-2 and ISO/IEC11801 ed. 2.0Cat5e as a minimum
Bulk Cable Weight86 kg/km (58 lbs/1000ft)

Temperature

Operating-40°C to +90°C
Installation-5°C to +50°C
Storage-40C to +90°C

Bend Radius

Installation Min.10*D mm

Standards and Compliance

Environmental SuitabilityIndoor
Flammability / Reaction to FireIEC 60332-1-2, IEC 60332-3-25, UN ECE R118.03
IEEE CompliancePOE per 802.3af & POE+ 802.3at-2009
Data CategoryCategory 5e
CENELEC ComplianceEN 45545-2
European Halogen Free StandardsIEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
European Directive ComplianceEU CE Mark

History

Update and RevisionRevision Number: 0.30 Revision Date: 02-26-2026
