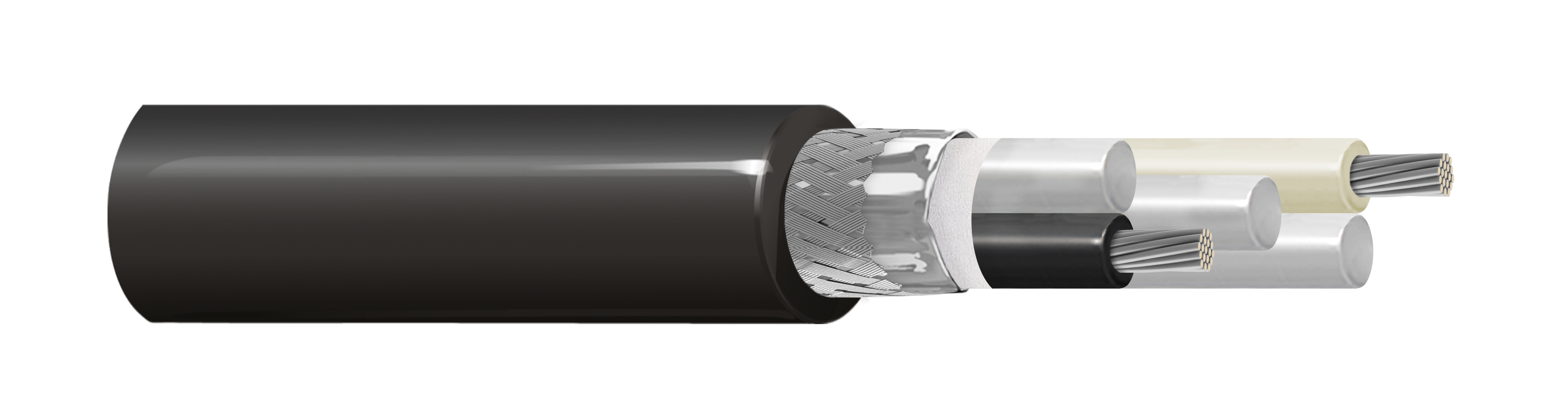

RailTuffTM 2C MVB CANBUS Railway TCN Cable with LSZH Material
2CX20AWG Stranded Tinned Copper Conductors, Foam Polyolefin, Shield and XL-LSZH Sheath
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
BA43102 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Length | Order |
|---|---|---|
| BA43102 010305M | 305 m | Order online |
Specifications
Product Overview
| Suitable Applications | MVB (multi functional vehicle bus) data cable for fixed and protected installations inside and outside of rail vehicles. This cable is applied for digital signal transmission with good transmission rate at the high frequencies. It is suitable for wiring of the components in the train communication network (TCN) inside the car and coach. This cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305, EN 45545-2, and TJ/CL-313. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 7.9 mm (0.31 in) |
|---|
Conductor
| Size | 20 AWG |
|---|---|
| No. of Pairs | 1 |
| Notes | Nom. Conductor Stranding: 19/0.20 mm |
Insulation
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PO - Polyolefin (Foam) | 2.2 mm (0.087 in) | Black & White | Signal Core |
| PO - Polyolefin | 2.2 mm (0.087 in) | Natural | Filler |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. 36.7 Ohm/km |
|---|---|
| Nom. Characteristic Impedance | 120 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] |
|---|---|
| 1.5 | 1.5 |
| 3 | 2 |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| Operating | -40°C to +85°C |
|---|---|
| Installation | -20°C to +50°C |
Bend Radius
| Installation Min. | 5×D |
|---|
Standards and Compliance
| Environmental Suitability | Indoor, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-3-25 |
| CENELEC Compliance | EN 45545-2 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU CE Mark |
Product Notes
| Notes | Capacitance:Core to Core: 46 nF/km (Max.), Core to Shield: 80 nF/km (Max.) |
|---|
History
| Update and Revision | Revision Number: 0.24 Revision Date: 02-26-2026 |
|---|
