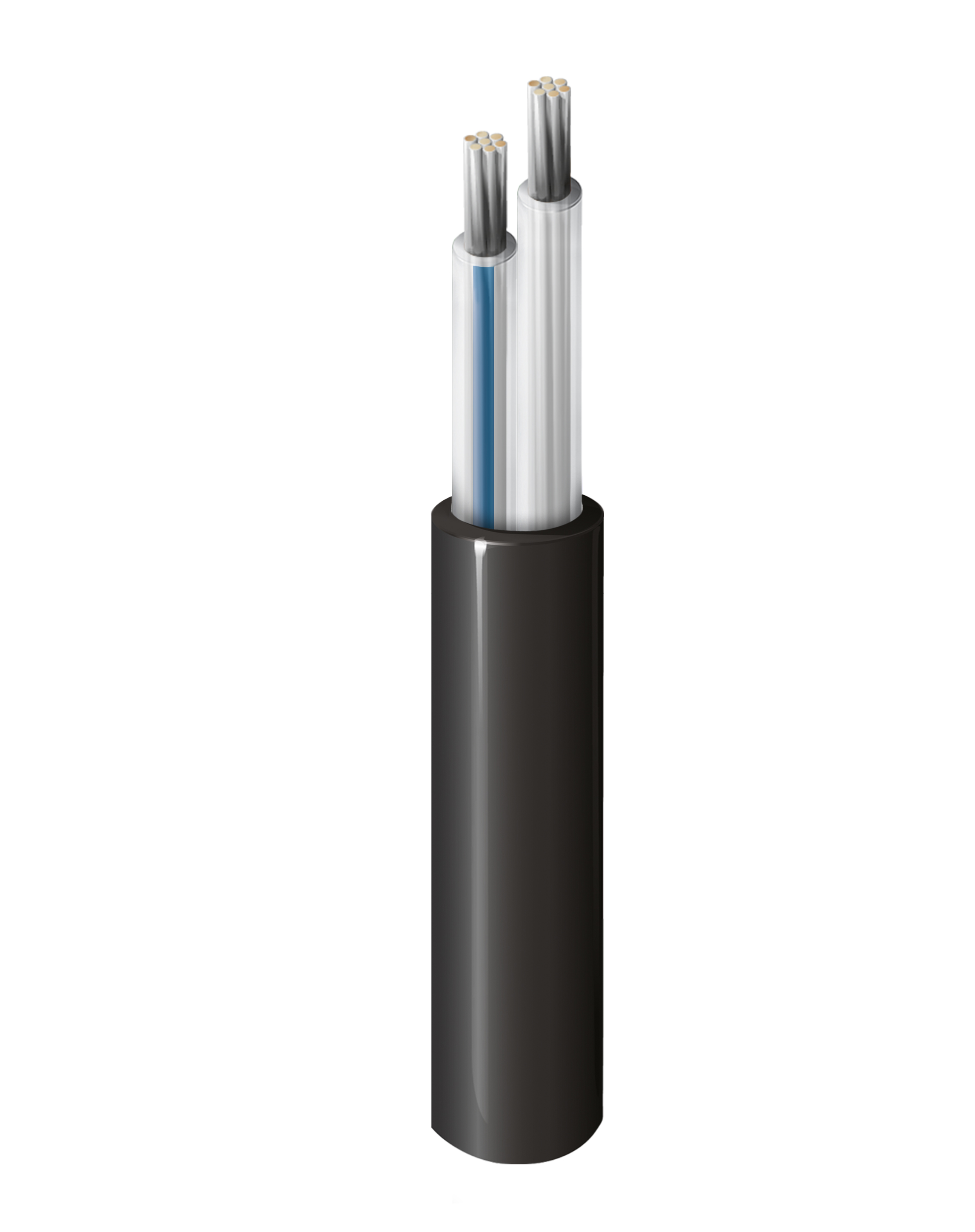

AUTOMOTIVE ETHERNET SPE 100MBPS 1P 26AWG J/UTP PVC
AUTOMOTIVE ETHERNET SPE 100MBPS 1P 26AWG J/UTP PVC
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Automotive Ethernet |
|---|
Construction Details
Conductor
| Size | 26 AWG |
|---|---|
| Stranding | 7x34 |
| Material | TC - Tinned Copper |
| No. of Pairs | 1 |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nom. Insulation Diameter | 0.88 mm (0.035 in) |
| Color Code | Natural & Natural/Blue |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 3.00 mm (0.118 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 150 Ohm/km (46 Ohm/1000ft) |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|
| 1 | 0.06 | 20.0 |
| 10 | 0.16 | |
| 20 | 20.0 | |
| 33 | 0.31 | |
| 66 | 0.45 | 14.8 |
Voltage
| Voltage Rating | 60 V |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 11.4 kg/km (7.66 lbs/1000ft) |
|---|
Temperature
| Operating | -40°C To +105°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | FT2 |
|---|---|
| IEEE Compliance | IEEE 802.3bw |
| Data Category | SPE 100 Mbps |
Product Notes
| Notes | Cabling: 2C, Direction: S, Pitch: <lt/ =15 |
|---|
History
| Update and Revision | Revision Number: 0.67 Revision Date: 02-26-2026 |
|---|
