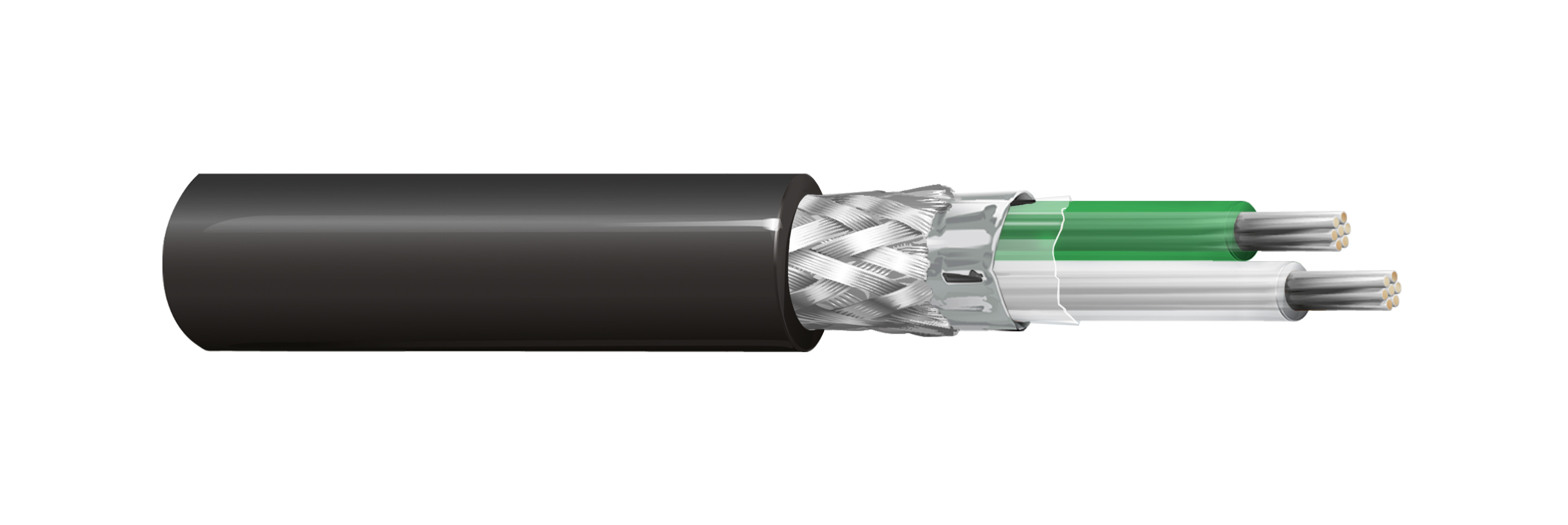

AUTOMOTIVE ETHERNET SPE 10GBPS 1P 26AWG STP PVC
AUTOMOTIVE ETHERNET SPE 10GBPS 1P 26AWG STP PVC
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | For telecommunication equipment, Automotive Ethernet |
|---|
Construction Details
Conductor
| Size | 26 |
|---|---|
| Stranding | 7x34 |
| Material | TC - Tinned Copper |
| No. of Pairs | 1 |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nom. Insulation Diameter | 1.24 mm (0.0488 in) |
| Color Code | White & Green |
| Notes | Foamed PP |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 3.80 mm (0.150 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 150 Ohm/km (46 Ohm/1000ft) |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] |
|---|---|---|
| 1 | 0.68 dB | 20 |
| 250 | 8.66 dB | 20 |
| 500 | 12.14 dB | 20 |
| 750 | 14.87 dB | 18 |
| 1000 | 17.22 dB | 17 |
| 1250 | 19.33 dB | 16 |
| 1500 | 21.27 dB | 15 |
| 1750 | 23.08 dB | 14 |
| 2000 | 24.80 dB | 14 |
| 2250 | 26.43 dB | 13 |
| 2500 | 27.99 dB | 13 |
| 2750 | 29.50 dB | 12 |
| 3000 | 30.96 dB | 12 |
| 3250 | 32.37 dB | 12 |
| 3500 | 33.75 dB | 12 |
| 3750 | 35.09 dB | 12 |
| 4000 | 36.41 dB | 12 |
Screening
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 MHz | 45 dB |
| 4000 MHz | 45 dB |
Voltage
| Voltage Rating | 60 V |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 25.5 kg/km (17.1 lbs/1000ft) |
|---|
Temperature
| Operating | -40°C To +105°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | FT2, IEC 60332-1 Flammability |
|---|---|
| IEEE Compliance | IEEE 802.3ch |
| Data Category | SPE 10 Gbps |
Product Notes
| Notes | Cabling: 2C, Direction: S |
|---|
History
| Update and Revision | Revision Number: 0.29 Revision Date: 02-26-2026 |
|---|
