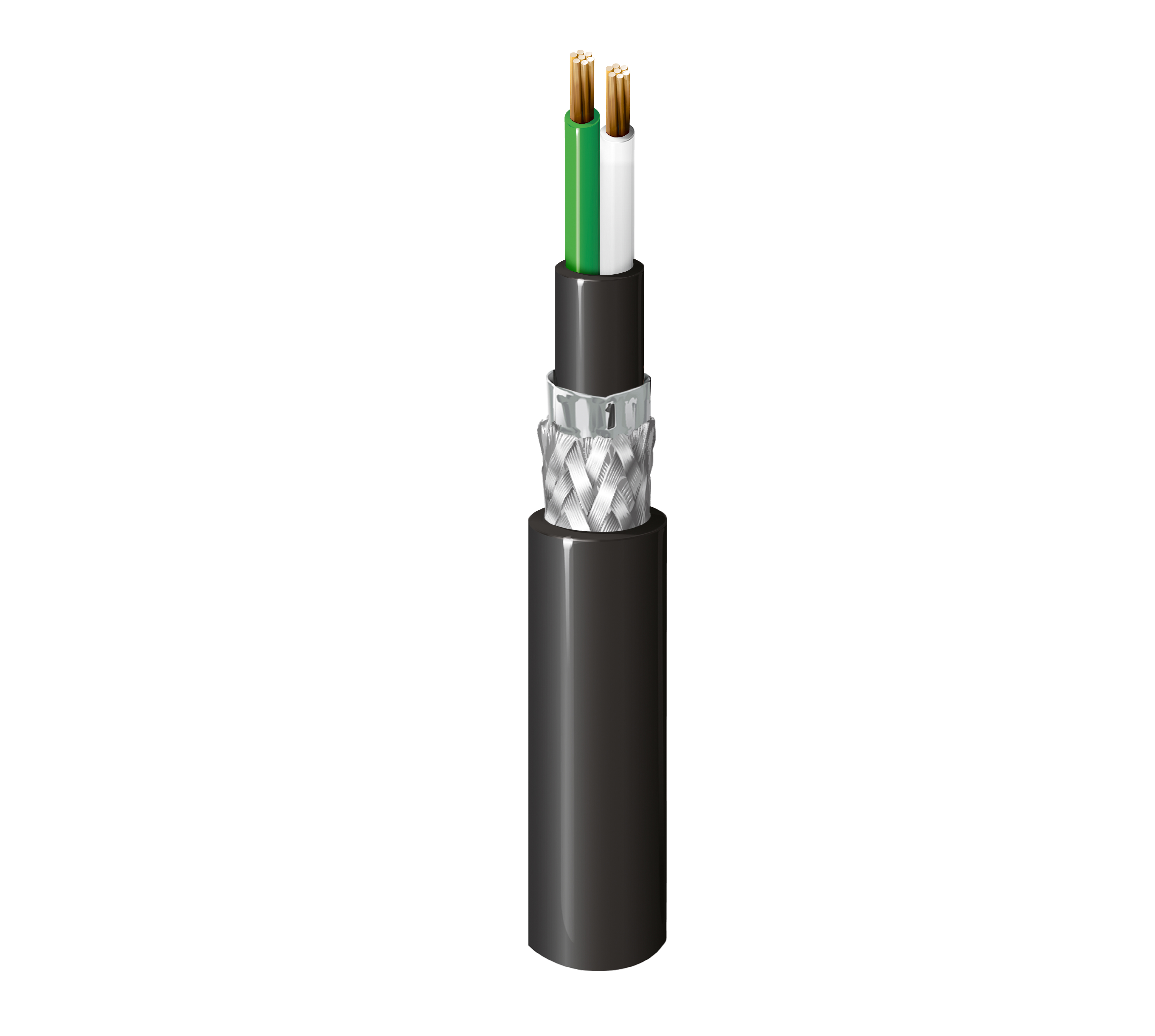

AUTOMOTIVE ETHERNET SPE 1GBPS 1P 26AWG STP PVC
AUTOMOTIVE ETHERNET SPE 1GBPS 1P 26AWG STP PVC
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Automotive Ethernet |
|---|
Construction Details
Conductor
| Size | 26 |
|---|---|
| Stranding | 7x34 |
| Material | BCA - Bare Copper Alloy |
| No. of Pairs | 1 |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nom. Insulation Diameter | 0.91 mm (0.036 in) |
| Color Code | White & Green |
Inner Jacket
| Material | PP - Polypropylene |
|---|---|
| Nom. Diameter | 2.80 mm (0.110 in) |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 4.25 mm (0.167 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 190 Ohm/km (58 Ohm/1000ft) |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|
| 1 | 0.037 | 22.0 |
| 10 | 0.011 | 22.0 |
| 100 | 0.344 | 19.0 |
| 600 | 0.869 | 14.0 |
Voltage
| Voltage Rating | 60 V |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 23.5 kg/km (15.8 lbs/1000ft) |
|---|
Temperature
| Operating | -40°C To +105°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | FT2 |
|---|---|
| IEEE Compliance | IEEE 802.3bp |
| Data Category | SPE 1000 Mbps |
Product Notes
| Notes | Twisting: 2C, Direction: S |
|---|
History
| Update and Revision | Revision Number: 0.63 Revision Date: 02-26-2026 |
|---|
