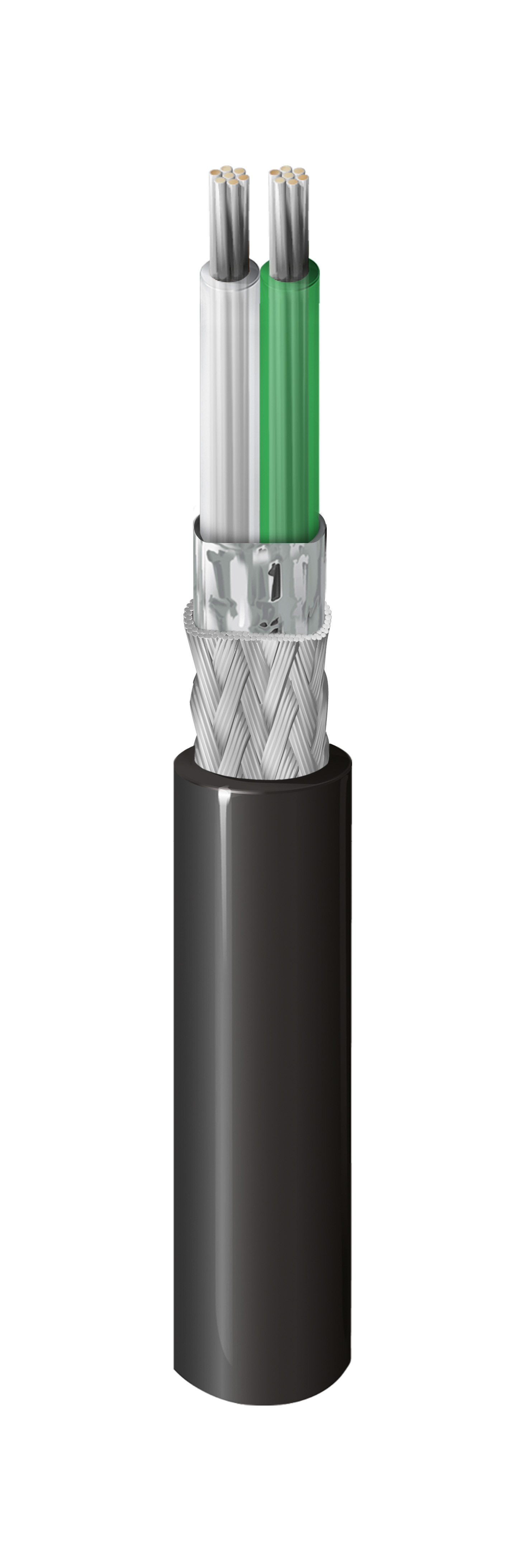

AUTOMOTIVE ETHERNET SPE 25GBPS 1P 26AWG SPP PVC
AUTOMOTIVE ETHERNET SPE 25GBPS 1P 26AWG SPP PVC
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Automotive Ethernet |
|---|
Construction Details
Conductor
| Size | 26 |
|---|---|
| Stranding | 7x34 |
| Material | TC - Tinned Copper |
| No. of Pairs | 1 |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nom. Insulation Diameter | 1.25 mm (0.0492 in) |
| Color Code | White & Green |
| Notes | Foamed PP |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 4 mm (0.16 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 150 Ohm/km (46 Ohm/1000ft) |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] |
|---|---|---|
| 100 | 0.32 dB | 20 |
| 500 | 0.72 dB | 20 |
| 900 | 0.99 dB | 17 |
| 1100 | 1.09 dB | 16.4 |
| 1500 | 1.31 dB | 15.05 |
| 1700 | 1.40 dB | 14.5 |
| 2100 | 1.59 dB | 13.5 |
| 2500 | 1.75 dB | 12.8 |
| 2900 | 1.92 dB | 11.8 |
| 3100 | 2.01 dB | 11.3 |
| 3500 | 2.15 dB | 10.9 |
| 3900 | 2.31 dB | 10.5 |
| 4300 | 2.46 dB | 10.1 |
| 4700 | 2.64 dB | 9.7 |
| 5100 | 2.77 dB | 9.4 |
| 5500 | 2.91 dB | 9.1 |
| 5900 | 3.06 dB | 8.8 |
| 6300 | 3.22 dB | 8.5 |
| 6700 | 3.43 dB | 8.2 |
| 7100 | 3.63 dB | 8.0 |
| 7500 | 3.84 dB | 8 |
| 7900 | 4.16 dB | 8 |
| 8300 | 4.46 dB | 8 |
| 8700 | 4.75 dB | 8 |
| 9000 | 4.90 dB | 8 |
Screening
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 MHz | 45 dB |
| 4000 MHz | 45 dB |
Voltage
| Voltage Rating | 60 V |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 44.9 kg/km (30.2 lbs/1000ft) |
|---|
Temperature
| Operating | -40°C To +105°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | FT2 |
|---|---|
| IEEE Compliance | IEEE 802.3cy |
| Data Category | SPE 25 Gbps |
History
| Update and Revision | Revision Number: 0.27 Revision Date: 02-26-2026 |
|---|
