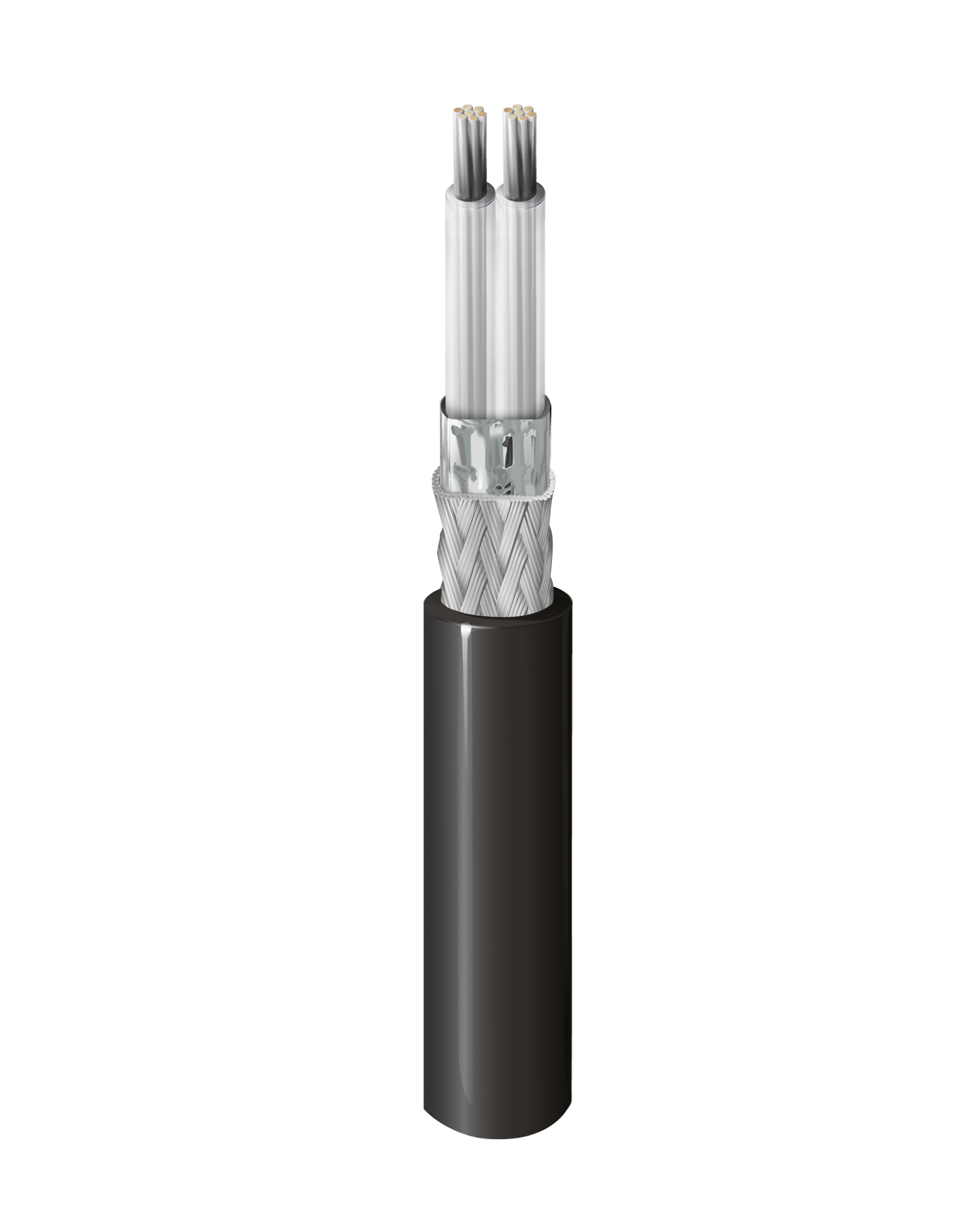

AUTOMOTIVE ETHERNET SPE 10GBPS 1P 26AWG SPP PVC
AUTOMOTIVE ETHERNET SPE 10GBPS 1P 26AWG SPP PVC
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Automotive Ethernet |
|---|
Physical Characteristics (Overall)
| Conductor Count | 2 |
|---|---|
| Bonded-Pair Construction | No |
Conductor
| AWG | 26 |
|---|---|
| Stranding | 19x36 |
| Material | TC - Tinned Copper |
| No. of Pairs | 1 |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nominal Diameter | 1.80 mm |
Color Chart
| Color |
|---|
| Natural & Natural |
| A01 |
Outer Shield
| Type | Material | Coverage [%] |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nominal Diameter | 5.30 mm |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR | 148 Ohm/km |
|---|
Capacitance
| Nom. Mutual Capacitance | 43 pF/m |
|---|
Impedance
| Nominal Characteristic Impedance | 100 Ohm |
|---|
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) |
|---|---|
| 10 MHz | 0.20 dB |
| 500 MHz | 0.62 dB |
| 1000 MHz | 0.91 dB |
| 2000 MHz | 1.33 dB |
| 3000 MHz | 1.7 dB |
| 4000 MHz | 2.02 dB |
| 5160 MHz | 2.43 dB |
| 6000 MHz | 2.71 dB |
| 7000 MHz | 3.08 dB |
| 7500 MHz | 3.26 dB |
Voltage
| Non-UL Voltage Rating | 60 V |
|---|
Temperature Range
| Operating Temperature Range | -40°C To +105°C |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 44.9 kg/km |
|---|
Standards
| IEEE Compliance | IEEE 802.3 |
|---|
Flammability, LS0H, Toxicity Testing
| CSA/C(UL) Flammability | VW-1 |
|---|
History
| Update and Revision | Revision Number: 0.45 Revision Date: 02-20-2026 |
|---|
