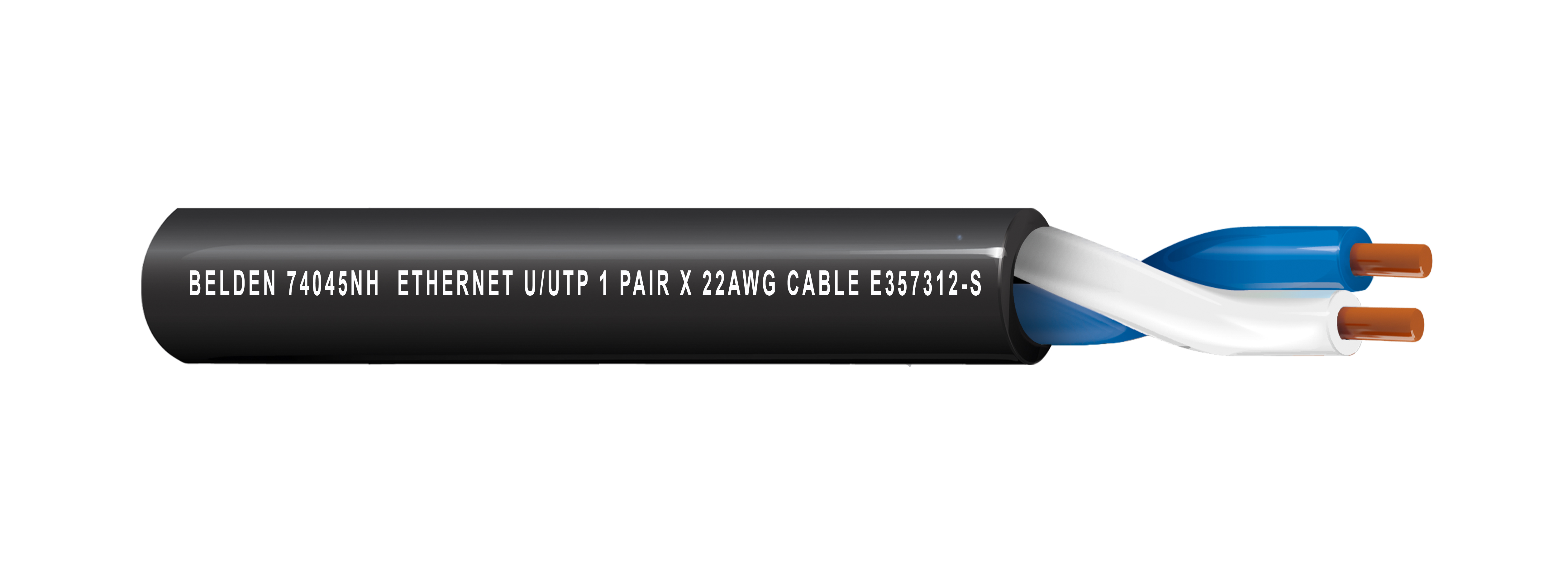

DataTuff Ind SPE 400m10Mb 22AWG SO U/UTP LSZH
DataTuff Ind SPE 400m10Mb 22AWG SO U/UTP LSZH Cable
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
74045NH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 74045NH-A500 | Black | Reel | 500 m | 8719605218216 | Order online |
Specifications
Product Overview
| Suitable Applications | Long distance sensors in harsh environment at Industrial edge, 1 single pair Ethernet up to 20 MHz. IEEE 802.3cg(10Base-T1L) |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 3.70 mm (0.146 in) |
|---|
Conductor
| Size | 22 AWG |
|---|---|
| Material | BC - Bare Copper |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 1.24 mm (0.0488 in) |
| Color Code | White, Blue |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|
Electrical Characteristics
| Electricals Table Notes | Min. resistance unbalance within a pair is 2% |
|---|---|
| High Frequency Table Notes | Characteristic Impedence at 20 MHz with tolerance of ± 15 |
Electricals
| Max. Conductor DCR | 59.1 Ω/km |
|---|
High Frequency
| Frequency | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Nom. Characteristic Impedance [Ohm] |
|---|---|---|---|---|
| 0.1 | 1.37 dB | 15 | 50 | |
| 1 MHz | 2.08 dB | 15 | 50 | |
| 4 MHz | 3.81 dB | 23 | 50 | |
| 10 MHz | 5.93 dB | 25 | 50 | |
| 20 MHz | 8.38 | 25 | 50 | 100 |
Voltage
| UL Voltage Rating | 300 V |
|---|---|
| Breakdown Voltage | 2KVac/min |
Mechanical Characteristics
| Bulk Cable Weight | 17.57 kg/km (11.81 lbs/1000ft) |
|---|
Temperature
| Operating | -40 °C to + 80°C |
|---|
Standards and Compliance
| AWM Compliance | AWM 21307 |
|---|---|
| Data Category | SPE 10 Mbps |
| ISO/IEC Compliance | IEC 61156-13, UL 758 |
| European Halogen Free Standards | IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 , IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.26 Revision Date: 02-26-2026 |
|---|
Resources
