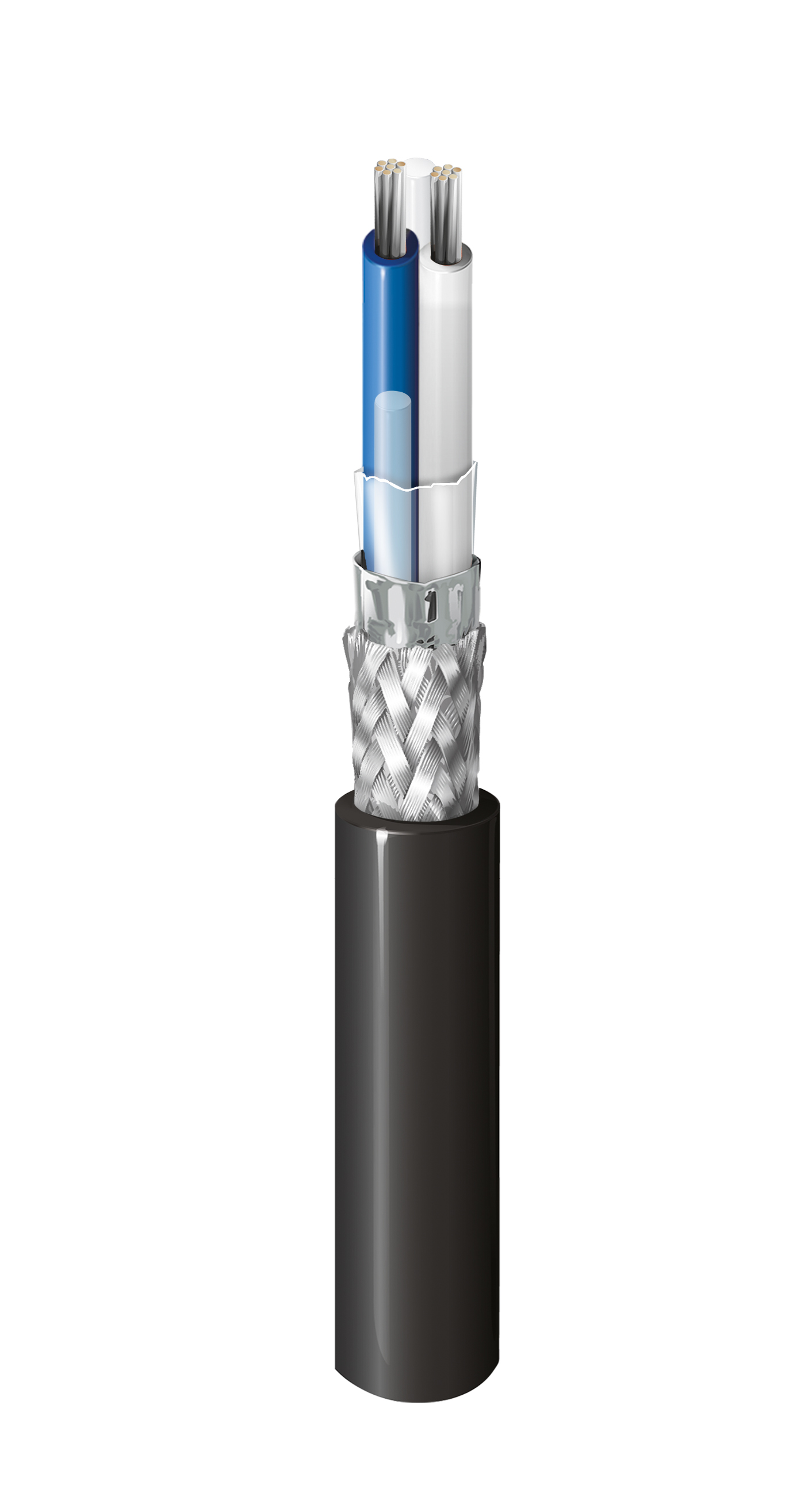

DataTuff Ind SPE 400m10Mb 22AWG STR SF/UTP PVC
DataTuff Ind SPE 400m10Mb 22AWG STR SF/UTP PVC
- Availability
- EMEA | Asia Pacific
- Status
- Active
- Orderable items
- 4
Part numbers
74041E is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 74041E.00B100 | Black | Flat Box | 100 m | 8719605237323 | Order online |
| 74041E-A500 | Black | Reel | 500 m | — | Order online |
| 74041E.00500 | Black | Reel | 500 m | 8719605235695 | Order online |
| 74041E.00600 | Black | Reel | 600 m | 8719605236340 | Order online |
Specifications
Product Overview
| Suitable Applications | Long distance sensors in harsh environment at Industrial edge, 1 single pair Ethernet up to 20 MHz |
|---|
Construction Details
Conductor
| Size | 22 AWG |
|---|---|
| Stranding | 7x0.25 mm |
| Material | TC - Tinned Copper |
| No. of Pairs | 1 |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 1.65 mm (0.0650 in) |
| Color Code | White & Blue |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Polyester | 100% |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 5.10 mm (0.201 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 59.4 Ohm/km at 20°C |
|---|---|
| Max. Capacitance Unbalance | 160 pF/100m |
| Nom. Characteristic Impedance | 100 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] | Max. Surface Transfer Impedance | Nom. Characteristic Impedance [Ohm] |
|---|---|---|---|---|---|---|
| 0.1 | 1.5 | 15 | 50 | 55 | ||
| 1 | 2.2 | 20 | 40 | 35 | 50 | |
| 4 | 3.9 | 23 | 31 | 23 | 75.9 | |
| 10 | 6.1 | 25 | 25 | 15 | 100 | |
| 20 | 8.6 | 25 | 20.5 | 9 | 154.9 | |
| 100 |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| Operating | -30°C To +80°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | FT2 |
|---|---|
| AWM Compliance | AWM 2095, AWM I A/B |
| Data Category | SPE 10 Mbps |
| ISO/IEC Compliance | IEC 61156-xx, UL 758 |
History
| Update and Revision | Revision Number: 0.91 Revision Date: 02-20-2026 |
|---|
