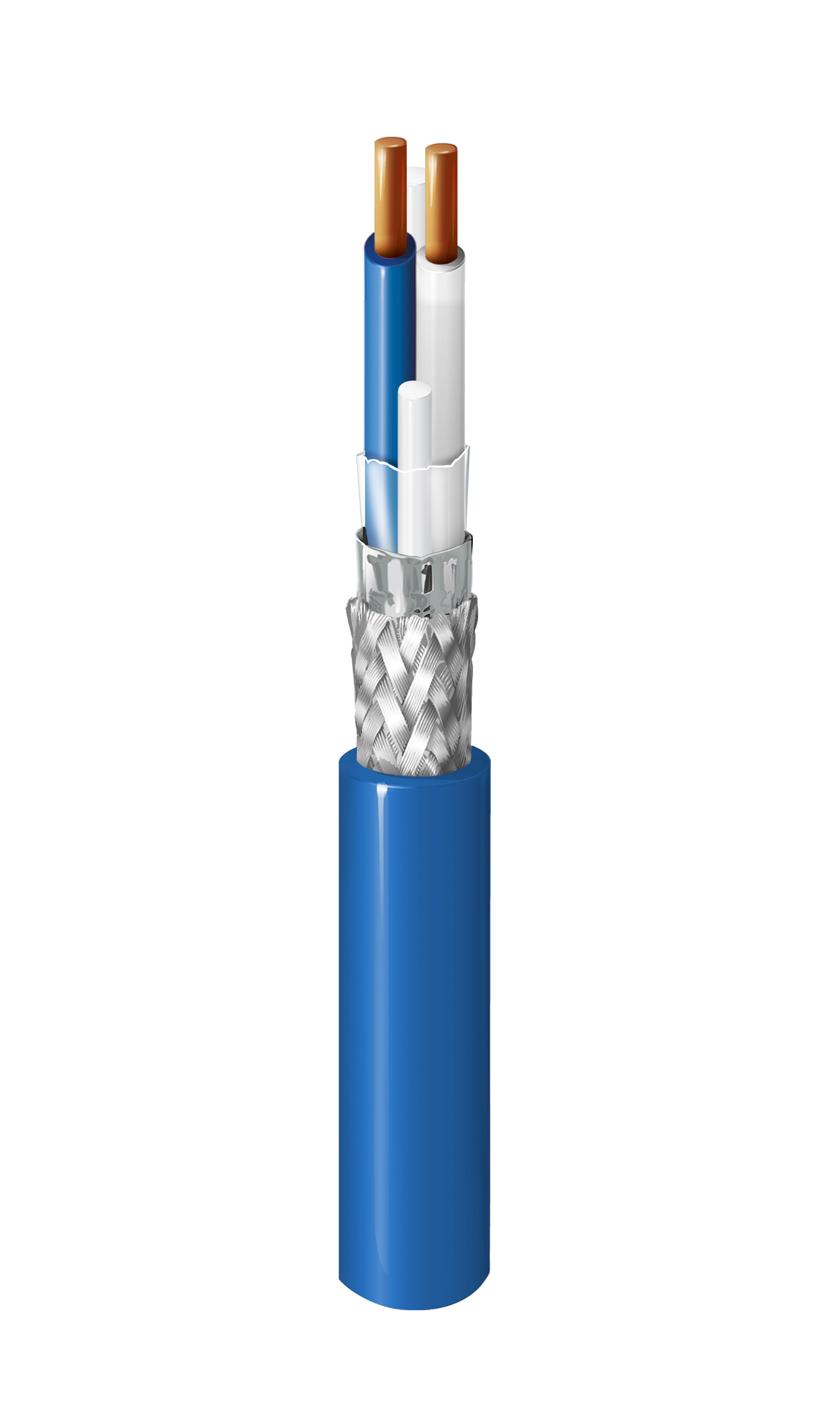

DataTuff Ind SPE 1km10Mb 18AWG SO SF/UTP LSZH
DataTuff Ind SPE 1km10Mb 18AWG SO SF/UTP LSZH
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
74040NH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| 74040NH-A500 | Black | Reel | 500 m | Order online |
| 74040NH-A1500 | Black | Reel | 1,500 m | Order online |
| 74040NH 006500M | Blue | Reel | 500 m | Order online |
| 74040NH 0061500M | Blue | Reel | 1,500 m | Order online |
Specifications
Product Overview
| Suitable Applications | Long distance sensors in harsh environment at Industrial edge, 1 single pair Ethernet supporting a bandwidth of 10 Mbit/s (e.g. 10BASE-T1L) over up to 1000 m. The maximum trunk cable length can reach 1000m and 200m for spur cable length. 2-WISE Ethernet-APL standards and intrinsic safety environments |
|---|
Construction Details
Conductor
| Size | 18 AWG |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| No. of Pairs | 1 |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 2.45 mm (0.0965 in) |
| Color Code | White & Blue |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Polyester | 100% |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 6.60 mm (0.260 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 21.4 Ohm/km at 20°C |
|---|---|
| Max. Capacitance Unbalance | 160 pF/100m |
| Nom. Characteristic Impedance | 100 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] | Max. Surface Transfer Impedance | Nom. Characteristic Impedance [Ohm] |
|---|---|---|---|---|---|---|
| 0.1 | 1 | 15 | 50 | 55 | ||
| 1 | 1.4 | 20 | 40 | 35 | 50 | |
| 4 | 2.6 | 23 | 31 | 23 | 75.9 | |
| 10 | 4.1 | 25 | 25 | 15 | 100 | |
| 20 | 5.7 | 25 | 20.5 | 9 | 154.9 | |
| 100 |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| Operating | -30°C To +80°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | FT2 |
|---|---|
| AWM Compliance | AWM 21307 |
| Data Category | SPE 10 Mbps |
| ISO/IEC Compliance | IEC 61156-13, UL 758 |
| European Halogen Free Standards | IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 , IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60 |
Product Notes
| Notes | Conform to intrinsic safety (IS): IEC TS 60079-47 (2-WISE) standard, @ 1KHz, Capacitance: 45~200 nF/km,Loop Resistance: 15~150 ohm/km, Loop Inductance: 0.4~1.0mH/km |
|---|
History
| Update and Revision | Revision Number: 0.98 Revision Date: 02-20-2026 |
|---|
