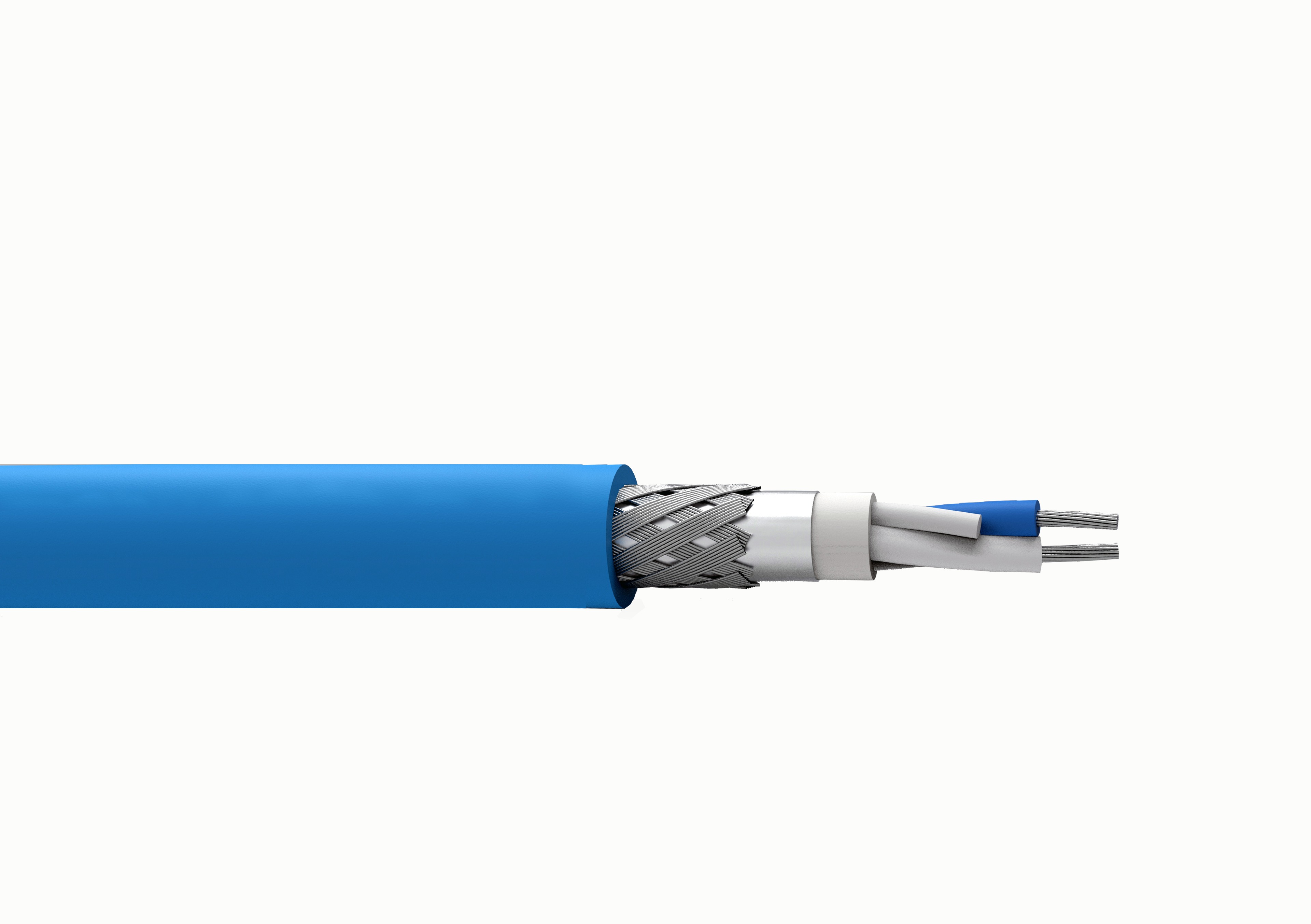

Product Number: 74035PU

Belden High Flexible Ethernet 26 AWG SPE Robot Application Cable

Belden High Flexible Ethernet 26 AWG double shield PU jacket SPE Robotics application Cable.

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

74035PU is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
74035PU-C500	Blue, Light	Reel	500 m	8719605219589	Order online

Specifications

Product Overview

Suitable Applications	1 single pair Ethernet up to 600 MHz accord. IEEE 802.3bp (1000BASE-T1)

Construction Details

Overall Cable Diameter (Nominal)	5.0 mm (0.20 in)

Conductor

Element	Pair(s)
Size	26 AWG
Stranding	19x0.10 mm
Material	TC - Tinned Copper
No. of Pairs	1

Insulation

Material	PE - Polyethylene
Nom. Insulation Diameter	1.1 mm (0.043 in)
Color Code	White, Blue

Inner Jacket

Material	TPE - Thermoplastic Elastomer
Color	White

Outer Shield

Shield Type	Material	Coverage
Tape	Polyester + Bi-Laminate (Alum+Poly)
Spiral Serve / Screen	Tinned Copper (TC)	80%

Outer Jacket

Material	PUR - Polyurethane (Halogen Free)

Electrical Characteristics

Electricals

Max. Conductor DCR	150 Ω/km @ 20°C
Nom. Characteristic Impedance	100 Ohm

High Frequency

Frequency	Max. Insertion Loss (Attenuation)	Min. RL (Return Loss) [dB]	Min. TCL [dB]	Min. ELTCTL [dB]	Max. Surface Transfer Impedance	Min. Coupling Attenuation [dB]
1	3.1 dB/100 m	20	40	40	50
4 MHz	5.6 dB/100 m	23	40	28	75.9
10 MHz	8.7 dB/100 m	25	35	20	100
20 MHz	12.3 dB/100 m	25	30.5	14	154.9
30 MHz	15.1 dB/100 m	18.5	27.8	10.5	200	85
100 MHz	27.8 dB/100 m	15.6	20	5.0		85
600 MHz	70.7 dB/100 m	15.6	8.3	5.0		69.4
1000 MHz						65

Voltage

UL Voltage Rating	300 V
Breakdown Voltage	2kV ac/min

Mechanical Characteristics

Table Notes	Reverse Bending Test : Total Cycles 1000000, Bending Radius 35 mm, Weight 300g & Speed 60 cycle/min.; Torsion test speed : 30 Cycles/min; TT Torsion Angle @TFP1 is +/- 180 °; Weight : 300g
Bulk Cable Weight	32 kg/km (22 lbs/1000ft)

Temperature

Operating	-40 °C to + 80°C

Trailing/Flexing Properties

Motion	Number of Cycles	Radius	Speed	Acceleration	Traverse Length
Trailing/Bending	5,000,000	75 mm	3 m/s	10 m/s2	5 m
Torsion/Twisting	10,000,000				1 m

Standards and Compliance

AWM Compliance	AWM 20549
Data Category	SPE 1000 Mbps
ISO/IEC Compliance	IEC 61156-12, UL 758
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = 0.5%
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	HF : According to EN 60684-2 : ≤0.1%

History

Update and Revision	Revision Number: 0.34 Revision Date: 02-20-2026
