Belden Flexible Ethernet 26 AWG SPE Cable

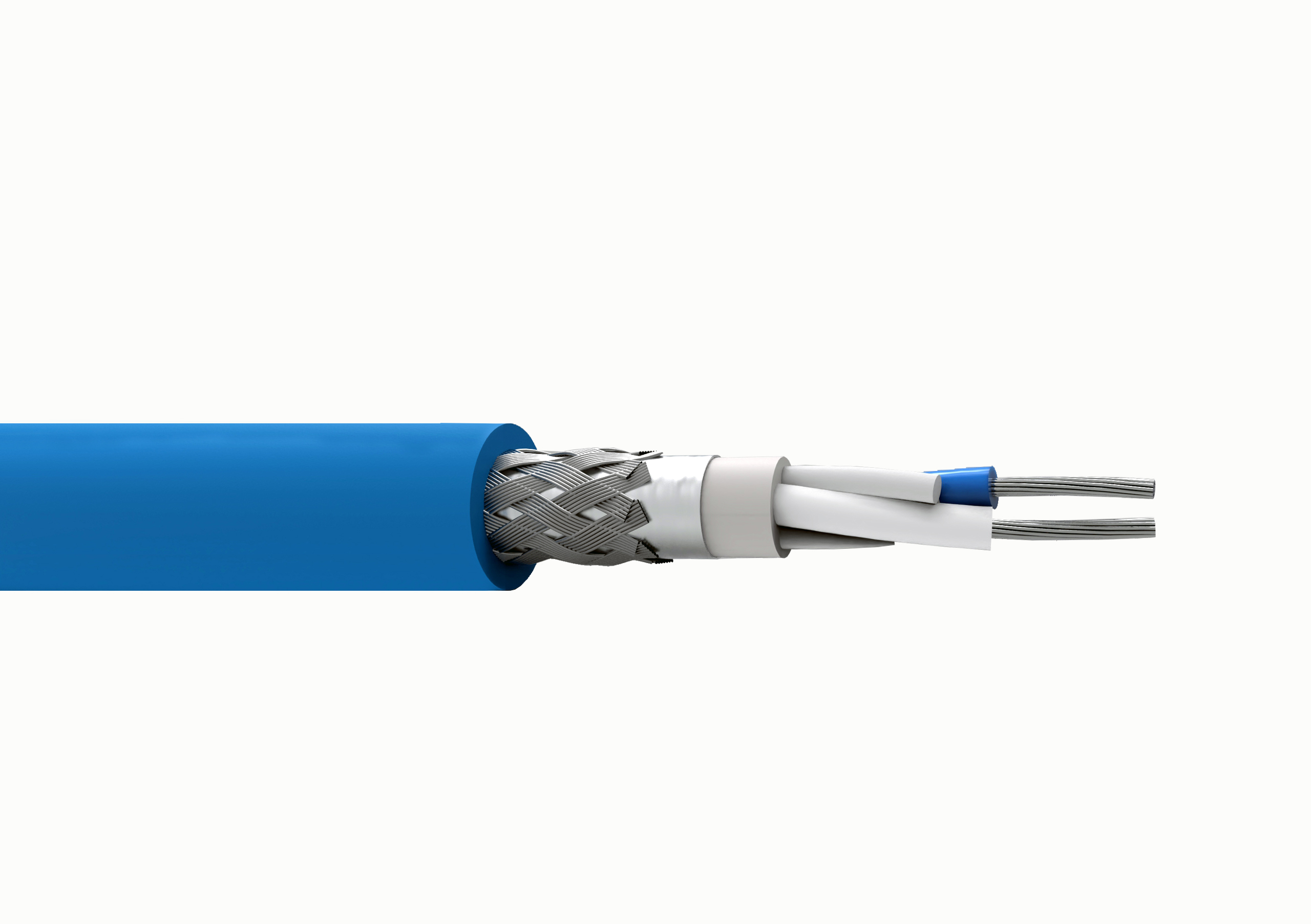

Belden Flexible Ethernet 26 AWG double shield PU jacket SPE Drag chain application Cable.
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
74034PU is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 74034PU-C500 | Blue, Light | Reel | 500 m | 8719605219572 | Order online |
Specifications
Product Overview
| Suitable Applications | 1 single pair Ethernet up to 600 MHz accord. IEEE 802.3bp (1000BASE-T1) |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 5.0 mm (0.20 in) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| Size | 26 AWG |
| Stranding | 19x0.10 mm |
| Material | TC - Tinned Copper |
| No. of Pairs | 1 |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 1.1 mm (0.043 in) |
| Color Code | White, Blue |
Inner Jacket
| Material | TPE - Thermoplastic Elastomer |
|---|---|
| Color | White |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Polyester + Bi-Laminate (Alum+Poly) | |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | PUR - Polyurethane (Halogen Free) |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | 150 Ω/km @ 20°C |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
High Frequency
| Frequency | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] | Max. Surface Transfer Impedance | Min. Coupling Attenuation [dB] |
|---|---|---|---|---|---|---|
| 1 | 3.1 dB/100 m | 20 | 40 | 40 | 50 | |
| 4 MHz | 5.6 dB/100 m | 23 | 40 | 28 | 75.9 | |
| 10 MHz | 8.7 dB/100 m | 25 | 35 | 20 | 100 | |
| 20 MHz | 12.3 dB/100 m | 25 | 30.5 | 14 | 154.9 | |
| 30 MHz | 15.1 dB/100 m | 18.5 | 27.8 | 10.5 | 200 | 85 |
| 100 MHz | 27.8 dB/100 m | 15.6 | 20 | 5.0 | 85 | |
| 600 MHz | 70.7 dB/100 m | 15.6 | 8.3 | 5.0 | 69.4 | |
| 1000 MHz | 65 |
Voltage
| UL Voltage Rating | 300 V |
|---|---|
| Breakdown Voltage | 2kV ac/min |
Mechanical Characteristics
| Bulk Cable Weight | 32 kg/km (22 lbs/1000ft) |
|---|
Temperature
| Operating | -40 °C to + 80°C |
|---|
Trailing/Flexing Properties
| Motion | Trailing/Bending |
|---|---|
| Number of Cycles | 5,000,000 |
| Radius | 75 mm |
| Speed | 3 m/s |
| Acceleration | 10 m/s2 |
| Traverse Length | 5 m |
Standards and Compliance
| AWM Compliance | AWM 20549 |
|---|---|
| Data Category | SPE 1000 Mbps |
| ISO/IEC Compliance | IEC 61156-12, UL 758 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = 0.5% |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | HF : According to EN 60684-2 : ≤0.1% |
|---|
History
| Update and Revision | Revision Number: 0.30 Revision Date: 02-20-2026 |
|---|
