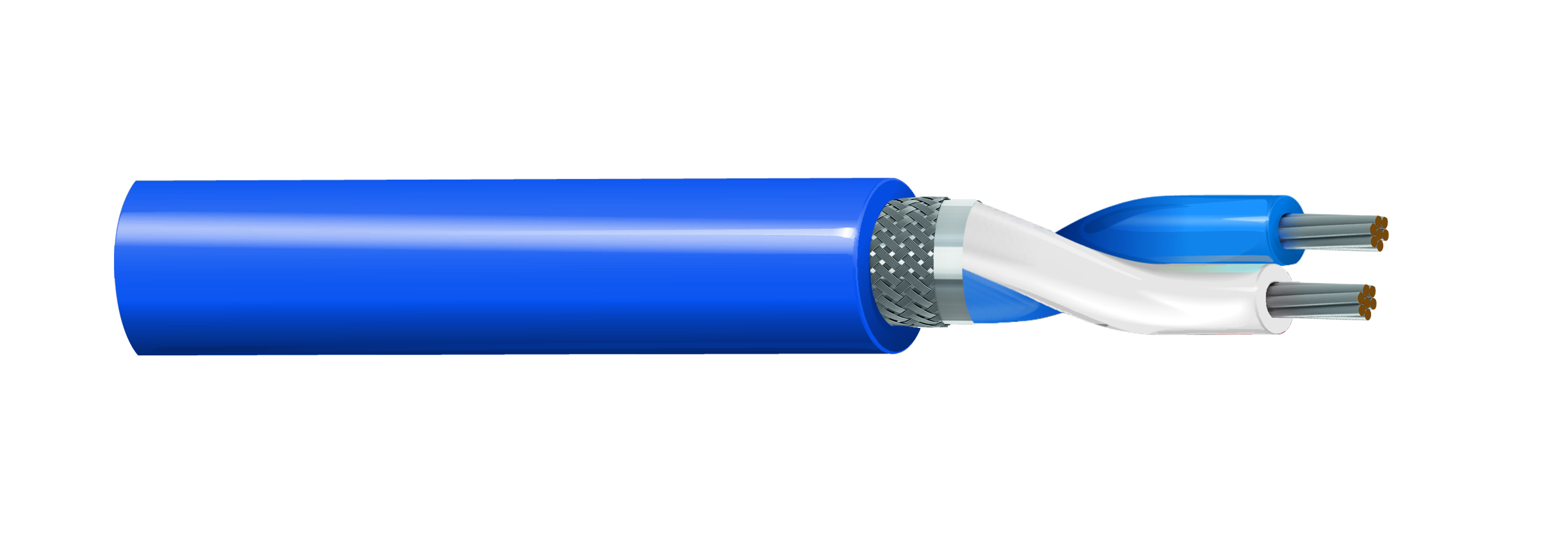

DataTuff Ind SPE 40mGb 22AWG 7 STR SF/UTP PVC
DataTuff Ind SPE 40mGb 22AWG 7 STR SF/UTP PVC
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
74033E is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| 74033E 0101000 | Black | Reel | 1,000 ft | Order online |
| 74033E-C500 | Blue, Light | Reel | 500 m | Order online |
| 74033E 0061000 | Blue, Light | Reel | 1,000 ft | Order online |
Specifications
Product Overview
| Suitable Applications | Manufacturing cell, 1 single pair Ethernet up to 600 MHz accord. IEEE 802.3bp (1000BASE-T1) |
|---|
Construction Details
Conductor
| Size | 22 AWG |
|---|---|
| Stranding | 7x0.25 mm |
| Material | TC - Tinned Copper |
| No. of Pairs | 1 |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 2.2 mm (0.087 in) |
| Color Code | White & Blue |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 6.15 mm (0.242 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 59.4 Ohm/km at 20°C |
|---|---|
| Max. Capacitance Unbalance | 160 pF/100m |
| Nom. Characteristic Impedance | 100 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] | Max. Surface Transfer Impedance | Min. Coupling Attenuation [dB] | Nom. Characteristic Impedance [Ohm] |
|---|---|---|---|---|---|---|---|
| 1 | 3.1 | 20 | 40 | 40 | 15 | ||
| 4 | 5.6 | 23 | 40 | 28 | 11.8 | ||
| 10 | 8.7 | 25 | 35 | 20 | 10 | ||
| 20 | 12.3 | 25 | 30.5 | 14 | 20 | ||
| 30 | 15.1 | 23.5 | 27.8 | 10.5 | 30 | 85 | |
| 100 | 27.8 | 19 | 20 | 5 | 85 | ||
| 600 | 70.7 | 15.6 | 8.3 | 5 | 69.4 | ||
| 1000 | 65 | ||||||
| 100 |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| Operating | -20°C To +80°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | FT2, IEC 60332-1-2 |
|---|---|
| AWM Compliance | AWM 2095, AWM I A/B |
| Data Category | SPE 1000 Mbps |
| ISO/IEC Compliance | IEC 61156-12 NP, UL 758 |
History
| Update and Revision | Revision Number: 0.86 Revision Date: 02-20-2026 |
|---|
