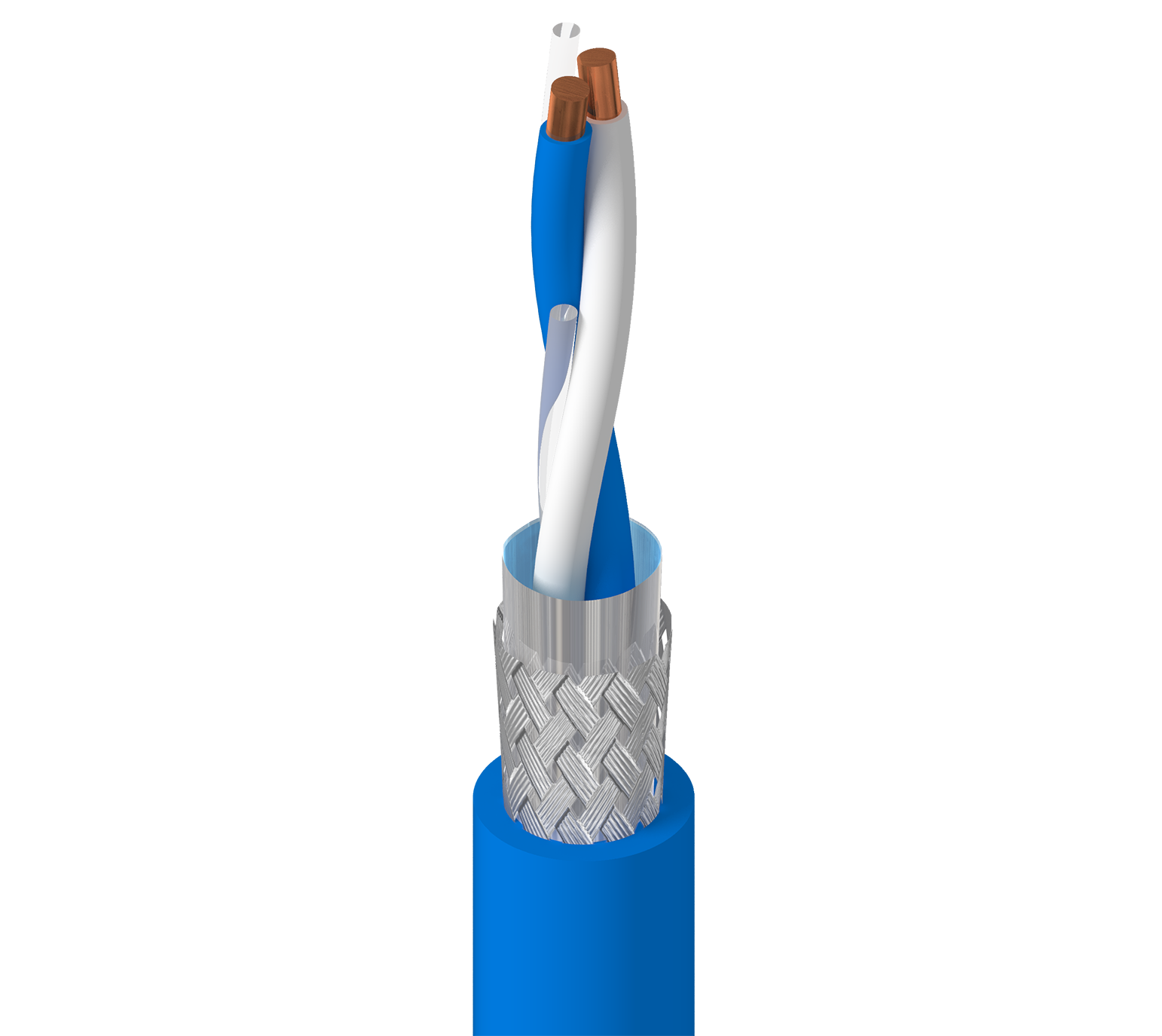

DataTuff Ind SPE 40mGb 22AWG SO SF/UTP PVC
DataTuff Ind SPE 40mGb 22AWG SO SF/UTP PVC
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | 1 single pair Ethernet up to 600 MHz |
|---|
Construction Details
Conductor
| Size | 22 AWG |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| No. of Pairs | 1 |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 1.75 mm (0.0689 in) |
| Color Code | White & Blue |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Polyester | 100% |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 5.10 mm (0.201 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 54.3 Ohm/km at 20°C |
|---|---|
| Max. Capacitance Unbalance | 120 pF/100m |
| Nom. Characteristic Impedance | 100 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] | Min. Coupling Attenuation [dB] | Nom. Characteristic Impedance [Ohm] |
|---|---|---|---|---|---|---|
| 1 | 2.1 | 20 | 40 | 40 | ||
| 4 | 3.7 | 23 | 40 | 28 | ||
| 10 | 5.8 | 25 | 35 | 20 | ||
| 20 | 8.2 | 25 | 30.5 | 14 | ||
| 30 | 10.1 | 23.76 | 27.8 | 10.5 | 85 | |
| 100 | 18.5 | 20.1 | 20 | 5 | 85 | |
| 600 | 47.1 | 17.3 | 8.3 | 5 | 69.4 | |
| 65 | ||||||
| 100 |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| Operating | -30°C To +80°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | FT2 |
|---|---|
| AWM Compliance | AWM 2095 |
| Data Category | SPE 1000 Mbps |
| ISO/IEC Compliance | IEC 61156-11, UL 758 |
History
| Update and Revision | Revision Number: 0.42 Revision Date: 02-26-2026 |
|---|
