Product Number: 50106XU

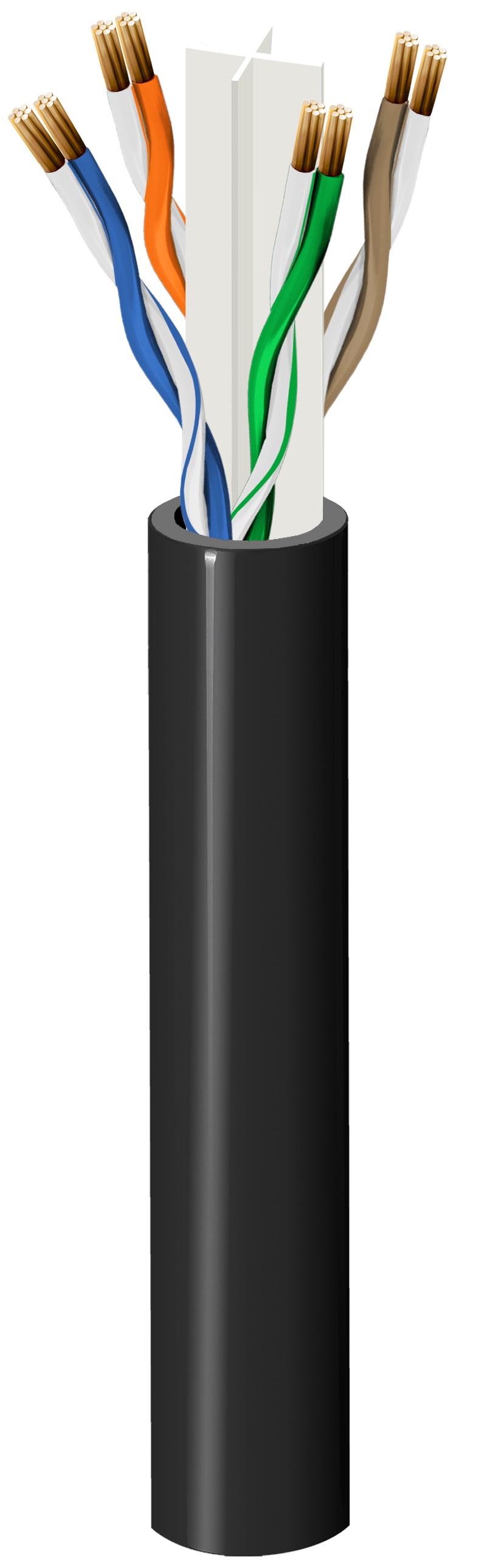

50106XU Industrial Cat6 Cable, U/UTP, 4 Pair, AWG 24 Stranded, PE/PVC, High-Flex

U/UTP, Category 6, 4-Pair, 24 AWG Stranded Bare Copper Conductors, Polyethylene Insulation, PVC Jacket, High Flexibility

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

50106XU is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	Order
50106XU 010305M	Black	Reel	305 m	Order online
50106XU 006305M	Blue	Reel	305 m	Order online
50106XU 008305M	Gray	Reel	305 m	Order online

Specifications

Product Overview

Suitable Applications

Interconnecting Industrial Ethernet Switches, IP controllers, media convertors, distributed control system, programmable logic controller and transmitting industrial protocol data signals. Suitable for transmitting 1000BASE‐TX Gigabit Ethernet, 100BASE‐T Fast Ethernet, 100BaseVG ANYLAN, 155ATM, 622ATM, RS‐422, 250MHz Category 6, EtherCAT. Stranded conductor highly applicable for flexible installation. These are highly durable & ruggedized cables for both indoor and outdoor use meeting IEC 60332‐1 flame rating.

Construction Details

Conductor

Size	24 AWG
Stranding	Stranded
Material	BC - Bare Copper

Insulation

Material	PO - Polyolefin
Color Code	White / Blue & Blue, White / Orange & Orange, White / Green & Green, White / Brown & Brown

Outer Shield

Material	No Shield

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	6.3 mm

Electrical Characteristics

High Frequency Table Notes	Limits below 4MHz are for information only.

Electricals

Max. Conductor DCR	93.8 Ohm/km (28.6 Ohm/1000ft)
Max. Capacitance Unbalance	5,600 pF/100m
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay	538 ns/100m
Max. Delay Skew	45 ns/100m

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]
1	2.4	74.3	72.7	67.8	64.8	20
4	4.5	65.3	63.3	55.8	52.8	23
8	6.4	60.8	58.8	49.7	46.7	24.5
10	7.1	59.3	57.3	47.8	44.8	25
16	9.1	56.2	54.2	43.7	40.7	25
20	10.2	54.8	52.8	41.8	38.8	25
25	11.4	53.3	51.3	39.8	36.8	24.2
31.25	12.8	51.9	49.9	37.9	34.9	23.3
62.5	18.5	47.4	45.4	31.9	28.9	20.7
100	23.8	44.3	42.3	27.8	24.8	19
200	34.8	39.8	37.8	21.8	18.8	16.4
250	39.4	38.3	36.3	19.8	16.8	15.6

Voltage

UL Voltage Rating	300 V RMS (UL AWM Style 2095)

Mechanical Characteristics

Max. Pull Tension	110 N (25 lbf)
Bulk Cable Weight	42 kg/km (28 lbs/1000ft)

Temperature

Operating	-20°C To 75°C

Bend Radius

Installation Min.	50.4 mm (1.98 in)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire	IEC 60332-1-2
Data Category	Category 6
ISO/IEC Compliance	ISO/IEC 11801
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)

History

Update and Revision	Revision Number: 0.93 Revision Date: 02-20-2026
Footnote	For more order number information, please approach your Belden sales representative freely
