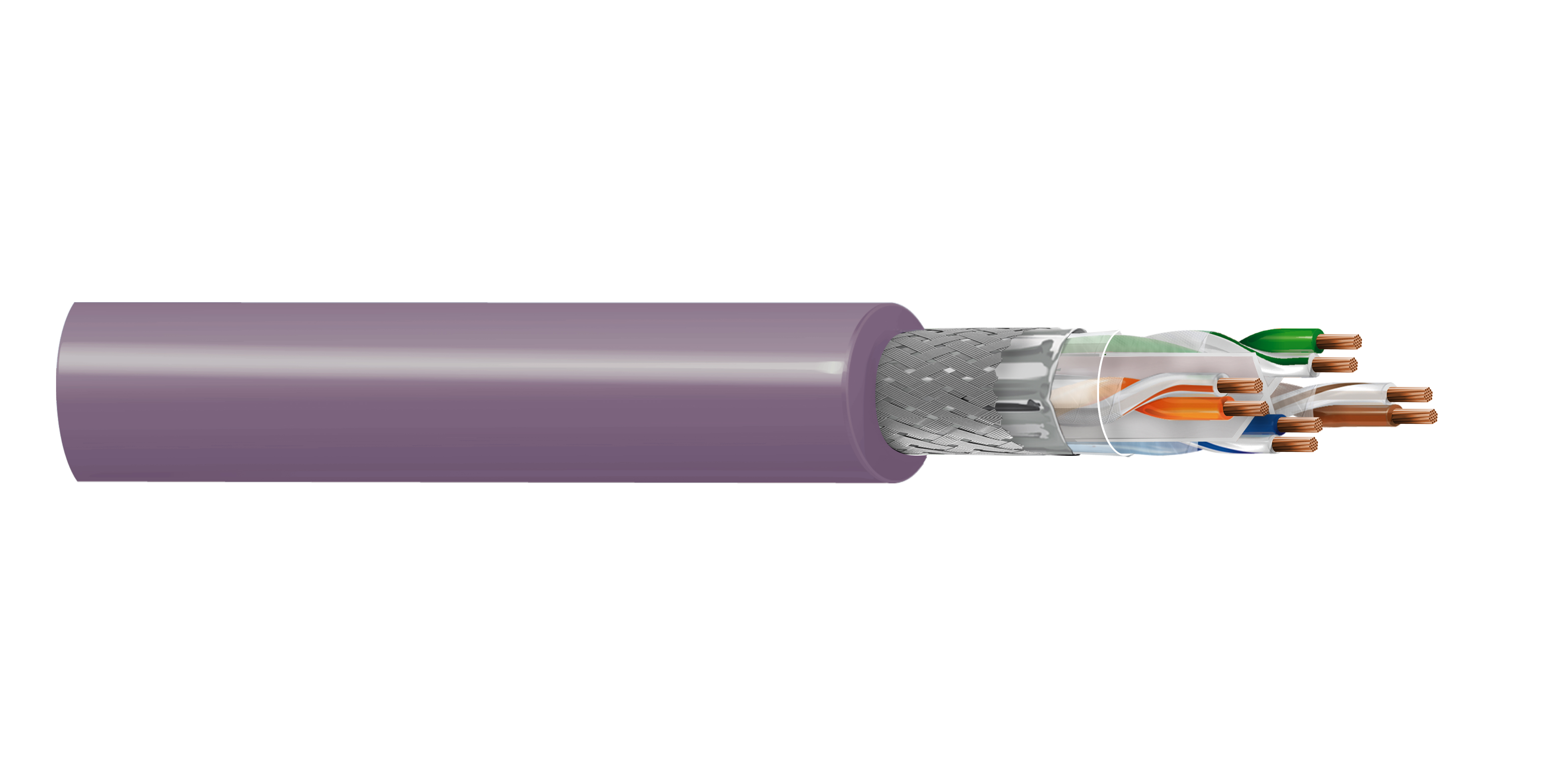

BELDEN Industrial Ethernet CAT6, SF/UTP, 4x2x 0.15mm2 Stranded, PO/PVC, High-Flex Cable
BELDEN Industrial Ethernet CAT6, SF/UTP, 4x2x 0.15mm2 Stranded Bare Copper Conductors, Polyolefin Insulation, Overall foil shield plus tinned copper braid shield, PVC Jacket, High-Flex Cable, 10 million flex cycles (Drag Chain), AWM 2095, 80C, 300V, FT2
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Ethernet: 10GBase-T, 100Base-TX, 1000Base-T |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 7.3 mm (0.29 in) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| Size | 0.15 mm2 |
| Material | BC - Bare Copper |
Insulation
| Material | PO - Polyolefin |
|---|---|
| Nom. Insulation Diameter | 1.0 mm (0.039 in) |
| Color Code | White/Blue, Blue, White/Orange, Orange, White/Green, Green, White/Brown, Brown |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Polyester + Bi-Laminate (Alum+Poly) | |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|
Electrical Characteristics
| Electricals Table Notes | Max. Transmission Length a) Link Class: Class E (Data Application upto 250 MHz), Channel: 74m, Permanent: 63m; Nominal velocity of Propagation: 72% |
|---|
Electricals
| Max. Conductor DCR | 145 Ω/km @ 20°C |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
Voltage
| UL Voltage Rating | 300 V |
|---|---|
| Breakdown Voltage | 2000V AC/Min. |
Mechanical Characteristics
| Bend Radius Table Notes | Drag Chain Test (5 million cycles): a) Bending Radius: Max. 12.5D, Speed: Min. 30 Cycles/Min., Chain Length: 1M ; Drag Chain Test (10 million cycles): a) Bending Radius: Max. 14.5D, Speed: Min. 30 Cycles/Min., Chain Length: 1M |
|---|
Temperature
| Operating | -20 °C to + 80°C |
|---|
Standards and Compliance
| AWM Compliance | AMW 2095 |
|---|---|
| CEC / C(UL) Compliance | AWM I/II 80C 300V. |
| Data Category | Category 6 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.22 Revision Date: 02-26-2026 |
|---|
