Product Number: 50106HFP

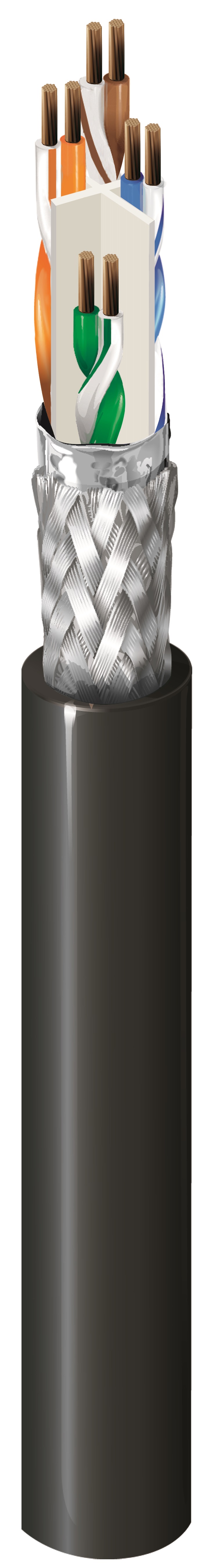

50106HFP Industrial Cat6 Cable, SF/UTP, 4 Pair, AWG 26 Stranded, PE/PUR, High-Flex, CC-Link IE Field & CC-Link IE Field TSN Certified, AWM 20549

SF/UTP, Category 6, 4-Pair, 26 AWG Stranded Bare Copper Conductors, Polyethylene Insulation, Overall foil shield plus tinned copper braid shield, Halogen Free PUR Jacket, High Flexibility, CC-Link IE Field & CC-Link IE Field TSN Certified, AWM 20549

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

50106HFP is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	Order
50106HFP 010305M	Black	Reel	305 m	Order online
50106HFP 006305M	Blue	Reel	305 m	Order online
50106HFP 008305M	Gray	Reel	305 m	Order online

Specifications

Product Overview

Suitable Applications

Interconnecting Industrial Ethernet Switches, IP controllers, media convertors, distributed control system, programmable logic controller and transmitting industrial protocol data signals. Suitable for transmitting 1000BASE-TX Gigabit Ethernet, 100BASE-T Fast Ethernet, 100BaseVG ANYLAN, 155ATM, 622 ATM, RS-422, 250MHz Category 6, EtherCAT. With superior flexibility this cable is very suitable for use in the continuous flexing applications like drag chains, robotics, moving machinery parts, etc. It is designed to be used in special application environments which involve drag chain, torsion, and bending. These are highly durable & ruggedized cables for both indoor and outdoor use meeting IEC 60332-1 & IEC 60332-3-25 flame rating.

Construction Details

Conductor

Size	26 AWG
Stranding	Stranded
Material	BC - Bare Copper

Insulation

Material	PE - Polyethylene
Color Code	White / Blue & Blue, White / Orange & Orange, White / Green & Green, White / Brown & Brown

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	PUR - Polyurethane (Halogen Free)
Nom. Diameter	7.0 mm (0.28 in)

Electrical Characteristics

High Frequency Table Notes	Note: Fluke Channel transmission performance, Max. Cable length: 45 meters

Electricals

Max. Conductor DCR	140 Ohm/km (43 Ohm/1000ft)
Max. Capacitance Unbalance	330 pF/100m
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay	538 ns/100m @100MHz
Max. Delay Skew	45 ns/100m

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]
1	2.1	65	62	63.3	60.3	19
4	4.0	63	60.5	51.2	48.2	19
8	5.7	58.2	55.6	45.2	42.2	19
10	6.3	56.6	54	43.3	40.3	19
16	8.0	53.2	50.6	39.2	36.2	18
20	9.0	51.6	49	37.2	34.2	17.5
25	10.1	50	47.3	35.3	32.3	17
31.25	11.4	48.4	45.7	33.4	30.4	16.5
62.5	16.5	43.4	40.6	27.3	24.3	14
100	21.3	39.9	37.1	23.3	20.3	12
200	31.5	34.8	31.9	17.2	14.2	9
250	35.9	33.1	30.2	15.3	12.3	8

Mechanical Characteristics

Bulk Cable Weight	54 kg/km (36 lbs/1000ft)

Temperature

Operating	-25°C To 80°C

Trailing/Flexing Properties

Motion	Number of Cycles	Radius	Speed	Traverse Length	Torsion Angle
Trailing/Bending	30,000,000	75 mm	30	1 m
Torsion/Twisting	10,000,000		30	1 m	180

Bend Radius

Installation Min.	56 mm (2.2 in)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor LSZH, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire	IEC 60332-1-2, IEC 60332-3-25
AWM Compliance	AWM 20549
CEC / C(UL) Compliance	AWM I/II 80C 300V.
Data Category	Category 6
TIA/EIA Compliance	CC-Link IE Field, CC-Link IE Field TSN
ISO/IEC Compliance	Smoke Density as per IEC 61034-2, ISO/IEC 11801
European Halogen Free Standards	IEC 61034-2 - Smoke Density Min. Transmittance = 60%
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)

History

Update and Revision	Revision Number: 0.153 Revision Date: 07-31-2026
Footnote	For more order number information, please approach your Belden sales representative freely
