SWB Armored Industrial Category 6 F/UTP LSZH Cable

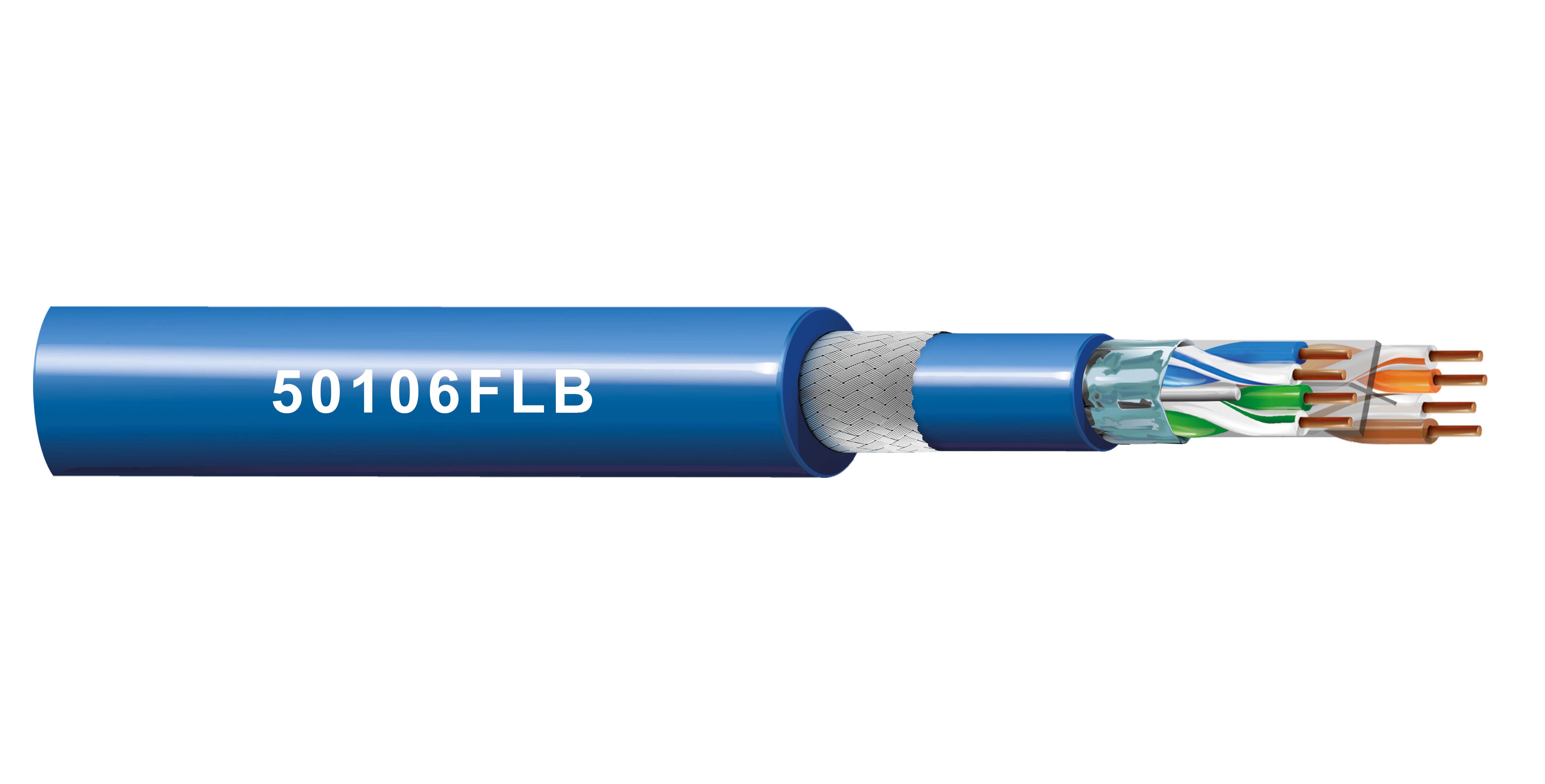

Industrial Ethernet CAT6,F/UTP, 4x2x23AWG, Solid Bare Copper Conductors, Polyolefin insulation, Overall shield, LSZH Inner Jacket, SWB Armored, LSZH Outer Jacket, UV&Oil Resistance cable
- Availability
- Asia Pacific
- Status
- Active
- Orderable items
- 6
Part numbers
50106FLB is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| 50106FLB 010305M | Black | Reel | 305 m | Order online |
| 50106FLB 010500M | Black | Reel | 500 m | Order online |
| 50106FLB 006305M | Blue | Reel | 305 m | Order online |
| 50106FLB 006500M | Blue | Reel | 500 m | Order online |
| 50106FLB 008305M | Gray | Reel | 305 m | Order online |
| 50106FLB 008500M | Gray | Reel | 500 m | Order online |
Specifications
Information
| Put-Up Type | 305 M |
|---|---|
| Update and Revision | Revision Number: 0.58 Revision Date: 02-26-2026 |
Product Overview
| Suitable Applications | Industrial Ethernet cables are used for interconnecting Industrial Ethernet Switches, IP controllers, media convertors, distributed control system, programmable logic controller and transmitting industrial protocol data signals. These cables are suitable for transmitting 1000BASE-TX Gigabit Ethernet, 100BASE-T Ethernet, 100BaseVG ANYLAN, 155ATM, 622ATM, RS-422, 250MHz Category 6, EtherCAT. These are highly durable & ruggedized cables for both indoor and outdoor use meeting IEC 60332-3-24 and IEC 60754-1 & 2 |
|---|
Construction Details
Conductor
| Size | 23 |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
Insulation
| Material | PO - Polyolefin |
|---|---|
| Color Code | Blue & White with Blue Stripe, Orange & White with Orange stripe, Green & White with Green Stripe, Brown & white with Brown Stripe |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Drainwire Type | 26 AWG (Solid) TC |
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|
Armor
| Armor Type & Material | SWB - Steel Wire Braid Armor |
|---|
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 10.5 mm (0.413 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
|---|---|
| Max. Capacitance Unbalance | 330 pF/100m |
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Max. Delay | 538 ns/100m |
|---|---|
| Max. Delay Skew | 45 ns/100m |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|
| 1 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 20.0 |
| 4 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 23.0 |
| 8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
| 10 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 25.0 |
| 16 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 25.0 |
| 20 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 25.0 |
| 25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | 21.5 |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 |
| 155 | 25.2 | 41.4 | 39.4 | 24.0 | 21.0 | 18.8 |
| 200 | 29.0 | 39.8 | 37.8 | 21.8 | 18.8 | 18.0 |
| 250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 110 N (25 lbf) |
|---|---|
| Bulk Cable Weight | 141 kg/km (94.7 lbs/1000ft) |
Temperature
| Operating | -20°C To +75°C |
|---|
Bend Radius
| Installation Min. | 84.0 mm (3.31 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-3-24 |
| Data Category | Category 6 |
| TIA/EIA Compliance | ANSI/TIA 568.2-D |
| ISO/IEC Compliance | IEC 61156-5 ISO/IEC 11801 Cat 6 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = ≤ 5 mg/g, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = Min. 60% as per IEC 61034-2 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
|---|
History
| Update and Revision | Revision Number: 0.58 Revision Date: 02-26-2026 |
|---|
