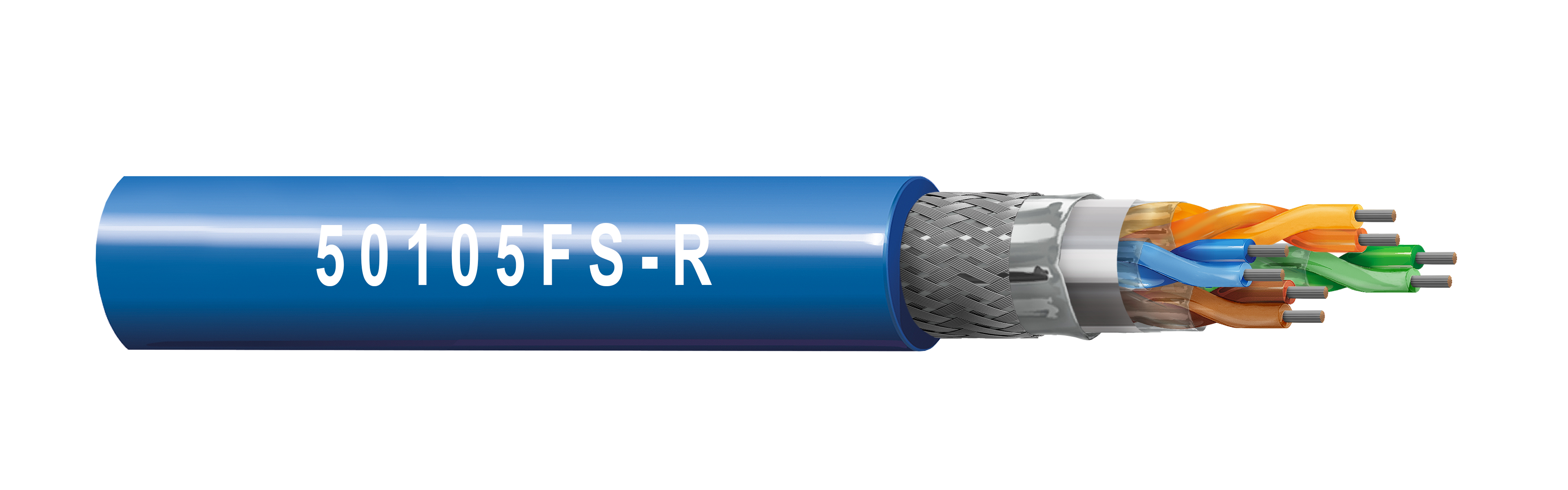

CC-Link IE High flex industrial CAT 5e SF/UTP Ethernet cable
High flex industrial Ethernet cable CAT5e,SF/UTP, 4x2x26AWG, Stranded Tinned-Copper Alloy, FEP insulation, Double shielding (Al/Mylar foil tape and tinned tinsel wire braid shield), FRPVC Jacket
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | BELDEN 50105FS-R 4x2xAWG26 is Category 5e high speed data transmission cable suitable for continuous flex applications and other moving machinery parts. Double shielding (Al/Mylar foil tape and tinned tinsel wire braid shield) provides excellent immunity from electromagnetic interference (EMI) and radio frequency interference (RFI). It is suitable for internal wiring and external interconnection of network devices (class2 circuits only) and meet UL VW-1-Vertical Wire flame test & UL 444 (CM) flame ratings. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 6.9 mm (0.27 in) |
|---|
Conductor
| Size | 26 AWG |
|---|---|
| Stranding | Stranded |
| Material | TCA - Tinned Copper Alloy |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Color Code | Blue & Light Blue, Orange & Light Orange, Green & Light Green, Brown & Light Brown |
Outer Shield
| Shield Type |
|---|
| Tape |
| Braid |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|
Electrical Characteristics
Electricals
| Max. Mutual Capacitance | 56 pF/m (17 pF/ft) |
|---|
Delay
| Max. Delay Skew | 45 ns/100m |
|---|
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|
| 1 | 3.1 | 65.3 | 62.3 | 63.8 | 60.8 | 20.0 |
| 4 | 6.1 | 56.3 | 53.3 | 51.7 | 48.7 | 23 |
| 8 | 8.6 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
| 10 | 9.7 | 50.3 | 47.3 | 43.8 | 40.8 | 25 |
| 16 | 12.4 | 47.2 | 44.2 | 39.7 | 36.7 | 25 |
| 20 | 13.9 | 45.8 | 42.8 | 37.8 | 34.8 | 25 |
| 25 | 15.6 | 44.3 | 41.3 | 35.8 | 32.8 | 24.2 |
| 31.25 | 17.6 | 42.9 | 39.9 | 33.9 | 30.9 | 23.3 |
| 62.5 | 25.5 | 38.4 | 35.4 | 27.9 | 24.9 | 20.7 |
| 100 | 33 | 35.3 | 32.3 | 23.8 | 20.8 | 19 |
Mechanical Characteristics
Temperature
| UL Temperature | -20°C to +80°C |
|---|
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor |
|---|---|
| Flammability / Reaction to Fire | UL1581 VW-1 Compliant, UL444 CM Compliant |
| TIA/EIA Compliance | ANSI /EIA-568.2-D(Category.5e) |
Product Notes
| Notes | Characteristic impedance: 85-115Ω (@100MHz), Capacitance unbalance: pair to ground 330 pF/100m Max.(1kHz), DC Resistance unbalance(Pair): 5.0 % Max. Double Screen: Al-PET foil and Tinned Tinsel braid, Trailing chain test: 20 million(R=38mm) ※, Torsion test: 20 million(±180°, L=300mm) ※, Reverse Bending Test: 20 million(R=40mm) ※ 20 million(R=40mm) ※ |
|---|
History
| Update and Revision | Revision Number: 0.22 Revision Date: 02-26-2026 |
|---|
