Product Number: 127953A

DataTuff® Cat 6, (4 pr) 23 AWG Solid BC, PP/PVC/Alum Armor/PVC, EtherNet/IP, Foil Shld, CMG CM, 600V AWM

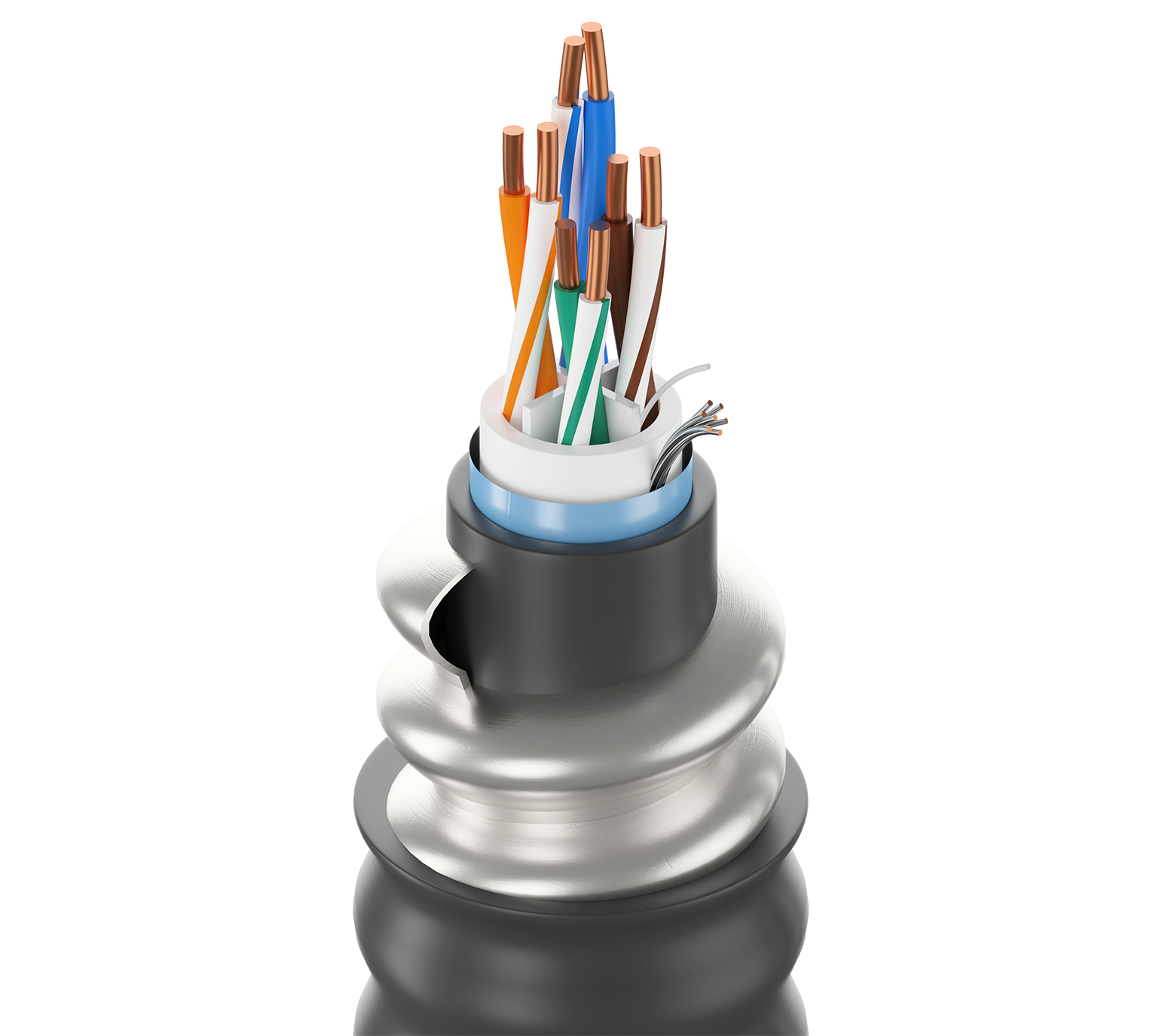

Four Cat 6 24 AWG Bonded-Pairs solid bare copper conductors, polypropylene insulation, FRPE spline center member, inner PVC jacket, overall Beldfoil® Shield (100% coverage), industrial grade oil- and UV-resistant PVC outer jacket, CMG CM

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Armored Ethernet applications, In Cable tray, in cabinet with high volt devices, such as motor control center, mining, outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. exposure to rodent, crush, or cut through force,

Construction Details

Bonded-Pair	Yes
Overall Cable Diameter (Nominal)	0.695 in (17.7 mm)

Conductor

Element	Pair(s)
Size	23 AWG
Stranding	Solid
Material	BC - Bare Copper

Insulation

Material	PO - Polyolefin
Color Code	White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.254 in (6.45 mm)
Ripcord	Yes

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Armor Thickness	0.025 in (0.64 mm)
Diameter Over Armor	0.595 in (15.1 mm)

Outer Jacket

Separator	Polyester Tape
Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.695 in (17.7 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR	82 Ohm/km (25 Ohm/1000ft)
Max. Capacitance Unbalance	330 pF/ft

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Max./Min. Input Impedance (unFitted) [Ohm]	Max./Min. Fitted Impedance [Ohm]
1	2.0 dB/100m	74.3	72.3	72.3	70.3	67.8	64.8	21	100 ± 15	100 ± 15
4	3.8 dB/100m	65.3	63.3	61.5	59.5	55.8	52.7	24	100 ± 15	100 ± 15
8	5.3 dB/100m	60.8	58.8	55.4	53.4	49.7	46.7	25.5	100 ± 15	100 ± 15
10	6 dB/100m	59.3	57.3	53.3	51.3	47.8	44.8	26	100 ± 15	100 ± 15
16	7.6 dB/100m	56.2	54.3	48.7	46.7	43.7	40.7	26	100 ± 15	100 ± 15
20	8.5 dB/100m	54.8	52.8	46.3	44.3	41.8	38.8	26	100 ± 15	100 ± 15
25	9.5 dB/100m	53.3	51.3	43.8	41.8	39.8	36.8	25.3	100 ± 15	100 ± 15
31.25	10.7 dB/100m	51.9	49.9	41.2	39.2	37.9	34.9	24.6	100 ± 15	100 ± 15
62.5	15.4 dB/100m	47.4	45.4	32	30	31.9	28.9	22.5	100 ± 15	100 ± 15
100	19.8 dB/100m	44.3	42.3	24.5	22.5	27.8	24.8	21.1	100 ± 15
155	25.2 dB/100m	41.5	39.5	16.3	14.3	23.9	20.9	19.8	100 ± 22
200	29.0 dB/100m	39.8	37.8	10.8	8.8	21.8	18.8	19	100 ± 22
250	32.8 dB/100m	38.3	36.3	5.5	3.5	19.8	16.8	18.3	100 ± 32

Voltage

UL Voltage Rating	300 V (CMR), 300 V (CMX)

Mechanical Characteristics

Max. Pull Tension	200 lbs (91 kg)
Bulk Cable Weight	164 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	-40°C to +75°C
Storage	-40°C to +85°C

Bend Radius

Stationary Min.	2.10 in (53.3 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Sunlight Resistance
Flammability / Reaction to Fire	UL 1685 (UL Loading)
NEC / UL Compliance	CM
CEC / C(UL) Compliance	CMG, HL, CSA CMG, HL, -40C.
Data Category	Category 6
TIA/EIA Compliance	ANSI/TIA-568.2-D Category 6
ISO/IEC Compliance	ISO/IEC 11801 Cat 6

History

Update and Revision	Revision Number: 0.131 Revision Date: 02-26-2026

Resources

Belden 127953A technical datasheet Belden Industrial Ethernet Cable Brochure Industrial Wire & Cable Solutions Belden Industrial Ethernet Cable Selector Belden Color-Coded Cable Ratings Sensor to Cloud
