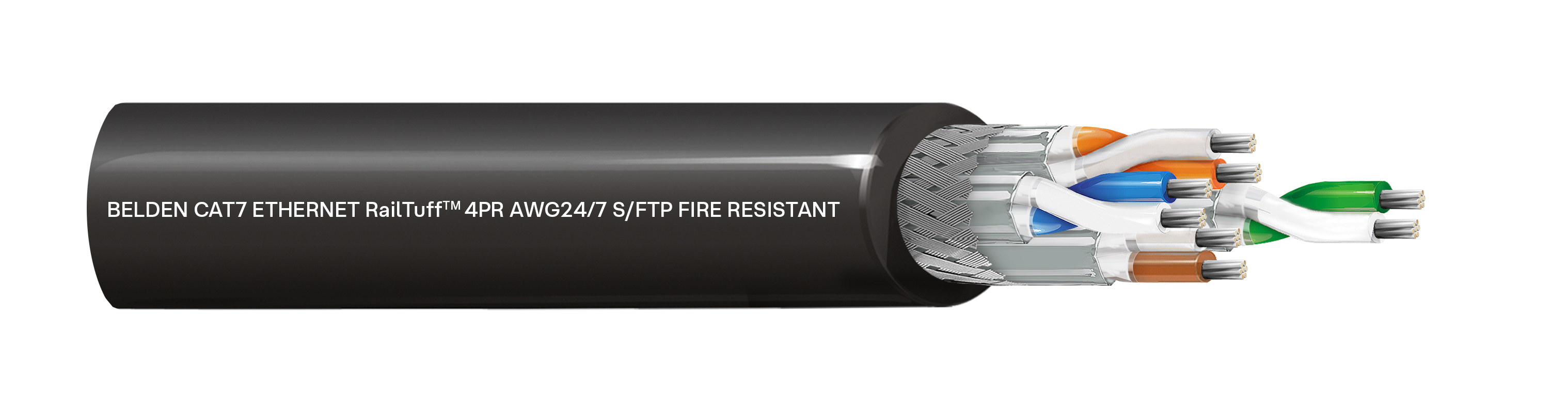

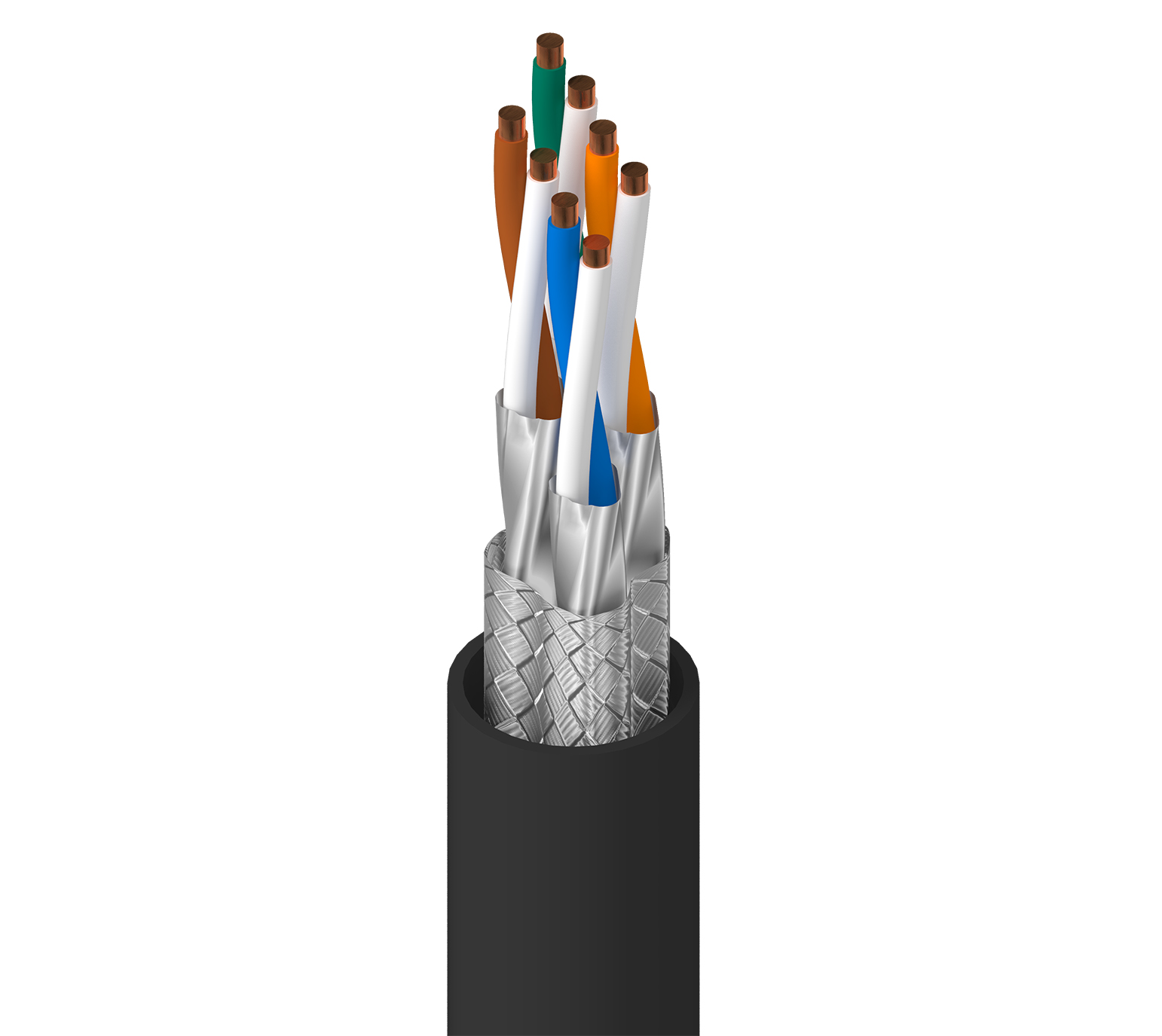

Industrial Ethernet CAT7 4PR Strand AWG24/7 S/FTP Fire Resistant
Industrial Ethernet CAT7, S/FTP, 4P24AWG/7, Tinned Strand copper Conductors, Foam Polyolefin Insulation, Individual Shielded Pair + Braid shield, LZSH Jkt, Fire Resistant, EN 50200, EN 50289-4-16 & IEC60331-23
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | This Category 7 Cable is a cable standard for Gigabit Ethernet, capable to continue transmitting data even when being directly attacked by fire. |
|---|
Construction Details
| Outer Jacket1 Table Notes | Outer Jacket Color: Grey (or per customer's request) |
|---|---|
| Overall Cable Diameter (Nominal) | 8.5 +/-0.3 mm |
Conductor
| Size | 24 AWG |
|---|---|
| Stranding | Stranded |
| Material | TC - Tinned Copper |
| No. of Pairs | 4 |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 1.23 mm (0.0484 in) |
| Color Code | 1. Blue & White , 2. Orange & White , 3. Green & White, 4. Brown & White , Wrap Tape 1: Mica Tape, Wrap Tape 2: PET Tape |
Inner Shield
| Element | Individual Shielded Pair |
|---|---|
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 80% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | 95@20°C( Ohm/km) |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Max. Delay Skew | 30 μs |
|---|
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|
| 1 | 4.0 dB/60m | 65.0 | 62.0 | 65.0 | 62.0 | 19.0 |
| 16 | 8.1 dB/60m | 65.0 | 62.0 | 57.5 | 54.5 | 18.0 |
| 100 | 20.8 dB/60m | 62.9 | 59.9 | 44.4 | 41.4 | 12.0 |
| 250 | 33.8 dB/60m | 56.9 | 53.9 | 37.8 | 34.8 | 8.0 |
| 500 | 49.3 dB/60m | 52.4 | 49.4 | 32.6 | 29.6 | 8.0 |
| 600 | 54.6 dB/60m | 51.2 | 48.2 | 31.3 | 28.3 | 8.0 |
Mechanical Characteristics
Temperature
| UL Temperature | -40°C to + 80°C |
|---|
Standards and Compliance
| Environmental Suitability | UV Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60331-23, IEC 60332-3-25, EN 50200 PH120 |
| Data Category | Category 7 |
| ISO/IEC Compliance | IEC 11801 |
| Other Standard Compliance(s) | EN 45545-2 (Class R14 HL 3) |
Product Notes
| Notes | Mechanical Characteristics: 1. IRM 902 Mineral oil resistance at 100°C for 72h: Tensile Strength (Mpa): ± 30% of original, Elongation (%): ±40% of original, 2. IRM 903 Fuel resistance at 70°C for 168h: Tensile Strength (Mpa): ± 30% of original Elongation (%): ± 40% of original, 3. N-Sodium hydroxide solution alkali resistance at 23°C for 168h:Tensile Strength (Mpa): ± 30% of original, Elongation (%): ≧ 100%, Ozone resistance at (0.025~0.03)%/25°C/24h:No crack. 4. Max application length: 60m |
|---|
