DataTuff® 7, 4PR #23 Sol BC, PO ins, S/FTP, PUR HF jkt, AWM 21292
DataTuff® 7, 4 Pair AWG 23 Bare Copper - Solid, Polyethylene insulation, S/FTP - Overall Braid / Individual Foil shielding, PUR Halogen Free jacket , AWM 21292
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
74004PU is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 74004PU.01B100 | Black | Flat Box | 100 m | 8719605013248 | Order online |
| 74004PU.01305 | Black | Reel | 305 m | 8719605013224 | Order online |
| 74004PU.01500 | Black | Reel | 500 m | 8719605013231 | Order online |
Specifications
Product Overview
| Suitable Applications | Cat7, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Construction Details
| Inner Shield Table Notes | Aluminum outside |
|---|---|
| Outer Jacket1 Table Notes | Flame Retardant Sheath |
| Overall Cable Diameter (Nominal) | 8 mm (0.31 in) |
Conductor
| Size | 23 AWG |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 1.45 mm (0.0571 in) |
| Color Code | White & Blue, White & Orange, White & Green, White & Brown |
Cable Core
| Description | 4 pairs twisted to cable core |
|---|
Inner Shield
| Element | Individual Shielded Pair |
|---|---|
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 65% |
Outer Jacket
| Material | PUR - Polyurethane (Halogen Free) |
|---|---|
| Nom. Diameter | 8 mm (0.31 in) |
Electrical Characteristics
| High Frequency Table Notes | Limits below 4 MHz are for information only.; Values at 1000 MHz are for information only. Reference standard: IEC 61156-5 |
|---|---|
| Transfer Impedance Class | Grade 1 |
| Screening Class | Type Ib |
| Screening Table Notes | Coupling Attenuation |
Electricals
| Max. Conductor DCR | 75 Ohm/km (23 Ohm/1000ft) |
|---|---|
| Max. Mutual Capacitance | 56 pF/m (17 pF/ft) |
| Max. Capacitance Unbalance | 160 pF/100m |
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Max. Delay Skew | 40 ns/100m |
|---|---|
| Nom. Velocity of Prop. | 60% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|---|---|
| 1 | 2 dB/100m | 78 | 75 | 74 | 71 | 78 | 75 | 20 |
| 4 | 3.7 dB/100m | 78 | 75 | 74.3 | 71.3 | 78 | 75 | 23 |
| 10 | 5.9 dB/100m | 78 | 75 | 72.1 | 69.1 | 75.3 | 72.3 | 25 |
| 16 | 7.4 dB/100m | 78 | 75 | 70.6 | 67.6 | 71.2 | 68.2 | 25 |
| 31.2 | 10.4 dB/100m | 78 | 75 | 67.6 | 64.6 | 65.4 | 62.4 | 23.6 |
| 62.5 | 14.9 dB/100m | 75.5 | 72.5 | 60.6 | 57.6 | 59.4 | 56.4 | 21.5 |
| 100 | 19 dB/100m | 72.4 | 69.4 | 53.4 | 50.4 | 55.3 | 52.3 | 20.1 |
| 125 | 21.4 dB/100m | 70.9 | 67.9 | 49.6 | 46.6 | 53.4 | 50.4 | 19.4 |
| 200 | 27.5 dB/100m | 67.9 | 64.9 | 40.4 | 37.4 | 49.3 | 46.3 | 16 |
| 250 | 31 dB/100m | 66.4 | 63.4 | 35.5 | 32.5 | 47.3 | 44.3 | 17.3 |
| 300 | 34.2 dB/100m | 65.2 | 62.2 | 31.1 | 28.1 | 45.8 | 42.8 | 17.3 |
| 600 | 50.1 dB/100m | 60.7 | 57.7 | 10.6 | 7.6 | 39.7 | 36.7 | 17.3 |
| 1000 | 66.9 dB/100m | 57.4 | 54.4 | 35.3 | 32.3 | 15.1 |
Transfer Impedance
| Frequency | Max. Transfer Impedance |
|---|---|
| 1 MHz | Max. 5 mOhm/m |
| 10 MHz | Max. 5 mOhm/m |
| 30 MHz | Max. 30 mOhm/m |
| 100 MHz | 100 mOhm/m |
Voltage
| UL Voltage Rating | 30 V RMS |
|---|---|
| Voltage Rating | 30 V AC |
Mechanical Characteristics
| Max. Pull Tension | 80 N (18 lbf) |
|---|
Temperature
| Operating | -40°C to +80°C |
|---|---|
| Installation | -5°C To +50°C |
| Storage | -40°C To +80°C |
Bend Radius
| Stationary Min. | 40 mm (1.6 in) |
|---|---|
| Installation Min. | 80 mm |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Sunlight Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-2-2 |
| AWM Compliance | AWM 21292 |
| IEEE Compliance | PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| Data Category | Category 7 |
| TIA/EIA Compliance | ANSI/TIA 568.2-D |
| ISO/IEC Compliance | ISO/IEC 11801-1 |
| CENELEC Compliance | EN 50173-1, Segregation class according EN50174-2 = d |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = Pass |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.239 Revision Date: 02-20-2026 |
|---|
Resources
Related category 7 cable
1885VNC
DNV GL, Shipboard, Category 7 Cable, 4 Pair, S/FTP, LSZH Indoor 60332-3-24, GHMT-PVP
23 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · LSZH - Low Smoke Zero Halogen (Flame Retardant)
50007TSF
MarineTuff Cat7 S/FTP, 4 Pr #23 Str BC, FMPE Ins, LSZH Jkt
23 AWG · BC - Bare Copper · PO - Polyolefin (Foam) · LSZH - Low Smoke Zero Halogen (Flame Retardant)
74004
XGIE, 4PR #26, Str, Polyethylene, Foam-Skin, 300 V RMS, CSA FT2
26 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PUR - Polyurethane (Halogen Free)

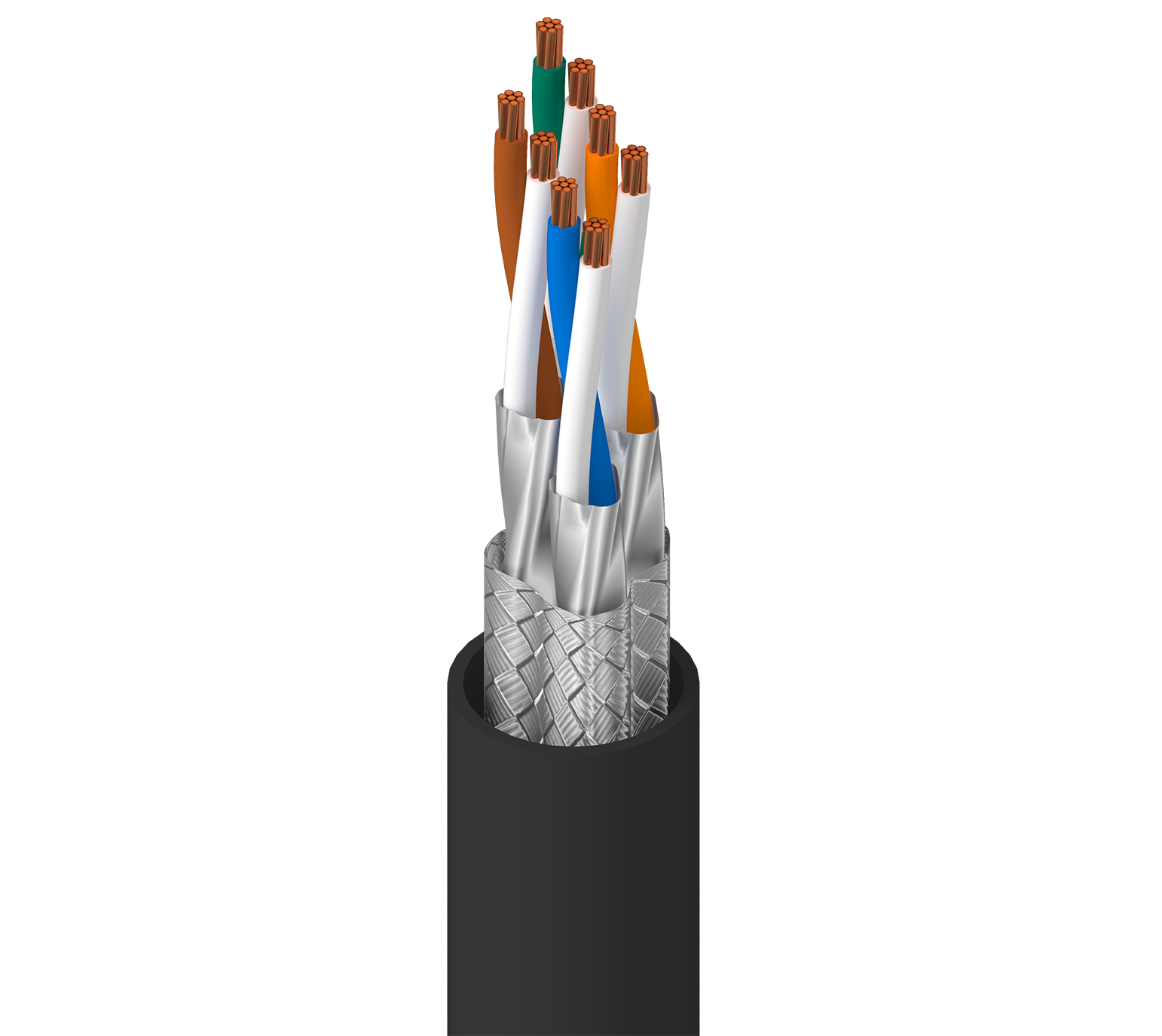

74005PU
